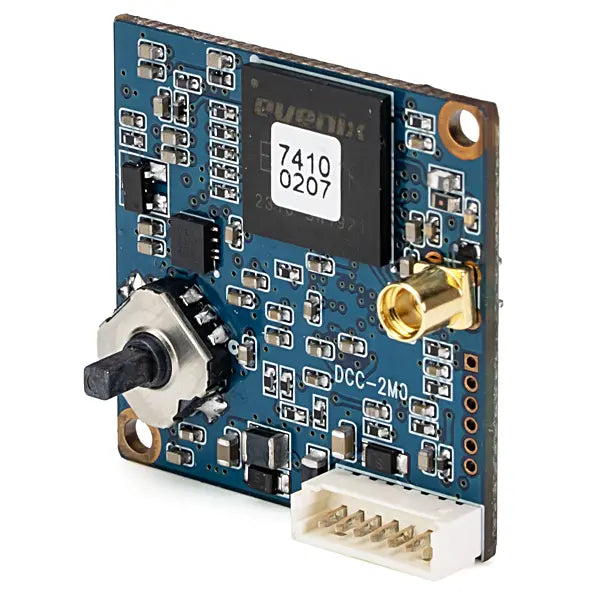

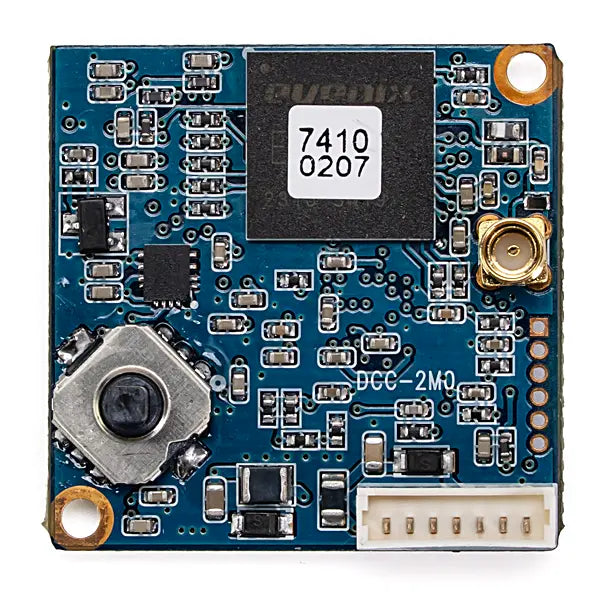

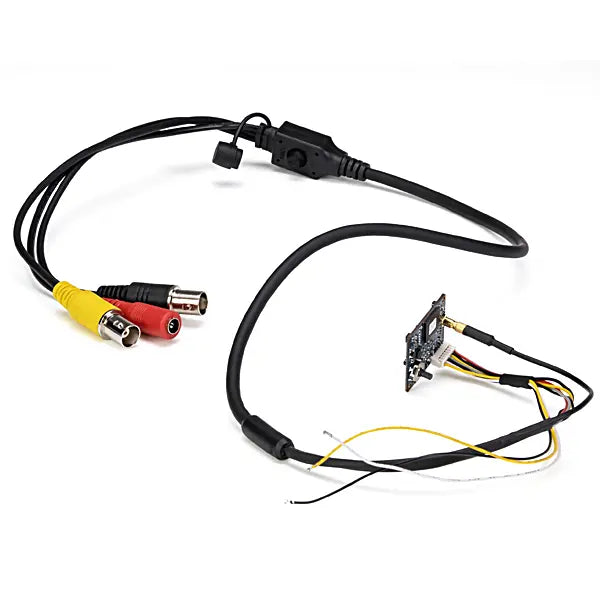

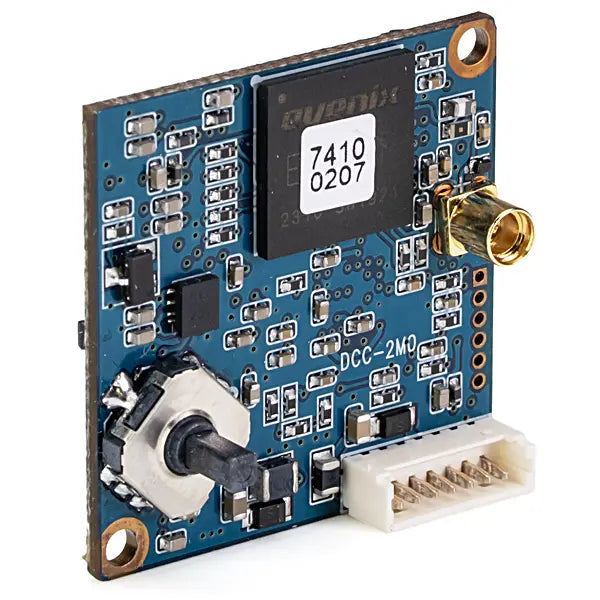

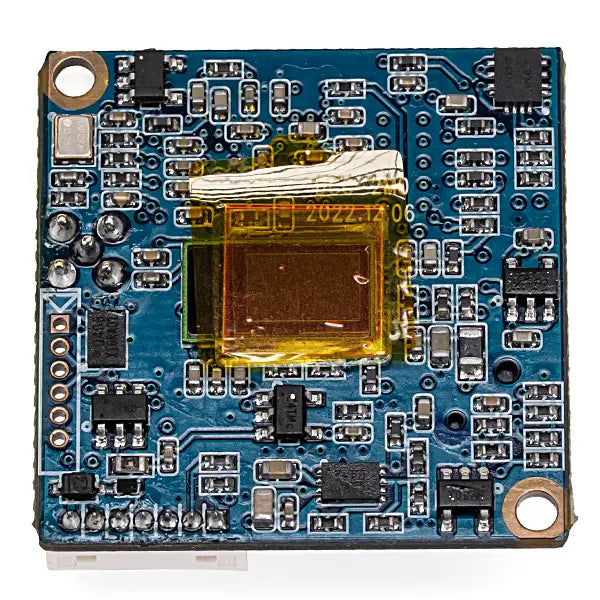

AR0234 Global Shutter 1080p 3G-SDI Board Camera - No Lens Mount

iShot Cameras Vendor Logo SKU: EM11631MFG: DCC-2M0

Fully Customizable
Fully Customizable

Built to solve your application

Live Customer Service
Live Customer Service

One-on-one support available

• Combined camera sensor + 3G-SDI Encoder
• 1/2.6" 2MP Onsemi AR0234 Color CMOS Sensor
• 26 x 22 mm Single Board
• Global Shutter Sensor
• No lens or lens mount included

Description

Details

The AR0234 Global Shutter 1080p 3G-SDI Board Camera (DCC-2M0) is the ideal choice for high-quality video requirements in security, surveillance, and industrial applications. Equipped with robust features, this module delivers outstanding video performance with customizable settings to meet the most demanding specifications.

Key Features:

  • Global Shutter: easily capture fast-moving objects without image distortion.
  • High Definition Outputs: Supports multiple resolutions, including 1080p60, 1080i60, and 720p options, ensuring clear and detailed imagery suitable for a variety of applications.
  • Advanced Communication Options: Featuring UART with 3.3V TTL for seamless integration and control, enabling efficient remote handling and configuration.

Enhanced Functionality:

  • Customizable Settings: Extensive setup menu options including image adjustments, system configurations, motion detection settings, privacy zones, and more, all tailored to enhance operational efficiency and customization.
  • Multiple Language Support: Interface available in English, Chinese (Simplified and Traditional), Japanese, and Korean, making this module versatile across global installations.
  • Flexibility in Connectivity: Offers settings for SDI modes including 3G-SDI and EX-SDI, ensuring compatibility with existing and new video infrastructure.
  • Variable Frame Rate Control: Selectable frame rates for varying stream quality requirements, providing flexibility in balancing video quality and bandwidth usage.

Upgrade your video capabilities with the AR0234 Global Shutter 1080p 3G-SDI Board Camera (DCC-2M0) from InterTest, Inc. Whether upgrading your security system or integrating new industrial UAV technology, the DCC-2M0 provides a sophisticated solution designed to deliver high performance and customization.

Specifications

Active Pixels 2.07MP [1920 (H) x 1080 (V) pixels]
Shutter Type Global
Scanning System 16:9 Progressive
Minimum Illumination 0.5Lux (F2.5 - 30IRE), 0.0015Lux (DSS on)
Video Output 1080p@25/30/50/60, 1080i @50/60, 720p@25/30/50/60
Lens Mount N/A
White Balance AUTO, AUTOext, Preset, Manual
Day/Night Mode Auto, Color, B&W, Ext.
Shutter Speeds 1/25(30)~1/30,000 sec
Protocols 3G-SDI
Video Codec Uncompressed Digital
Optional Video Output Analog (AHD or CVBS)
Supply Voltage DC5V-12V
Power Consumption Less than 1.6 Watts (130mA)
Operating Temperature -10°C ~55°C (Humidity: 0% ~ 90% RH)
Dimensions 27.4mm (W) x 27.4mm (D) - 1 board
Weight 4g (without OLPF)


Downloads

AR0234 Global Shutter 1080p 3G-SDI Board Camera Product Brief
