The Cavitar C400-H Weld Training Kit - Weld Mentor is a complete, ready-to-use weld visualization solution that includes a specialized weld camera integrated with a high-load articulating arm camera mount, a rugged tablet with an ergonomic positional arm, and multiple cable port adapters for plug-and-play functionality. This weld monitoring system is easy to set up and versatile, suiting weld education & demonstration, quality assurance, machine vision, content creation, and welding research applications.

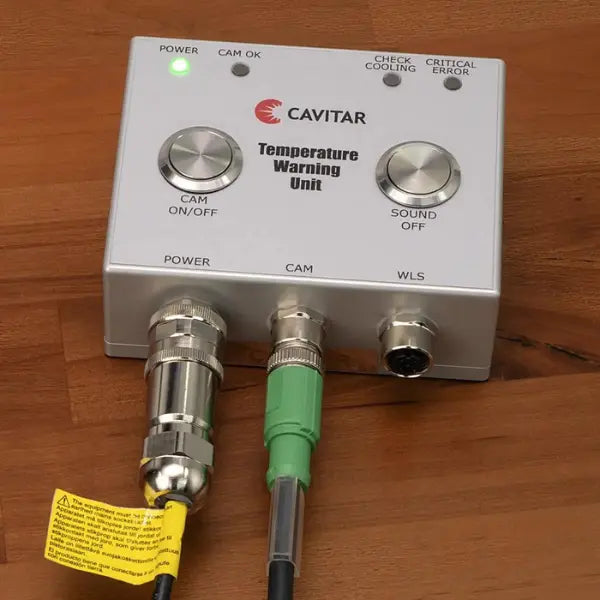

The Cavitar C400-H Camera provides precise, high-resolution (1440 x 1080) pixel visuals of standard welding methods and effectively handles all primary beam welding procedures. The camera is integrated with laser illumination and cooling systems for high-temperature applications. The adjustable optics allow the camera to be tuned in an application-specific implementation for the specific job. The camera is compatible with interchangeable lens covers in glass and plastic, allowing for regular replacement to maintain consistently precise imaging.
The high-load articulating arm camera mount allows dynamic maneuverability with a 90° pivotable arm, 360° rotatable ends, and 5/8" studs on ball joints with 3/8-16 and 1/4-20 thread mounts. This mount can clamp on poles, bars, tables, benches, or desks with a 0.5" - 2" jaw range. This articulating arm allows for a one-time alignment and eliminates the need for future adjustments while consistently capturing the precisely angled view.

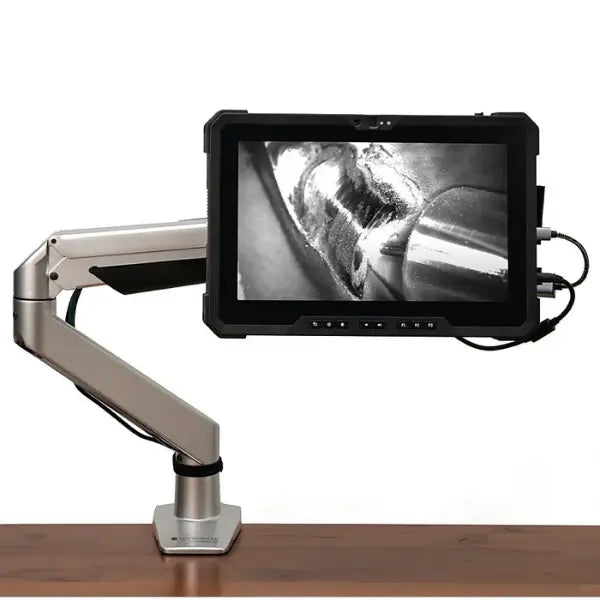

The Dell Latitude 7220 11.6" Full HD Rugged Tablet is built to withstand and operate inside industrial welding environments. This tablet is equipped with the Cavitar Welding Camera Software and has a touchscreen and stylus capabilities. It also offers keyboard compatibility for enhanced functionality. The DELL 7220 VESA Mount Adapter Plate integrates with the articulating mount for tablet PC, giving the tablet versatile positioning options for optimal use. This package also features a custom-engineered cable shield to prevent tension on the cables while keeping them well-maintained.
The BENFEI USB C to HDMI Adapter, and the TP-Link USB 3.0 to Ethernet Adapter, are incorporated for seamless plug-and-play capabilities. The USB C to HDMI adapter allows for video to be broadcast on larger viewing devices, while the USB 3.0 to Ethernet adapter ensures a consistent, reliable connection to the internet.
KEY POINTS FOR EDUCATORS
-
Demos can be live or recorded, allowing for a more efficient workflow in a class setting
-
Multiple people have the potential to view the welding process at the same time, and recorded instructional videos can be replayed
-
Higher quality instruction can be shown from valuable vantage points that demonstrate the placement and pacing of the torch, flow of the bead, and alignment of the wire
-
Show the base metal, puddle, and tip for comprehensive teaching
-
Plug and Play system that promotes easy setup
Specifications
Cavitar C400-H Camera
|
Description |
4th generation compact |
|
Main applications |
GMAW, TIG, Plasma, Robotic, Additive Manufacturing |
|
Signal System |
GigE |
|
Picture |
Monochrome |
|
Camera Unit |
Cavitar C40-H Camera |
|
Max resolution (pixel) |
1440 x 1080 |
|
Max frame rate (fps)(1) |
70(2) |
|
Working distance (mm) |
150...300 |
|
Field of view (mm2): |
|
|
working distance 150 mm |
28 x 21 |
|
working distance 200 mm |
40 x 30 |
|
working distance 250 mm |
51 x 38 |
|
working distance 300 mm |
62 x 47 |
|
Size (WxHxL, mm) |
38 x 48 x 99 |
|
Weight (g) |
350 |
|
Laser Unit |
Integrated |
|
Laser wavelength (nm) |
640 |
|
Laser class |
3R |
|
Camera interface |
Gigabit Ethernet |
|
Gigabit Ethernet connector |
M12, X-coded |
|
Power & IO connector |
M12 |
|
Cooling options |
Passive: heatsink, heat conduction Active: air, liquid |
(1) At full resolution, dependent on computer performance
(2) Up to 500 fps with reduced resolution (720 x 540 px) with a high-speed version having a USB3 interface.
All values are approximated. The design working distance is 200 mm.
Articulating Arm Camera Mount
|
Description |
High-Load Articulating Arm Mount is designed to hold any InterTest, Inc. camera in place for various applications |
|
Max Load |
11lbs Cavitar C400-H Welding Camera Weight: 350g |
|
Max Length |
20" Maximum Length |
|
Jaw Range |
0.5" to 2.0" |
|
Arm Description |
Fully articulating arm with 90° pivotable and 360° rotatable ends, and 5/8" studs on ball joints with 3/8-16 and 1/4-20 thread mounts |
|
Material |
Aluminum and stainless steel construction |
Dell Latitude 7220 11.6" Full HD Rugged Tablet
|
Processor |
8th Gen Intel® Core™ i5-8365U (6 MB cache, 4 cores, 8 threads, up to 1.60 GHz Turbo, 15 W) |
|
Operating System |
Windows 10 Pro (Windows 11 Pro license included), English, French, Spanish |
|
Graphics Card |
Intel® Core™ i5-8365U, 16 GB memory, Intel® Integrated graphics 620 with u-blox NEO-M8 GPS card |
|
Memory |
4-core 16 GB, LPDDR3, 2133 MHz, integrated |
|
Hard Drive |
Intel® Core™ i5-8365U, 16 GB memory, Intel® Integrated graphics 620 with u-blox NEO-M8 GPS card |
|
Screen |
11.6-inch touch display Full HD (1920 x 1080) WLAN Chassis No NFC 11.6 FHD 1000 nit Outdoor-Readable Glove-Capable Touchscreen w/Gorilla Glass |
|
Ports |
1 USB 3.1 Type-A with Power Delivery 1 USB 3.0 Type-C™ port with DisplayPort Alt Mode/PowerShare 1 Combo Mic/Headphone Jack 1 Mini Serial RS-232 port 1 Docking Pogo connector 1 Backpack Pogo connector (Optional) |
|
Dimensions & Weight |
Front Height: 7.99 in. (203 mm) Rear Height: 8.23 in. (209 mm) Width: 12.29 in. (312.20 mm) Depth: 0.96 in. (24.40 mm) Lowest Weight: 2.93 lbs. (1.33 kg) Max Weight: 3.31 lbs. (1.50 kg) |
|
Chassis |
WLAN Chassis, 11.6-inch, FHD 1920 x 1080, Outdoor-Readable, Glove-Capable Touchscreen with Gorilla Glass WLAN/WWAN Chassis, 11.6-inch, FHD 1920 x 1080, Outdoor-Readable, Glove-Capable Touchscreen with Gorilla Glass |
|
Wireless |
Intel® Wi-Fi 6 AX200 802.11ax, upto 2.4Gbps (with Bluetooth) |
|
Primary Battery |
2 Cell, 34 Wh, Lithium Ion, 3-year warranty |
Articulating Mount for Tablet PC
|
Hole Layout |
28.6 mm x 104 mm |
|
Max Weight |
10lbs |
|
Lift |
340mm |
|
Tilt |
+75°~ -30° |
|
Swivel |
±90° |
|
Pivot |
±90° |
Items Included
- EM13110 - Cavitar C400-H Welding Camera System
- EM15359 - Cavitar C400-H 1/4-20 Mounting Plate Kit
- EM10099 - High-Load Articulating Arm Camera Mount
- EM64874 - Rugged Tablet for Cavitar Welding Camera
- EM62869 - TP-Link USB 3.0 to Ethernet Adapter
- EM62870 - BENFEI USB C to HDMI Adapter (Auxiliary video output)
- EM62662 - Articulating Mount for Tablet PC
- EM1719300 - DELL 7220 VESA Mount Adapter Plate
- Cavitar Capture Software and Operation Manual
- Hex key (1.5 mm) for working distance screws (K030)
- 24V DC Power Supply (E016)
- 2 meter Power Supply Cable (G001)
Downloads
Cavitar External COM Control Guide
