Description
Details

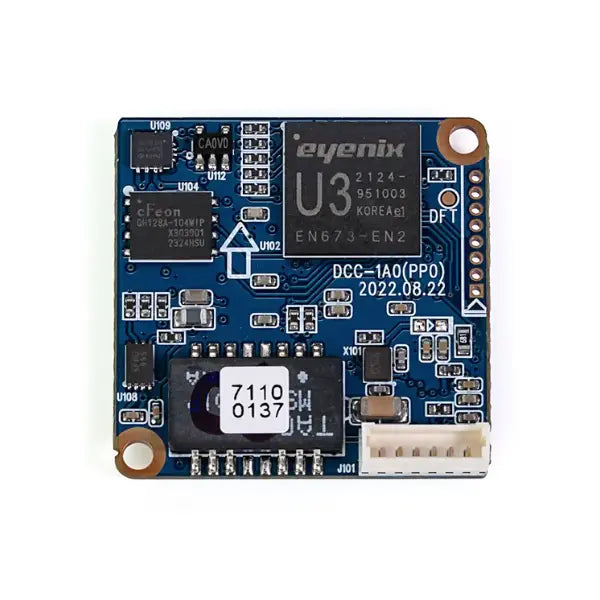

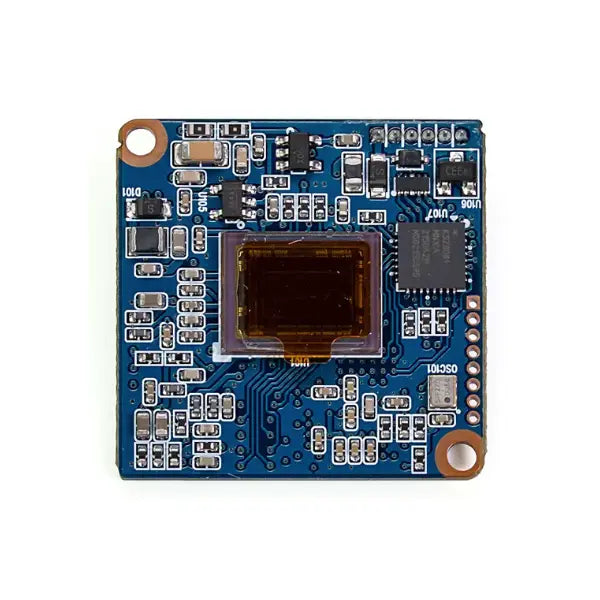

The compact IP Board camera, Parantek's Compact IMX327 1080p IP Board Camera, captures every detail with unparalleled clarity. With built-in IP network capability, this camera offers seamless integration into your existing network, facilitating easy setup and flexible deployment options using standard video codecs like H.264 and MJPEG.
Including the powerful Sony Starvis IMX327 1/2.8" CMOS sensor, this IP board camera produces up to Full HD (1920 x 1080p resolution, 2.9μm pixel size, progressive scan) high-quality imaging to not miss any details. *There is no lens mount on this model, but let InterTest help you design and manufacture a custom housing and lens mounting feature ideal for your vision application.
Other key features include a minimum illumination of 0.1 lux, wide dynamic range, an easy-to-use webpage viewer, ultra-compact dimensions of 28 x 28 mm W x H, and a lightweight payload of only 4.5 grams without a lens.
Perfect for:
or wherever there is a need for highly detailed imaging with small weight and form factor requirements.
Specifications
|
Base Model |
DCC-1A0 |
|
Active Pixels |
2.12 MP (1937 (H) x 1097 (V) pixels) |
|
Scanning System |
Progressive scan (16:9) |
|
Minimum Illumination |
0.1 lux, 0.003 lux (DSS ON) |
|
Video Output |
Up to 30fps @ 1920 x 1080p (1920x1080, 1280x720, 800x600, 704x480, 704x400, 640x480, 640x360, 320x240) |
|
Lens Mount |
N/A (Needs a housing with a lens holder) |
|
White Balance |
AUTO, AUTOext, Preset, Manual |
|
Day/Night Mode |
Auto, Color, B&W |
|
Shutter Speed |
1/25(30)~1/30,000 sec |
|
Network Protocol |
TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HPP, DHCP, FTP, SMTP, DNS, DDNS Onvif 17.06 Compatible |
|
Video Codec |
H.264, MJPEG (Duplex Streaming) |
|
Supply Voltage |
DC12V / POE |
|
Power Consumption |
Less than 1.6 Watts (130mA) |
|
Operating Temperature |
-10°C ~55°C (Humidity: 0% ~ 90% RH) |
|
Dimensions (mm) |
27.4 x 27.4mm, 1 board |
|
Weight (g) |
4 g (without OLPF) |
Downloads
Compact IMX327 1080p IP Board Camera - 28x28mm No Lens Mount Specification Sheet
