Description
Details

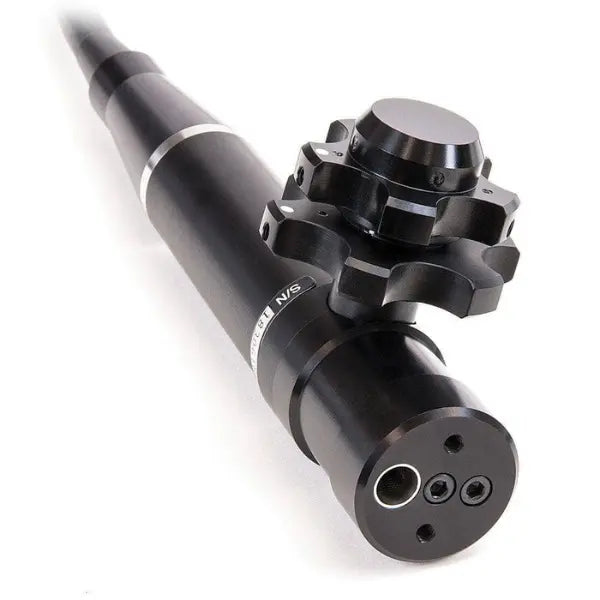

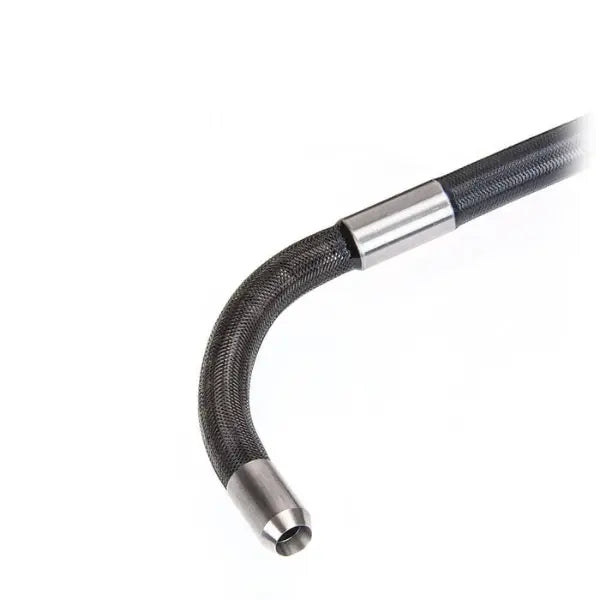

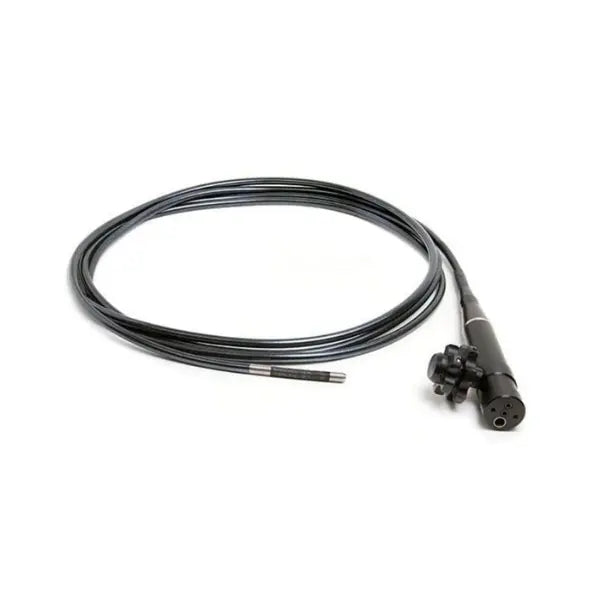

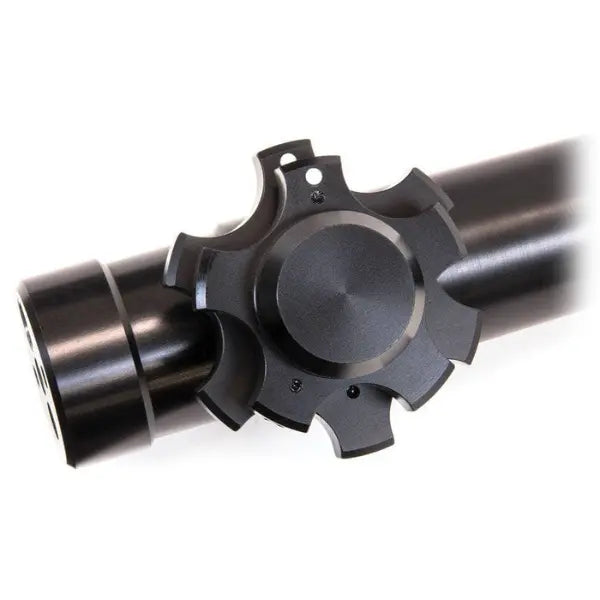

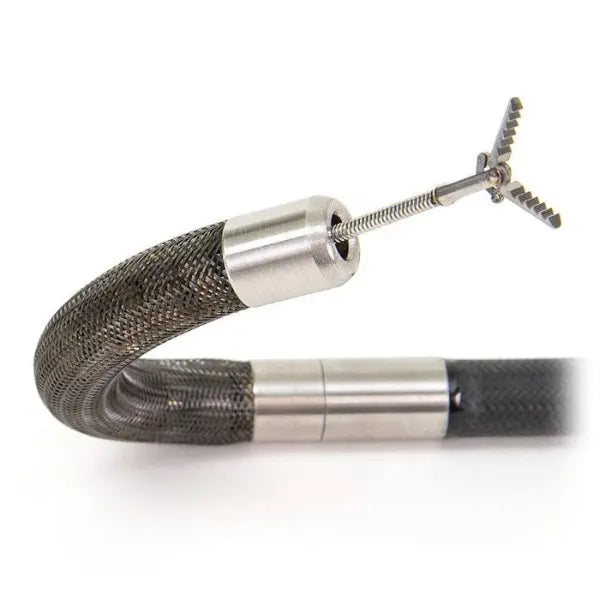

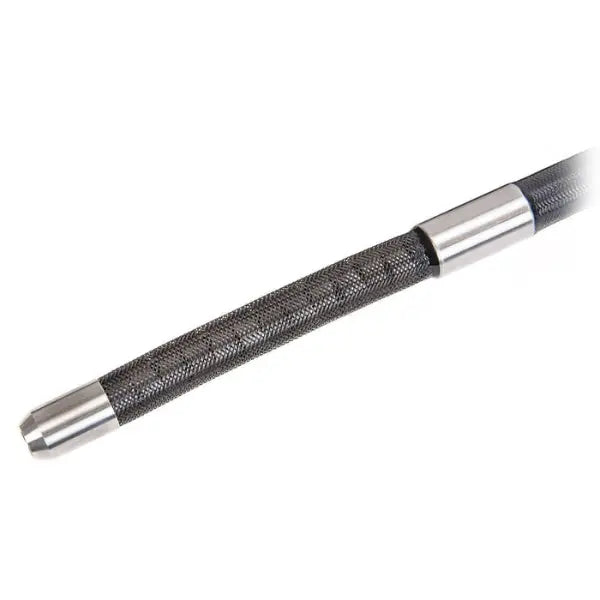

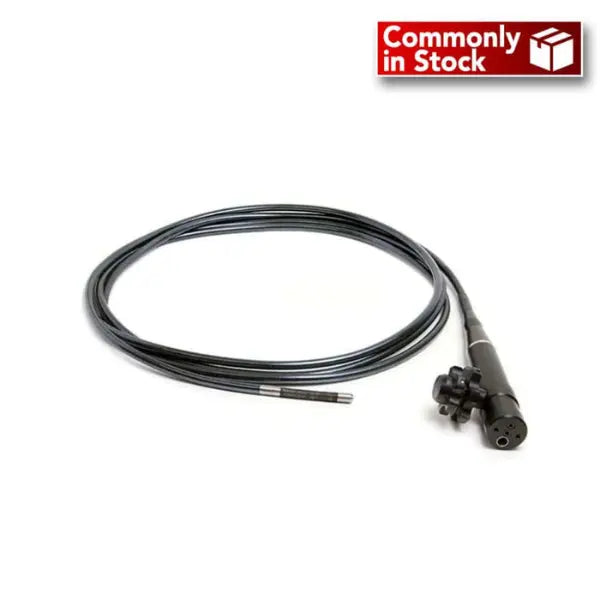

The iGrab™ 12.7mm articulating guide tube series allows distal tip directional manipulation of retrieval tools or video scopes. Maneuver the end of retrieval tools, such as the iGrab™ Manual FOD Retrieval Tool Kit, or videoscopes, like the Yateks G Portable Series Videoscopes, for thorough visual inspection and retrieval (FOSAR). The articulating distal tip is controlled by a handset equipped with two knobs allowing for movement up to 90º in 4 directions.
Specifications
| Outer Diameter | 12.7 mm |
| Length | 8, 12, & 18 feet |
| Articulation | 4-Way |
| Working Channel | 6.3 mm |
| Articulation Ranges (varies with length) |
8 ft = 140⁰ to 160⁰ 12 ft = 140⁰ to 160⁰ 18 ft = 120⁰ 25 ft = 100⁰ to 120⁰ |
| Inner Layer | Stainless Steel |
| Second Layer | Urethane |
| Shipping Weight | 20 lbs |
| Shipping Dimensions | 26" x 26" x 8" |
