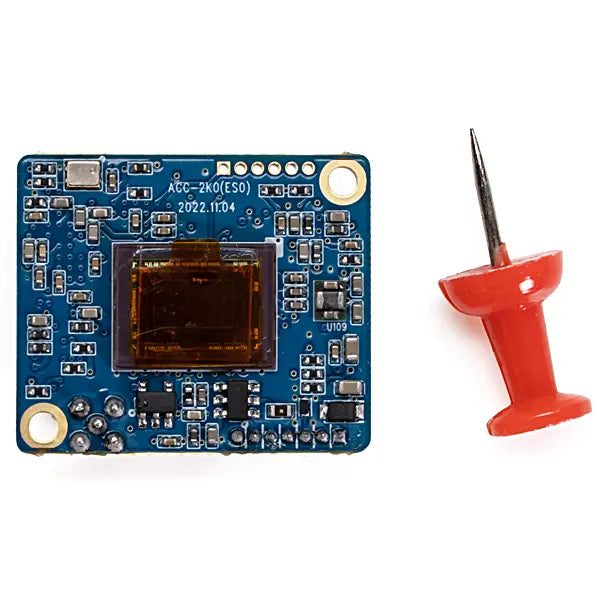

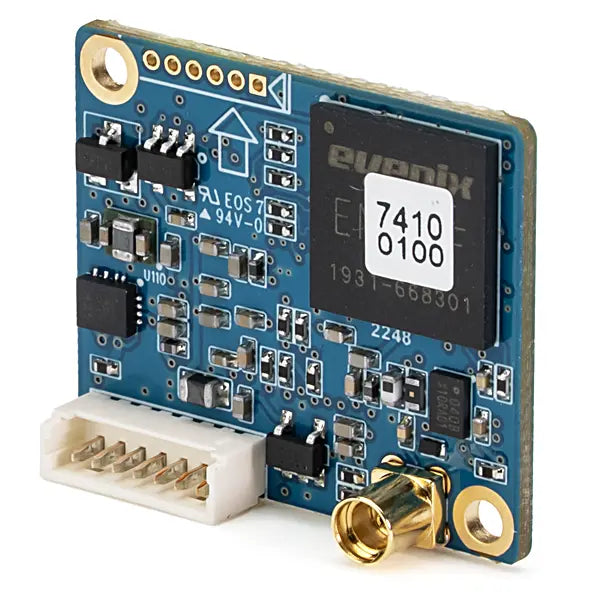

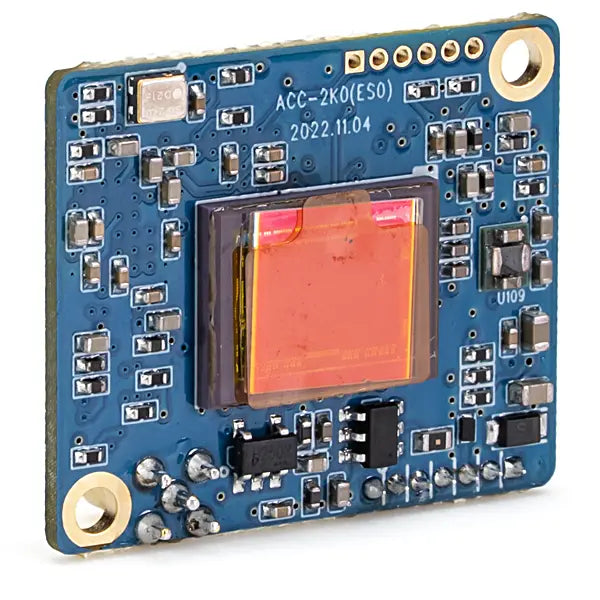

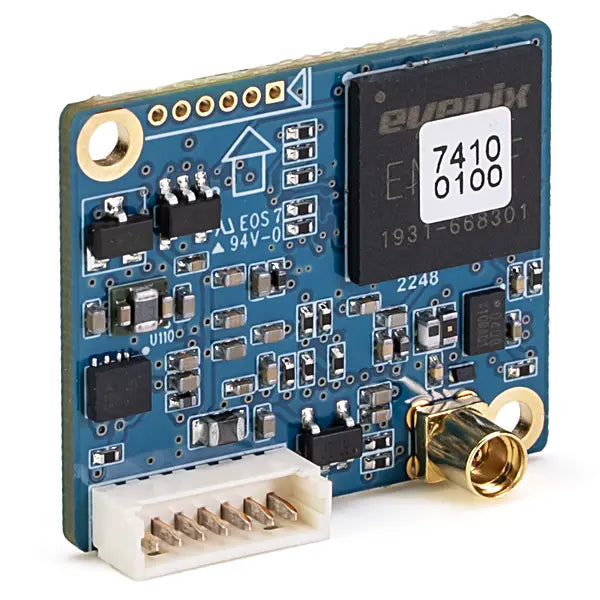

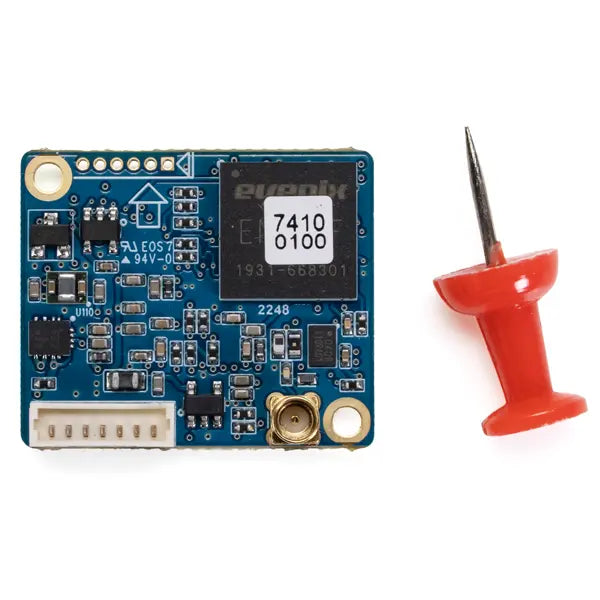

Discover superior surveillance and robotic vision performance with the IMX327 1080p 3G-SDI Board Camera (DCC-2K0), a precise yet flexible vision solution for applications demanding high-quality video surveillance with comprehensive control over image parameters. Ideal for surveillance
Key Features:
- Exquisite Image Control: Dial in the perfect settings with a rich array of options including brightness, sharpness, color gain, and gamma adjustments. With the DCC-2K0, you're in full control of the image output, ensuring optimal performance in various lighting conditions.
- Advanced Exposure Settings: From manual shutter adjustments to Sens-Up enhancement for low light conditions, the DCC-2K0 offers extensive exposure customization, including AGC (Automatic Gain Control) and a selectable range of shutter speeds from 60 to 25.6K.
- Dynamic Imaging Features: Engage powerful imaging functionalities like Wide Dynamic Range (WDR), day-and-nightNight transition thresholds, and Digital Noise Reduction (DNR) for crisp, clear video in any scenario. Adding Digital Zoom, Mirror, and Flip capabilities allows for versatile scene capture.
- Robust White Balance and Color Control: Ensures natural colors under various lighting conditions with automatic, preset, or manual white balance settings and a comprehensive color gain adjustment range. The module also offers detailed control over red and blue gain, tailored for precision color balancing.
- Enhanced Visibility Modes: Utilize features like Defog and High Light Compensation (HLC) to overcome challenging visibility conditions. With adjustable intensity levels, these functionalities enhance image clarity in foggy environments or scenes with strong backlighting.
- Adaptable Day & Night Functionality: Depending on illumination levels, automatically or manually switch between color and B&W modes to maintain consistent surveillance effectiveness 24/7. Adjust the transition thresholds and delay times for tailored day-to-night performance.
Versatile Connectivity:

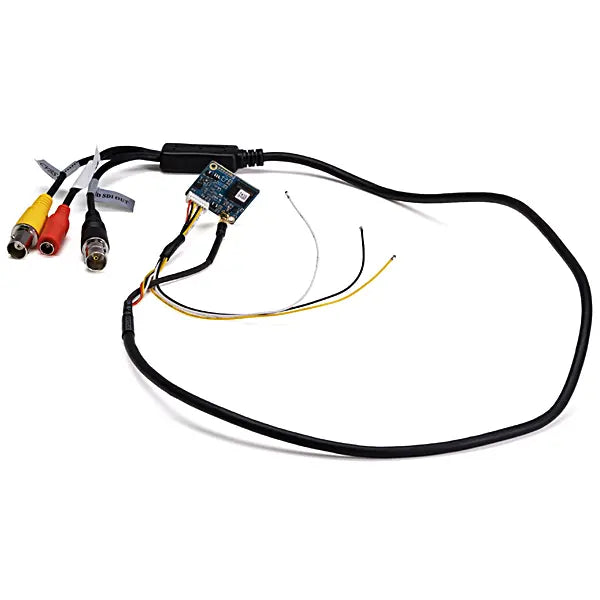

The IMX327 1080p 3G-SDI Board Camera seamlessly integrates into your surveillance setup with options for various cable connections, emphasizing ease of deployment and operational efficiency.
Customizable Image Settings:
- Shading Compensation
- Level and Weight Adjustments for Precision Tuning
- Burst Mode for Detailed Image Capture
- Adjustable Sharpness, Gamma, and ACE for Refined Image Processing
- Flexible Screen Positioning with H/V Position and Size Adjustments
- Customizable Color Palettes for On-screen Display
Ideal for Professional Surveillance:
Designed for use in a wide range of surveillance and robotic vision (ground and UAV) applications, the IMX327 1080p 3G-SDI Board Camera excels in environments where detailed image customization and high-quality video are paramount.
Elevate your surveillance and UAV capabilities with the IMX327 1080p 3G-SDI Board Camerato to ensure unparalleled video performance and adaptability.
Specifications
| Active Pixels | 2.12MP [1937 (H) x 1097 (V) pixels] |
| Shutter Type | Rolling |
| Scanning System | 16:9 Progressive |
| Minimum Illumination | 0.1Lux (F2.5 - 30IRE), 0.0003Lux (DSS on) |
| Video Output | 1080p@25/30/50/60, 1080i @50/60, 720p@25/30/50/60 |
| Lens Mount | N/A |
| White Balance | AUTO, AUTOext, Preset, Manual |
| Day/Night Mode | Auto, Color, B&W |
| Shutter Speeds | 1/25(30)~1/30,000 sec |
| Protocols | 3G-SDI |
| Video Codec | Uncompressed Digital |
| Optional Video Output | Analog (AHD or CVBS) |
| Supply Voltage | DC5V |
| Power Consumption | Less than 1.4 Watts (280mA) |
| Operating Temperature | -10°C ~55°C (Humidity: 0% ~ 90% RH) |
| Dimensions | 26mm (W) x 22mm (D) - 1 board |
| Weight | 3.5g (without OLPF) |
