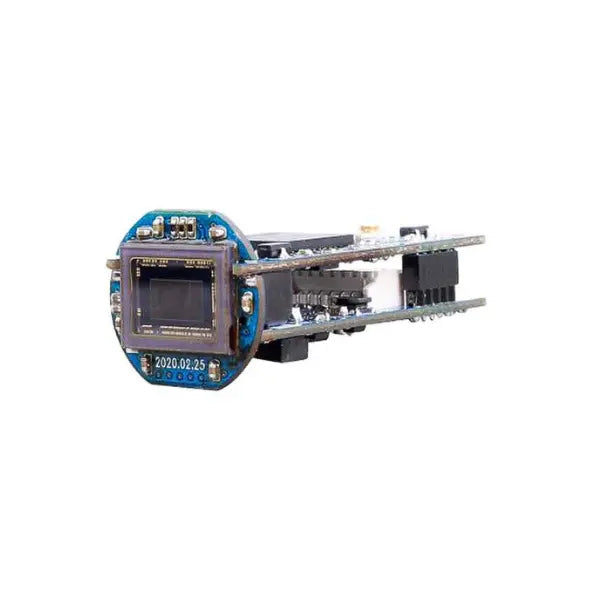

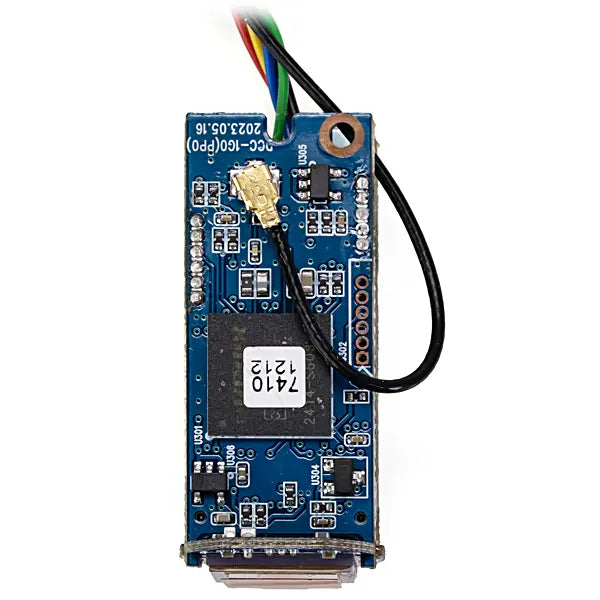

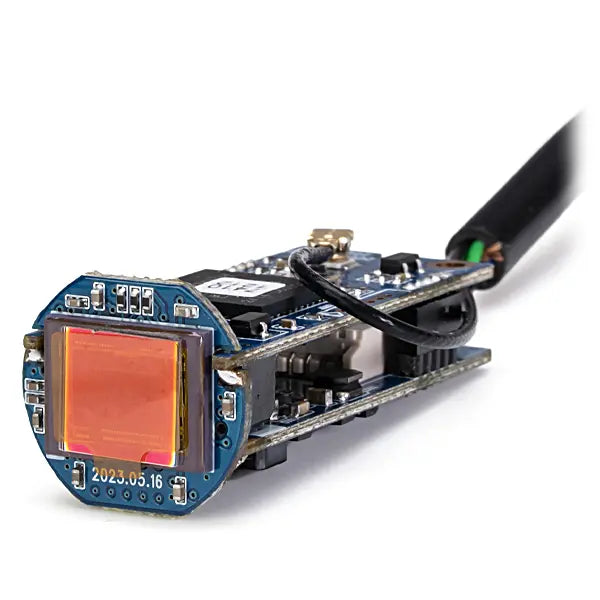

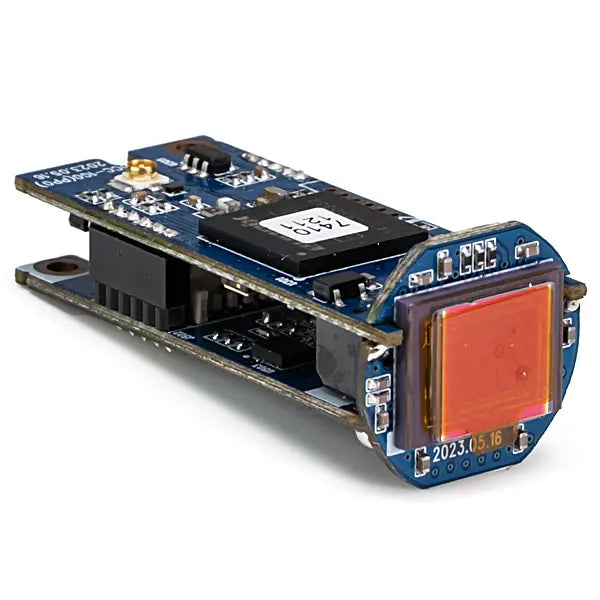

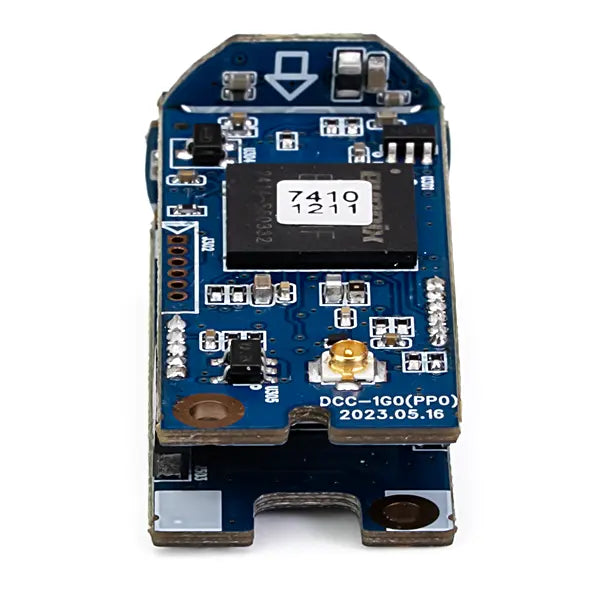

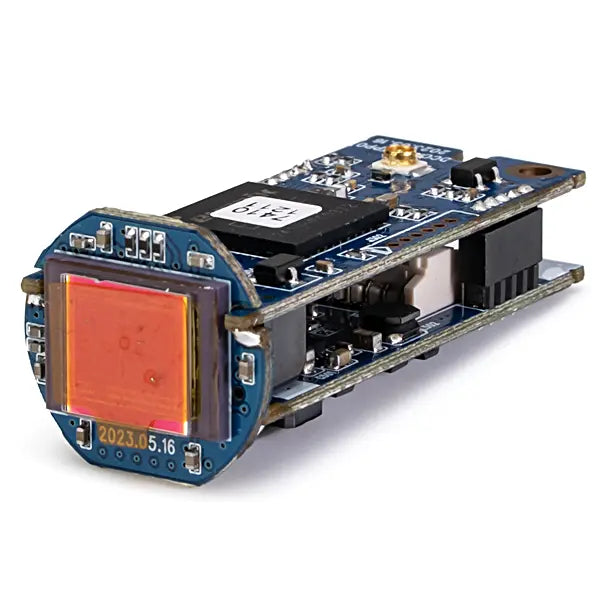

The IMX327 1080p 3G-SDI Cylindrical board camera (DCC-1G60) is a compact, powerfully engineered component for seamless integration into advanced surveillance and robotic vision systems. Utilizing a cutting-edge 1/2.8" 2.9μm Pixel Progressive Sony Starvis CMOS Sensor, this module delivers crystal-clear 2.12 MP resolution in a 3G-SDI or analog output, ensuring maximum detail in video recordings up to 1080p (1920x1080).
Key Features:
- Sensor: 1/2.8”(D-6.46mm) 2.12M Sony CMOS Sensor for superior image quality in various light conditions.
- Scanning System: Progressive Scan (16:9), providing smooth and clear images of moving objects.
- Resolution: Supports up to 30fps @ 1920x1080p, capturing every moment in full HD.
- Connectivity: Dual video outputs of either 3G-SDI or Analog CVBS.
- Lens Compatibility: Fixed IRIS Lenses mountable with miniature camera housings, offering versatility in lens selection. (Note: Lens mount and OSD is an option, requiring a case with a lens holder).
- Advanced Features: Wide dynamic range (WDR), DSS, and 3D-NR for improved image quality under varied environmental conditions. Also supports Motion Detection (4 Zones), Privacy Mask (8 Zones), and Defog.
-
Dimensions & Build: Compact design featuring 17mm Ø 3-boards configuration.
Lightweight at 4.5 g (without OLPF), ensuring minimal impact on system design.
PCB thickness at 1.0mm, designed for durability.
The IMX327 1080p IP Cylindrical board camera (DCC-1G60) from InterTest, Inc., is your solution for integrating advanced video capabilities into your surveillance and robotic vision systems over composite 3G-SDI. It's built for flexibility and supports a range of applications, from industrial monitoring to security surveillance, where clear and detailed video footage is critical.
Specifications
| Active Pixels | 2.12MP [1937 (H) x 1097 (V) pixels] |
| Shutter Type | Rolling |
| Scanning System | 16:9 Progressive |
| Minimum Illumination | 0.1Lux (F2.5 - 30IRE), 0.0003Lux (DSS on) |
| Video Output | 1080p@25/30/50/60, 1080i @50/60, 720p@25/30/50/60 |
| Lens Mount | N/A |
| White Balance | AUTO, AUTOext, Preset, Manual |
| Day/Night Mode | Auto, Color, B&W, Ext. |
| Shutter Speeds | 1/25(30)~1/30,000 sec |
| Protocols | 3G-SDI |
| Video Codec | Uncompressed Digital |
| Optional Video Output | Analog (AHD or CVBS) |
| Supply Voltage | DC5V-12V |
| Power Consumption | Less than 1.6 Watts (130mA) |
| Operating Temperature | -10°C ~55°C (Humidity: 0% ~ 90% RH) |
| Dimensions | 17mm OD x 37.7mm - 3 boards |
| Weight | 4.5g (without OLPF) |
