Description
Details

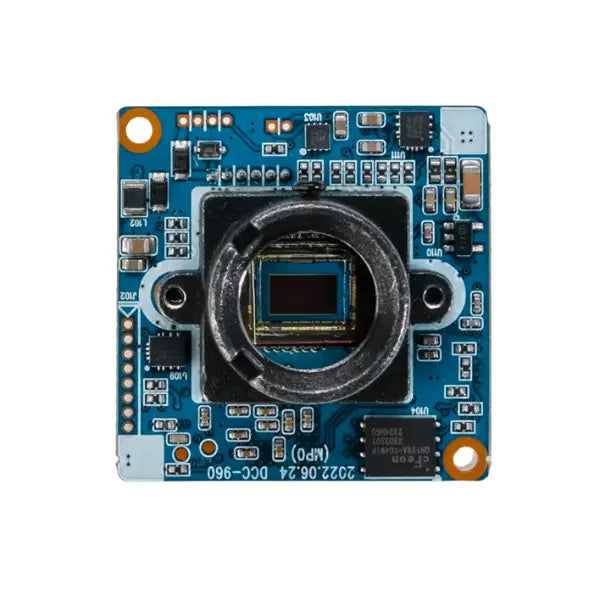

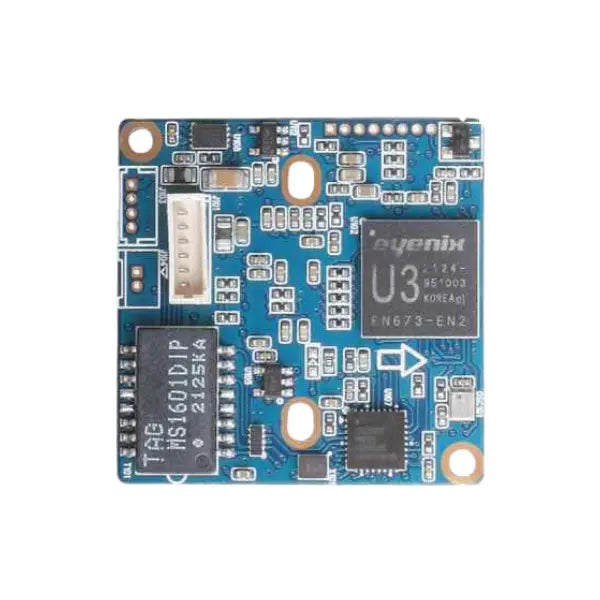

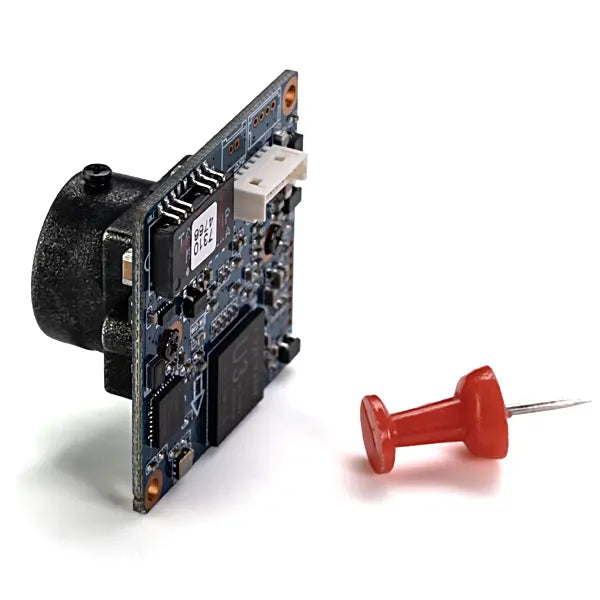

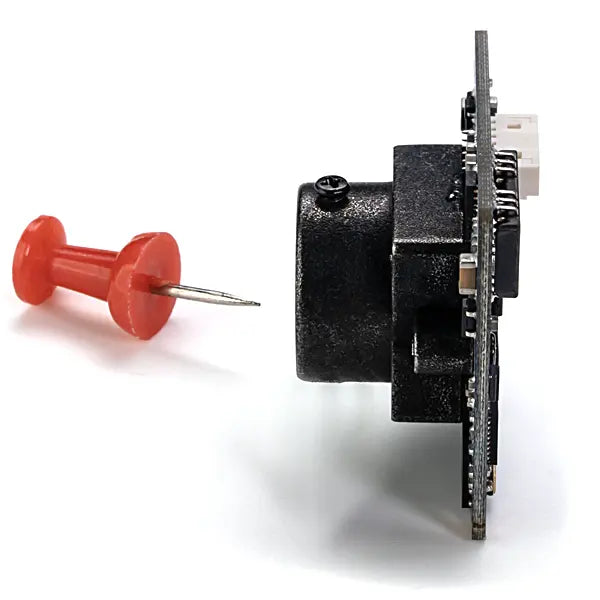

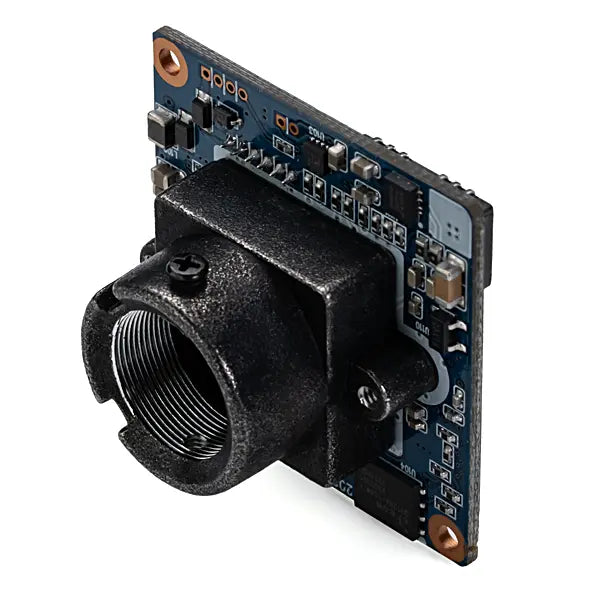

Capture every detail with unparalleled clarity with the small IMX327 1080p IP Board with M12 Lens Mount. With a built-in IP network capability, this camera offers seamless integration into your existing network, facilitating easy setup and flexible deployment options using standard video codecs such as H.264 and MJPEG.
Including the powerful Sony Starvis IMX327 1/2.8" CMOS sensor, this IP board camera produces up to Full HD (1920 x 1080p resolution, 2.9μm pixel size, & progressive scan) high-quality images to not miss any details. The M12 lens mount offers flexibility in its field of view (FOV), allowing users to select from various M12 lens options.
Other key features include a minimum illumination of 0.1 lux, wide dynamic range, an easy-to-use webpage viewer, compact dimensions of 32 x 32 mm W x H, and a lightweight payload of 16 grams.
Perfect for:
or wherever there is a need for highly detailed imaging with small weight and form factor requirements.
*No lens is included with the DCC-960; you must use an M12 mount lens in this mode.
Specifications
|
Base Model # |
DCC-960 |
|
Active Pixels |
2.12 MP (1937 (H) x 1109 (V) pixels) |
|
Shutter Type |
Rolling Shutter |
|
Scanning System |
16:9 Progressive scan |
|
Minimum Illumination |
0.1 lux, 0.05 lux (ICR ON), 0.003 lux (DSS ON) |
|
Video Output |
Up to 30fps @ 1920 x 1080p (1920x1080, 1280x720, 800x600, 704x480, 704x400, 640x480, 640x360, 320x240) |
|
Lens Mount |
Board mount (M12) |
|
White Balance |
AUTO, AUTOext, Preset, Manual |
|
Day/Night Mode |
Auto, Color, B&W, Ext. |
|
Shutter Speed |
1/25(30)1~1/30,000 sec |
|
Network Protocol |
TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HPP, DHCP, FTP, SMTP, DNS, DDNS Onvif 17.06 Compatible |
|
Video Codec |
H.264, MJPEG (Duplex Streaming) |
|
Supply Voltage |
DC12V / POE |
|
Power Consumption |
Less than 1.7 Watts (140mA) |
|
Operating Temperature |
-10°C ~55°C (Humidity: 0% ~ 90% RH) |
|
Dimensions (mm) |
32 (W) x 32 (D) - 1 board |
|
Weight (g) |
5 g (without OLPF) 16 g (with M12 lens mount) |
