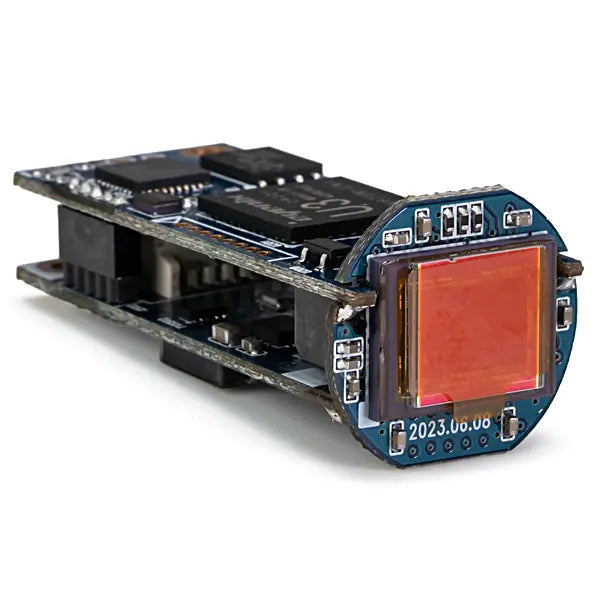

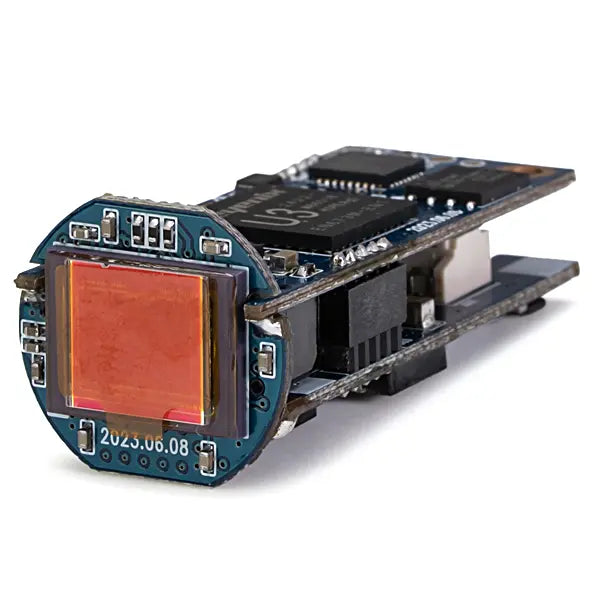

The IMX327 1080p IP Cylindrical board camera (DCC-1H0) is a compact, powerfully engineered component for seamless integration into advanced surveillance and robotic vision systems. Utilizing a cutting-edge 1/2.8" 2.9μm Pixel Progressive Sony Starvis CMOS Sensor, this module delivers crystal-clear 2 MP resolution over IP (H.265 and MJPEG video codecs), ensuring maximum detail in video recordings up to 1080p (1920x1080).
Key Features:
- Sensor: 1/2.8”(D-6.46mm) 2.12M Sony CMOS Sensor for superior image quality in various light conditions.
- Scanning System: Progressive Scan (16:9), providing smooth and clear images of moving objects.
- Resolution: Supports up to 30fps @ 1920x1080p, capturing every moment in full HD.
- Lens Compatibility: Fixed IRIS Lenses mountable with miniature camera housings, offering versatility in lens selection. (Note: Lens mount and OSD is an option, requiring a case with a lens holder).
- Network Enhancement: Onvif Ver. 17.06 Compatible, supporting standard video codecs such as H.264 and MJPEG for easy integration into existing networks.
- Advanced Features: Wide dynamic range (WDR), DSS, and 3D-NR for improved image quality under varied environmental conditions. Also supports Motion Detection (4 Zones), Privacy Mask (8 Zones), and Defog.
- Connectivity: Dual video outputs, including 1 RJ45 connector, facilitating robust network integration.
-

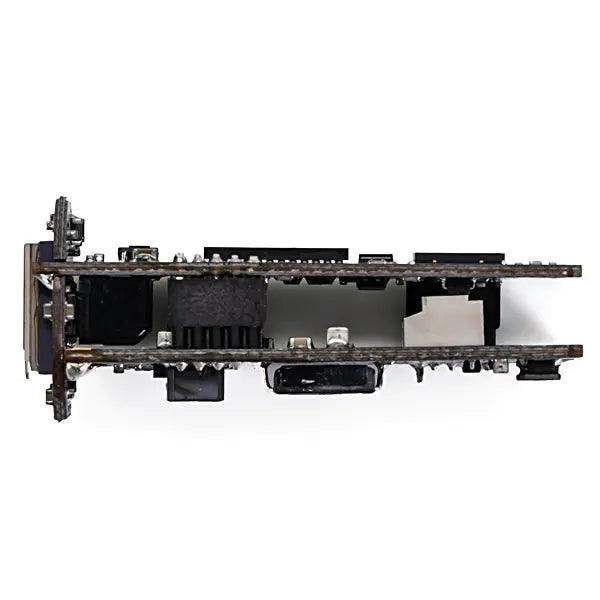

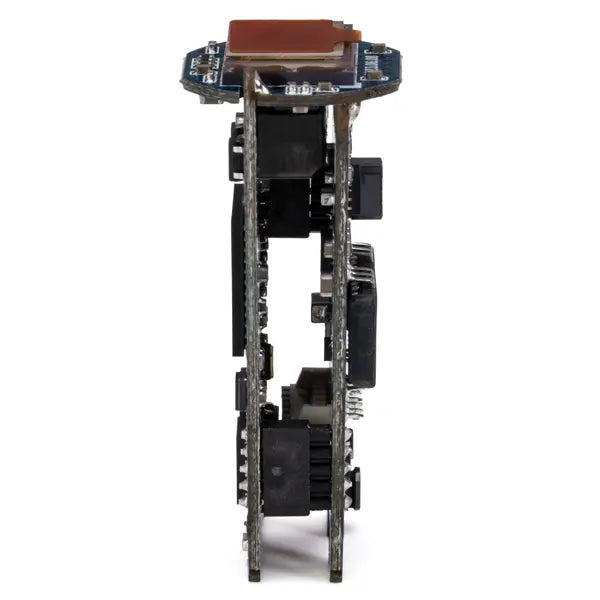

Dimensions & Build: Compact design featuring 17mm Ø 3-boards configuration.
Lightweight at 7 g (without OLPF), ensuring minimal impact on system design.
PCB thickness at 1.0mm, designed for durability.
The IMX327 1080p IP Cylinder board camera (DCC-1H0) from InterTest, Inc., is your solution for integrating advanced video capabilities into your surveillance and robotic vision systems over IP. It's built for flexibility and supports a range of applications, from industrial monitoring to security surveillance, where clear and detailed video footage is critical.
Specifications
| Active Pixels | 2.12MP [1937 (H) x 1097 (V) pixels] |
| Shutter Type | Rolling |
| Scanning System | 16:9 Progressive |
| Minimum Illumination | 0.1Lux (F2.5 - 30IRE), 0.003Lux (DSS on) |
| Video Output | Up to 30fps @ 1920x1080, 1280x720, 800x600, 704x480, 704x400, 640x480, 640x360, 320x240 |
| Lens Mount | N/A |
| White Balance | AUTO, AUTOext, Preset, Manual |
| Day/Night Mode | Auto, Color, B&W, Ext. |
| Shutter Speeds | 1/25(30)~1/30,000 sec |
| Protocols | TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HPP, DHCP, FTP, SMTP, DNS, DDNS Onvif 17.06 Compatible |
| Video Codec | H.264, MJPEG (Duplex Streaming) |
| Optional Video Output | N/A |
| Supply Voltage | DC12V / POE |
| Power Consumption | Less than 1.6 Watts (130mA) |
| Operating Temperature | -10°C ~55°C (Humidity: 0% ~ 90% RH) |
| Dimensions | 17mm OD x 37.7mm - 3 boards |
| Weight | 7g (without OLPF) |
