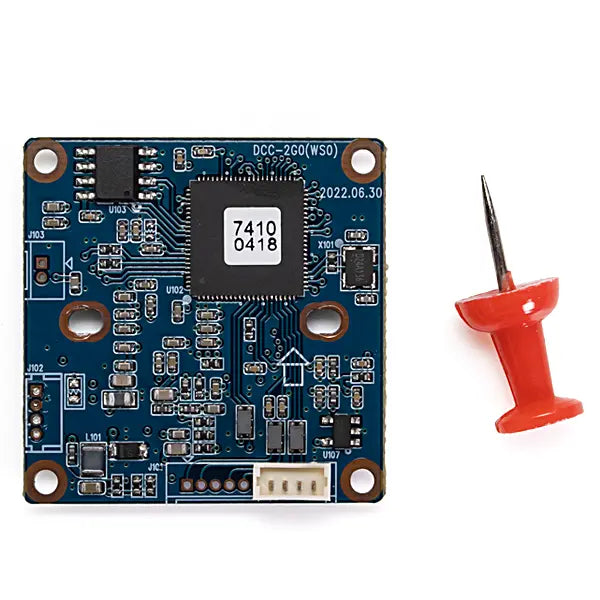

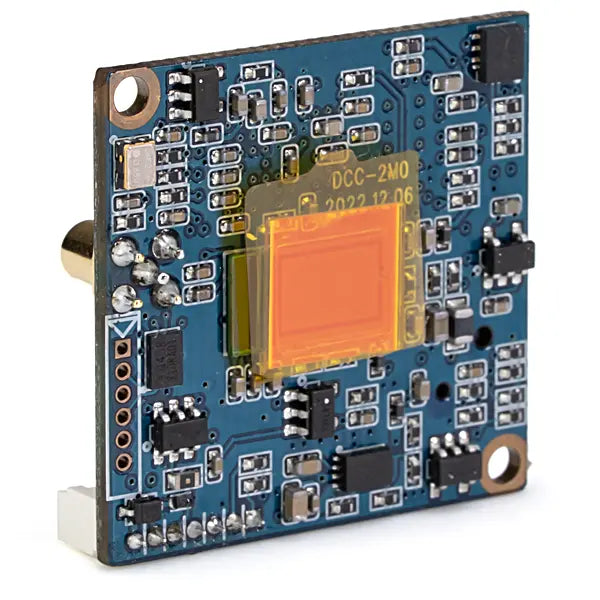

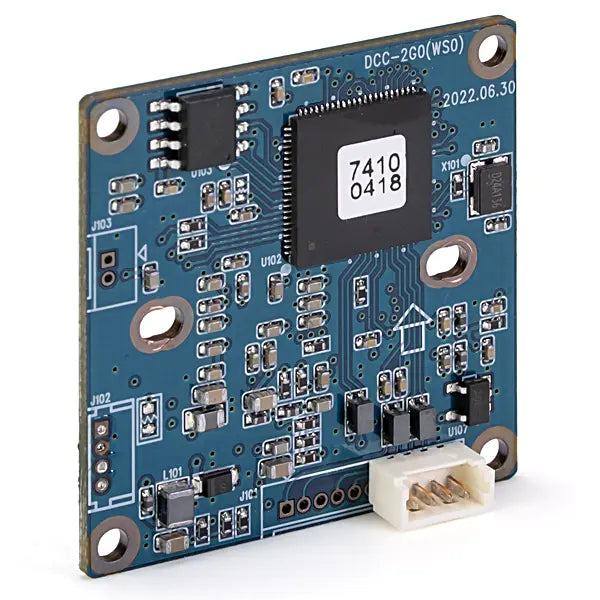

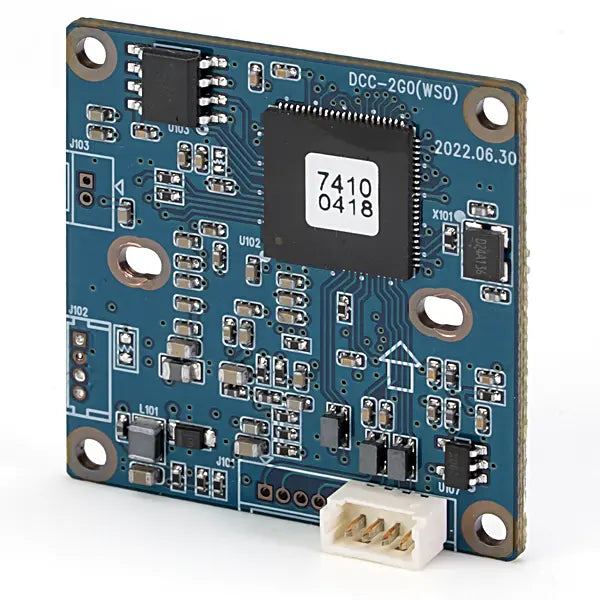

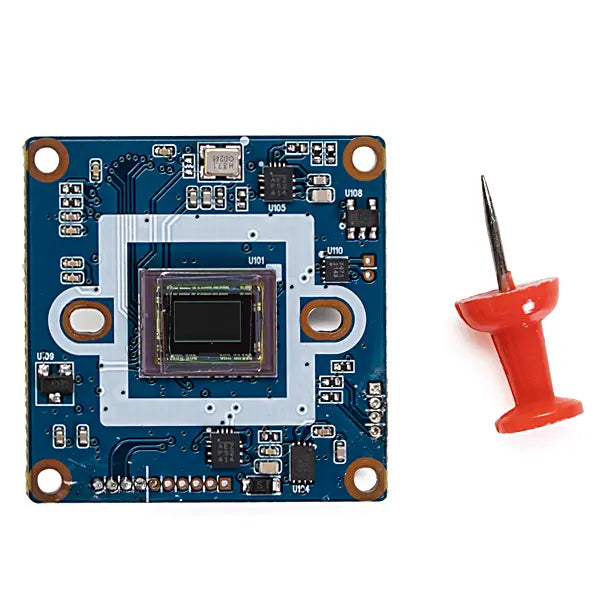

IMX327 1080p USB Board Camera - 32x32 mm No Lens Mount

iShot Cameras Vendor Logo SKU: EM11627MFG: DCC-2G30

Fully Customizable
Fully Customizable

Built to solve your application

Live Customer Service
Live Customer Service

One-on-one support available

• Combined camera sensor + USB Encoder
• 1/2.8" 2MP Sony Starvis IMX327 Color CMOS Sensor
• 32 x 32 mm Single Board
• MJPEG Video Codec
• No lens or lens mount included

Description

Details

The IMX327 1080p USB Board Camera delivers advanced imaging capabilities with its 2 Megapixel Sony Starvis CMOS sensor, designed to offer exceptional clarity and depth. This compact video module is an excellent solution for applications, such as surveillance and ground robotic vision that require high-resolution video and low-light performance in a discreet, mountable format.

Key Features:

  • High-Performance Image Sensor: Features a powerful 1/2.8" Sony CMOS sensor that captures high-definition 1080p video at maximum resolutions. Progressive scan technology ensures sharp images of moving objects.
  • Low Light Sensitivity: With a minimal illumination requirement of 0.1 Lux and 0.05 Lux in ICR mode, the module excels in various lighting conditions, making it ideal for both daytime and night applications.
  • Video Output Formats: Supports MJPEG format across multiple resolutions such as 1080p, 720p, VGA, and CIF, maintaining flexibility in video quality and bandwidth usage.
  • Compact Design: Dimensions of 32 mm x 32 mm on a single board, making it incredibly compact and easy to integrate into small vision systems
  • Versatile Compatibility: Fully UVC-compliant, the IMX327 1080p USB Board camera can operate on various operating systems, including Windows, Linux, Mac, and Android, ensuring seamless integration into existing systems.
  • Robust Operational Features: Includes automatic exposure and white balance controls, gain control and electronic shutter features, plus a day & night switchable function that is factory selectable.
  • Power Requirements: Operates on DC5V via USB connection, consuming less than 1.3 Watts.

Utlitize IMX327 1080p USB Board Camera surveillance and monitoring in low-profile installations such as ATMs, Kiosks, point-of-sale (POS) systems, face recognition platforms, and gaming applications where space and discreet placement are crucial.

Specifications

Active Pixels 2.12MP [1937 (H) x 1097 (V) pixels]
Shutter Type Rolling
Scanning System 16:9 Progressive
Minimum Illumination 0.1Lux, 0.05Lux (ICR on)
Video Output Up to 60fps @ 1080/720/VGA/CIF
Lens Mount N/A
White Balance AUTO
Day/Night Mode Color
Shutter Speeds Auto
Protocols USB
Video Codec MJPEG
Optional Video Output N/A
Supply Voltage DC5V via USB
Power Consumption Less than 1.5 Watts (300mA)
Operating Temperature -10°C ~55°C (Humidity: 0% ~ 90% RH)
Dimensions 32mm (W) x 32mm (D) - 1 board
Weight 5g (without OLPF)


Downloads

IMX327 1080p USB Board Camera Product Brief
