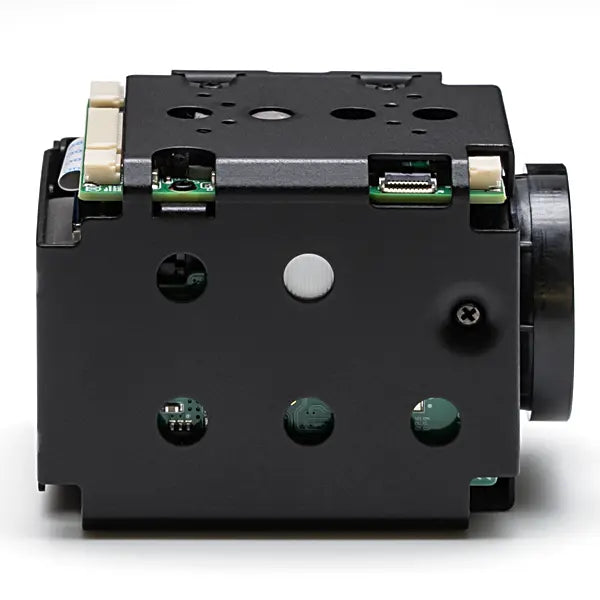

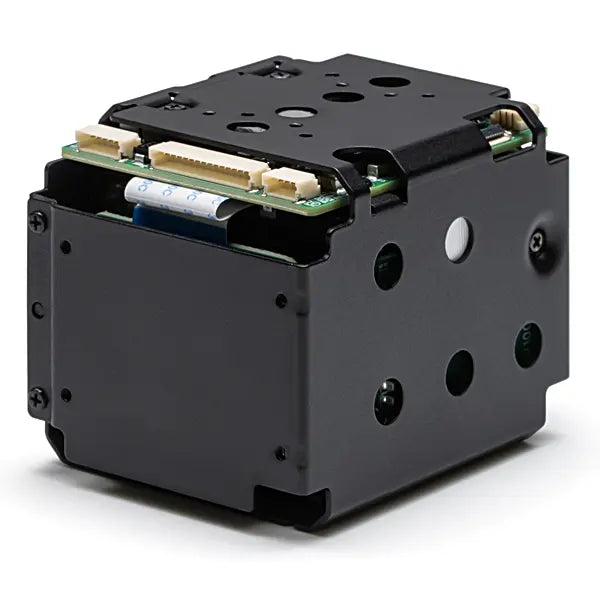

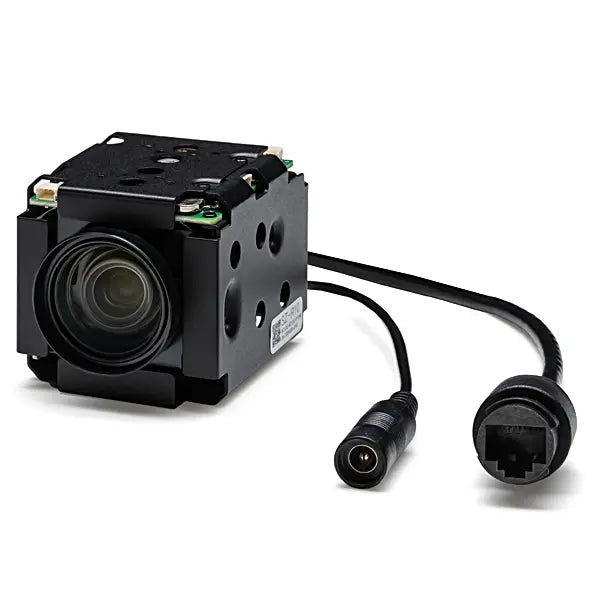

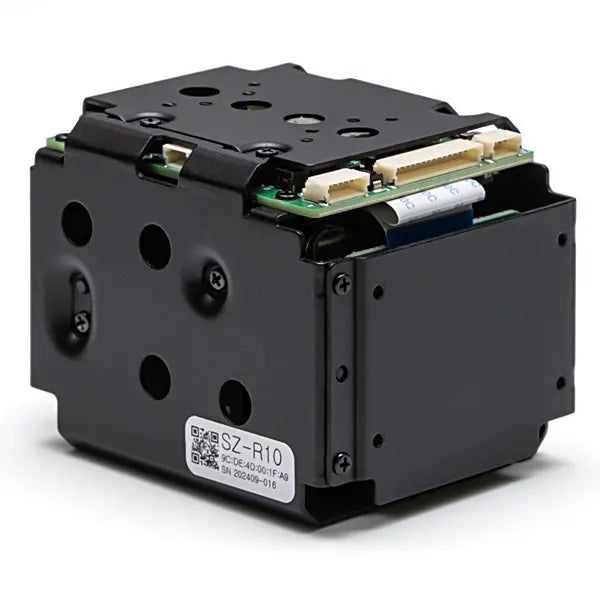

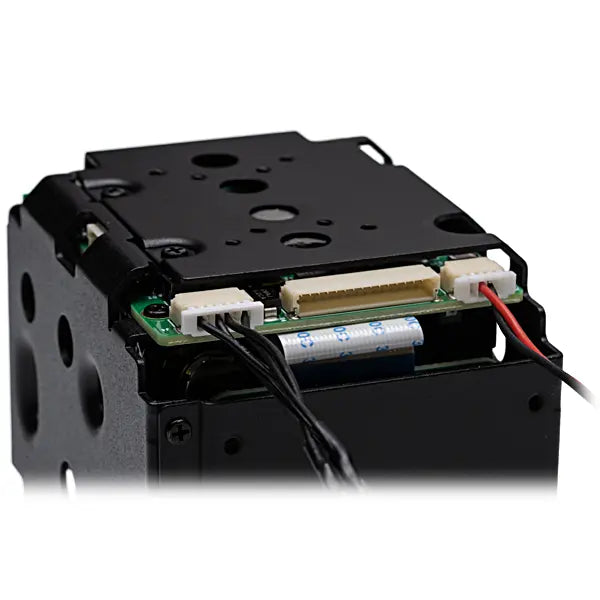

The IMX662 10x Rolling Shutter Zoom Camera Module with Encoder is a zoom block camera module that delivers full HD video over H.264, H.265, and MJPEG encoding. Designed for surveillance, ground robotics, UAV, or traffic monitoring, the 1/2.8" Sony IMX662 CMOS image sensor/IP encoder with rolling shutter ensures seamless operation in any environment, from low-light conditions to complex monitoring setups.
Key Features:
- 10x Optical Zoom + 10x Digital Zoom: Achieve precise image detail with powerful zoom capabilities, ideal for critical surveillance and inspection tasks.
- High-Performance Video Output: Records at an impressive 60fps to deliver fluid motion capture, suitable for fast-moving objects and dynamic scenes.
- Advanced Compression Options: Supports H.264 and H.265 compression formats for optimal video quality and efficient bandwidth usage.
- Low-Light Excellence: Minimum illumination of just 0.03 Lux in color mode (F1.7, AGC ON) ensures crystal-clear images, even in challenging lighting environments. Black & white mode with IR support guarantees zero-compromise visibility in total darkness.
- Rolling Shutter Technology: Provides smooth, distortion-free imaging for applications that demand sharpness and clarity.
- Seamless PTZ Operation: With 256 zoom/focus presets, gain complete control to monitor and adjust focus with unparalleled precision.
Whether equipping a professional surveillance system or vision for ground/aerial robotics, the IMX662 10x Zoom Camera delivers robust features tailored for high-demand environments. Its ability to capture vivid imagery in near-dark conditions and adapt to dynamic lighting scenarios makes it a standout choice for security professionals.
Specifications
| Image Sensor | |
| Sensor | 1/2.8" Sony Starvis 2 Sensor (Rolling) |
| Total pixels | 2,014(H) x 1,196(V) = 2.4M Pixels |
| Effective pixels | 1,965(H) x 1,113(V) = 2.18M Pixels |
| Resolution | 1920 x 1080 Full HD |
| Frame Rate | 60/50 fps, 30/25 fps |
| Min. illumination | Color: 0.03 Lux @ (F.1.7, AGC ON), BW: 0Lux (IR LED) |
| Lens | |
| Zoom Ratio | Optical 10x Digital 10x(TBD) |
| Focal Length | f = 4.8mm ~ 48mm |
| Aperture ratio | F1.7(wide) ~ F3.1(tele) |
| Angle Of View | H : 62°(W) ~ 7.6°(T) V : 36.4°(W) ~ 4.4°(T) D : 69.2°(W) ~ 8.6°(T) |
| Min. Distance | 1m(Wide), 2m(Tele) 0.1m(Wide)(SZ-R10M) |
| Iris | DC Auto Iris |
| IR Cut Filter | On / Off |
| Function | |
| Control Mode | - Auto Focus Mode(Zoom Trigger, Timer Trigger, One Push) - Manual Mode(Slide Control, One Push) |
| Presets | 256 zoom/focus presets |
| Day & Night | Auto, Day, Night, Ext-in |
| D&N Levels | 10 levels (without Ext-in) |
| Electronic Shutter Speed | 1/25(30)/1/50(60) ~ 1/5,000 |
| White Balance Modes | Auto, Manual (3 steps or more) |
| Exposure Modes |
Auto Mode, Manual Mode, Indoor Mode 50Hz / 60Hz(Flicker-Free) |
| Gain control | Auto / Manual |
| WDR | On / Off |
| BLC | On / Off |
| HLC | On / Off |
| DNR | 2D&3D |
| Defog | Off / Low / Middle / High |
| DIS | On / Off |
| Mirror | Off, Vertical Flip, Horizontal Flip, H+V Flip (180 degree rotation) |
| Privacy Mask | Max 8 Zones |
| Motion Detection | 32 x 18 cell / AI motion detection |
| Output Format | H.265 / H.264 / MJPEG |
| Bitrate | 512~15000 kbps |
| Streaming | Quadruple ( x4 ) IP Streaming Main Stream: up to 1920 x 1080 Second Stream: up to 1280 x 720 Third Stream : up to 640 x 480(TBA) JPEG : 1920 x 1080 |
| OSD | Title, Date, Resolution |
| Main UI | Web-based GUI |
| System Mode | NTSC / PAL |
| Audio | |
| Compression | G.711 |
| Sampling rate | 8Khz |
| Input & Output | 1 Line In / 1 Line Out |
| Network | |
| Interface | 10BASE-T/100BASE-TX |
| Protocol | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, NTP, SMTP, FTP, UPnP(TBA), HTTP, HTTPS, SSL/TLS |
| Security | Password protection, IP address filtering, HTTPS encryption, Brute force delay protection |
| Control Protocol | HTTP RESTful API, Onvif |
| General | |
| External devices | 1x Alarm input 1x Alarm output 1x D&N input(Ext-in) 1x PWM output(lighting control) 1x UART |
| External Storage | Micro SD(optional) *Support up to 2TB |
| Power Supply | 12V(8 ~ 15V) |
| Power Consumption | Max. 3.6W |
| Storage Temperature | -20℃ ~ +60℃ (Humidity < 90%RH, Non-condensing) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity < 90%RH, Non-condensing) |
| Dimension | 47 x 47 x 64.4 (WxHxD) |
| Weight | 155g |
| Certifications | NA |
