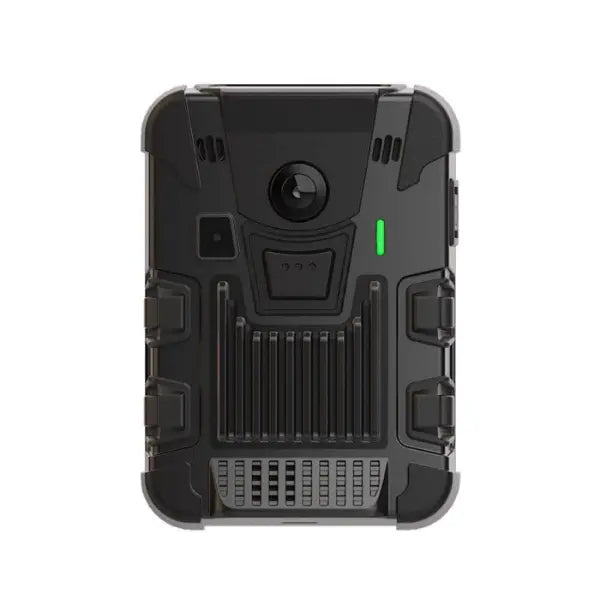

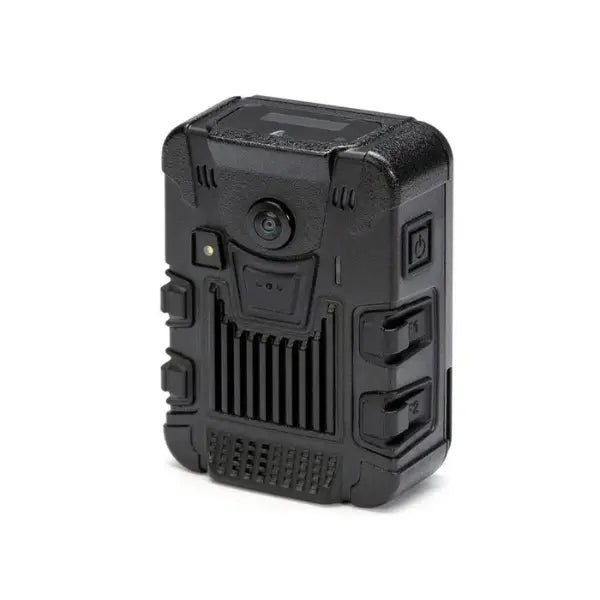

IONODES PERCEPT Body Warn Camera
Combined with the PERCEPT Cloud Solution, gain a secure and reliable on-demand live video streaming and storage solution accessible from anywhere, anytime via web and mobile apps. Offering direct camera-to-cloud connectivity, the PERCEPT Cloud Solution is a complete camera management solution offering innovative features such as real-time location tracking, centralized camera software upgrades and remote
access for camera control and configuration. With both Wi-Fi and LTE connectivity options, the PERCEPT Body Camera Solution can easily
adapt to any deployment scenario.
The PERCEPT Body Camera Solution has been designed for commercial and enterprise use in various markets and applications including private security, transportation, warehousing, retail, industrial, manufacturing and more. Use cases include staff safety, incident reporting,
resource and asset tracking, efficiency monitoring, live remote assistance, training, service optimization and theft deterrence.
Specifications
Networking |
3G / 4G LTE |
|
Wi-Fi |
|
Bluetooth |
Still Image |
Image capture at up to 8.3MP (JPEG) |
Video |
4K (8.3MP) / 6MP / 4.2MP / 2.3MP / 1MP / 0.6MP at up to 30 FPS; H.264 / H.265 HEVC compression |
Lens |
Type: Panomorph, 180° Horiz. / Vert. Field of View Focus range: 24 inch to infinity |
Watermarking |
Data in picture includes date, time, GNSS position and 9-axis motion for image stabilization |
Microphones |
Dual microphones / left and right AAC audio compression |
Speaker |
Speaker output / 1.3W max. power |
USB Type-C |
Supports Quick Charge 3.0 / max. 2A charge current Data transfer via optional charging dock |
Motion Sensing |
9-axis, accelerometer, gyroscope and magnetometer |
Haptics |
Vibration feedback on commands and alerts |
Status LED |
Top facing and front facing RGB status LED |
OLED Display |
0.9 inch, top facing, 128 x 32 dot OLED display |
Satellite Positioning |
GPS / BeiDou / GLONASS |
Internal microSD |
64GB |
Operating Time |
Up to 16 hours depending on configuration |
Charging Time |
<= 4 hours |
Supported API’s |
ONVIF Profile G, S and T IONODES ION API (HTTP-based RESTFul API) |
Dimensions |
95mm x 65mm x 35mm |
Weight |
155g (including 6,000 mAh battery) |
