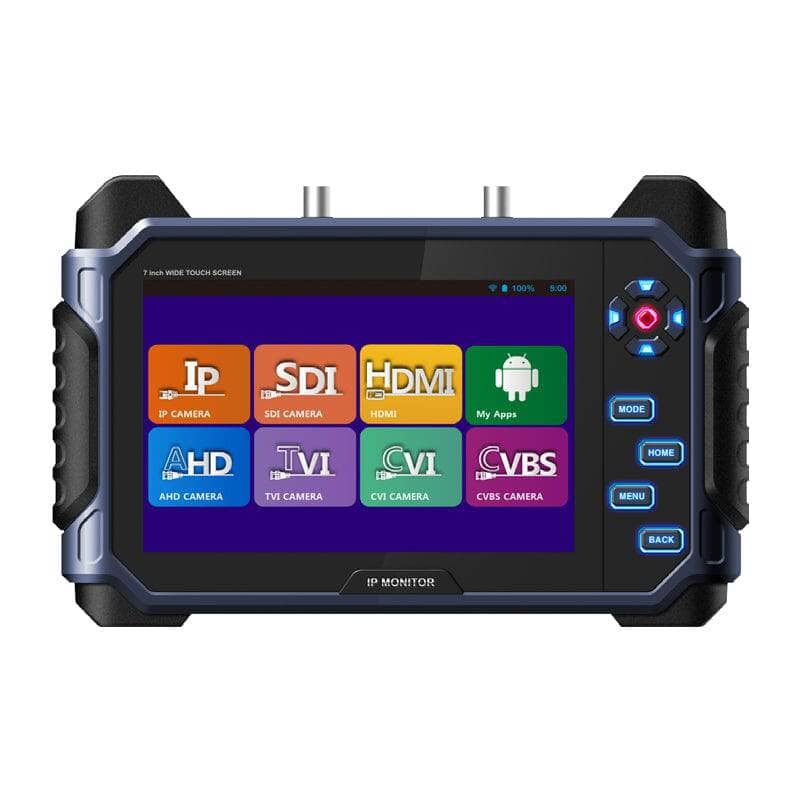

IP Multi-Format Test Monitor
SC-IPM07PRO provides easy installation and maintenance of various camera systems such as IP, HDMI, AHD, TVI, CVI, 3G-SDI, HD-SDI, EX-SDI, and CVBS by a sole user, making it possible to do video monitoring, camera PTZ control, camera network setting, etc. In addition, SC-IPM07PRO provides a DVR side test by having HD (Digital) input & output ports and measures signal and focus status more accurately with the built-in level/focus meters, including HD-analog signals.
Specifications
|
Display Resolution |
1920(H) x (R,G,B) x 1200(V) |
|
Size |
7 Inch |
|
Scanning |
0.07875(W) x 0.07875(H) (mm) |
|
Pixel Pitch |
0.05Lux(F2.5, DSS Off) / 0.01Lux(DSS On) |
|
Brightness(Cd) |
450 cd/m |
|
View Angle |
80°(H) / 80° (V) / 80° (U) / 80° (D) |
|
HDMI |
Up to 4K 30p |
|
SDI |
HD/3G-SDI, EX-SDI1.0/2.0/TDM |
|
HD Analog |
Up to 8M (TV1/CVI/AHD) |
|
CVBS |
NTSC/PAL |
|
HDMI |
UP to 1080p60 |
|
LAN |
10/100/1000Mbps - IP Camera & PoE |
|
Network TDR |
Network Cable Tester, Network Packet Analyzer, Network TDR |
|
Coaxial TDR |
Coaxial Cable TDR |
|
INPUT |
DC 12V 1.9A (Exclusive Charger) |
|
OUTPUT |
DC 12V Max. 1A |
|
Temperature / Humidity |
0°C ~50°C. 80% |
|
Max. Frame Rate |
PCABS / 1kg |
|
Case Material / Weight |
PCABS / 1kg |
|
Dimension (mm) |
246(W) x 160(H) × 49. 9(D) |
