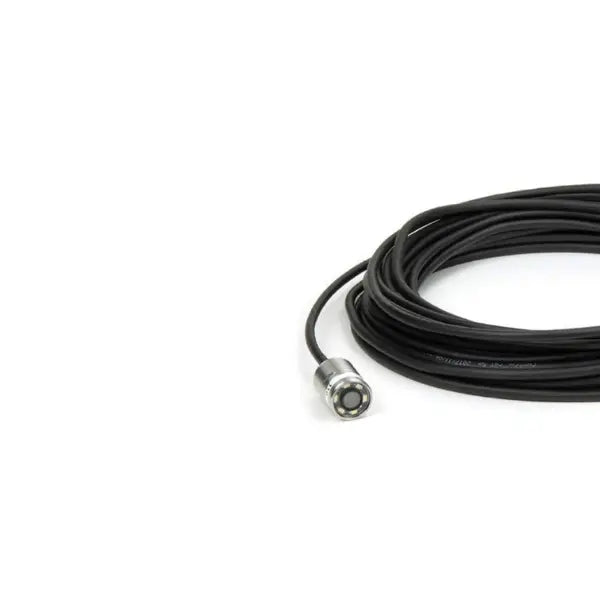

iShot® 19mm HD Camera w/ 24" Cable

iShot Cameras Vendor Logo SKU: EM12588



iShot® 19mm HD Camera w/ 24" Cable

A 19 mm Full 1080p HD Camera solution for a variety of industrial applications. With integrated lights, it's designed to be utilized as a standalone solution or it can easily be incorporated into a larger solution as an OEM system without giving up performance. The camera features a 1/3” CMOS sensor with an electronic rolling shutter with speeds up to 1/100,000 sec, adjustable exposure, six-LED shadowless illumination and it comes in an IP67 enclosure, which is waterproof to the full length of cable.
Camera control units have built-in capture capability for both video and still images, and a long-lasting battery option is available for full portability.


 Camera Model  PC-HD19
 Image Sensor  1/3" CMOS
 Total Pixels  2304(H) x 1536(V)
 Active Pixels       2304(H) x 1296(V)
 Pixel Size  2.2 μm x 2.2 μm
 Sensing Area   5.07 mm(H) x 3.38 mm(V)
 Video Resolution  848x480, 1280x720, 1920x1080
 Still Resolution 2 Megapixel, 3 Megapixel, 5 Megapixel
 Synchronization  InternaI
 Sensitivity  0.2 lux (30 IRE)/Fl .2
Scanning Mode  Progressive
 Shutter Type  ERS
 Shutter Speed    Auto: 1/60 to 1/100,000 Seconds
 Frame Rate   Up to 60 fps
 Dynamic Range  69.5 dB
 Signal to Noise ratio  39 dB
 Gain Control  Automatic (switching)
 Dimensions w/ Lens  19 mm OD x 30 mm
 Power Consumption   < 200 mA
 Operating Temperature   -20° C ~ 70° C
 Storage Temperature  -30° C ~ 90° C
 Lens Type   Toolless Focus
