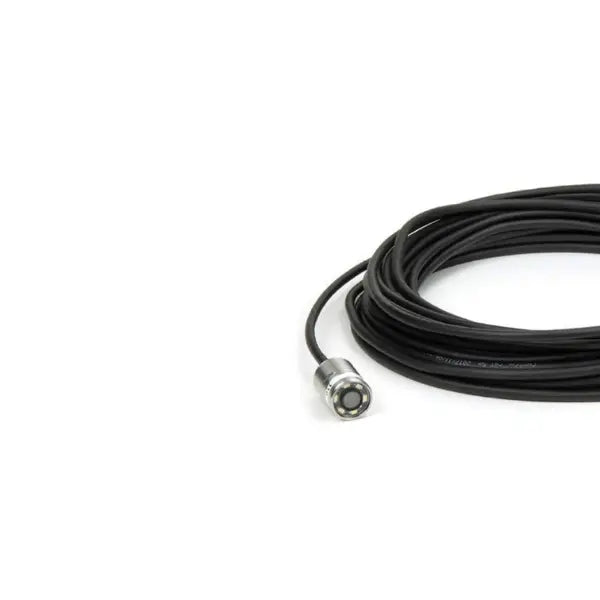

A 19 mm Full 1080p HD Camera solution for a variety of industrial applications. With integrated lights, it's designed to be utilized as a standalone solution or it can easily be incorporated into a larger solution as an OEM system without giving up performance. The camera features a 1/3” CMOS sensor with an electronic rolling shutter with speeds up to 1/100,000 sec, adjustable exposure, six-LED shadow less illumination and it comes in an IP67 enclosure, which is waterproof to the full length of cable.
Camera control units have built-in capture capability for both video and still images. A long-lasting battery option is available for full portability.
Specifications
| Camera Model | PC-HD19 |
| Image Sensor | 1/3" CMOS |
| Total Pixels | 2304(H) x 1536(V) |
| Active Pixels | 2304(H) x 1296(V) |
| Pixel Size | 2.2 μm x 2.2 μm |
| Sensing Area | 5.07 mm(H) x 3.38 mm(V) |
| Video Resolution | 848x480, 1280x720, 1920x1080 |
| Still Resolution | 2 Megapixel, 3 Megapixel, 5 Megapixel |
| Synchronization | InternaI |
| Sensitivity | 0.2 lux (30 IRE)/Fl .2 |
| Scanning Mode | Progressive |
| Shutter Type | ERS |
| Shutter Speed | Auto: 1/60 to 1/100,000 Seconds |
| Frame Rate | Up to 60 fps |
| Dynamic Range | 69.5 dB |
| Signal to Noise ratio | 39 dB |
| Gain Control | Automatic (switching) |
| Dimensions w/ Lens | 19 mm OD x 30 mm |
| Power Consumption | < 200 mA |
| Operating Temperature | -20° C ~ 70° C |
| Storage Temperature | -30° C ~ 90° C |
| Lens Type | Toolless Focus |
