iShot® FCB-EV7100 PoE OEM Integration Kit

iShot Cameras Vendor Logo SKU: EM19393

• Sony FCB-EV7100 with 10x optical zoom
• 1/2.8-type Exmor™ CMOS image sensor
• Full HD 1080/60p (1920 x 1080) picture quality
• Approx.2.38 Megapixels
• Min Illumination: Color 0.35 lx (F1.8, AGC on, 1/30 s)
• VISCA Communication Protocol



iShot® FCB-EV7100 PoE OEM Integration Kit

The Sony® FCB-EV7100 10x Block Camera is a legacy product.

Check out its replacement, the KT&C ATC-HZ7810C-L 10x Zoom Rolling Shutter Block Camera.

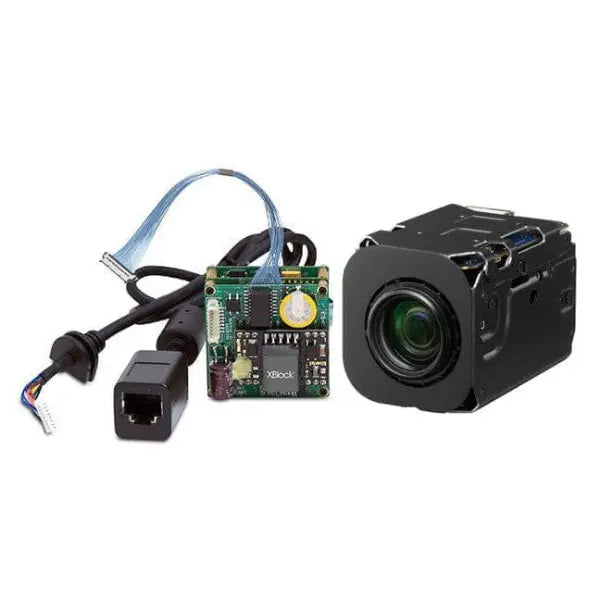

The iShot® 48v PoE IP Interface OEM Integration Kit includes a Sony FCB-EV7100 camera, 48v PoE IP Interface board, IR, and unterminated cabling with a 32bit RISC Processor/Embedded Linux. Achieve 1080p/30, 10x Optical Zoom, and wide 130dB dynamic range.  ONVIF / ONVIF-S compliant. RJ-45(10/100M Ethernet LAN) Video Output with a data transfer of 30 FPS.

The Sony FCB-EV7100 features a high-performance 1/2.8-type Exmor™ CMOS image sensor and a 10x optical zoom lens, achieving superb Full HD 1080/60p (1920 x 1080) picture quality in low-light conditions. The progressive scan feature assures smoother pictures with reduced blur, best for capturing the utmost details of images in motion.

Full HD (1080/60p) images

The 1/2.8-type Exmor™ CMOS image sensor successfully achieves Full-HD (1920 x 1080) picture quality to the same degree in low-light conditions. The progressive scan feature assures a smoother picture with reduced blur that is best for capturing details of images in motion.

Rapid 10x optical zoom

The Sony FCB-EV7100 high-quality lens features an F1.8 aperture and 10x optical zoom. Zoom operation is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups in security and surveillance applications.


The Sony FCB-EV7100 features an image stabilizer. Optical/digital zoom enhances picture quality and maintains the original horizontal angle of view; it ensures no compromise in image size and blur reduction.

2D/3D Noise Reduction

Noise reduction technology filters the noise from the images for precise results, especially in low-light conditions. Five different noise reduction settings are available, and they suit a wide range of operating conditions.

Visibility Enhancer and De-fog

This feature enhances Picture quality dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range. The de-fog features in the Sony FCB-EV7100 allow more precise viewing in foggy or misty settings.

Wide dynamic range

Wide-D image processing technology allows seeing detailed, clear images in backlit or high-contrast conditions.


The benefits of optimized picture quality in changing light conditions are frequent challenges in round-the-clock security operations. The Sony FCB-EV7100 operates effectively in lighting levels as low as 0.35 lx (ICR on) in high sensitivity mode.

Auto ICR (Auto IR-cut Filter Removal)

The Sony FCB-EV7100 automatically switches from day to night mode in low light conditions; removing the IR-cut filter boosts sensitivity for clear pictures in low-light conditions.

Spherical privacy zone masking

Masked areas are selectively masked and automatically interlocked with the Sony FCB-EV7100 pan/tilt/zoom feature.

HD and SD output modes

Video signal outputs are accessible in HD digital and analog signal and SD formats. They reduce integration cost and complexity by avoiding the need for additional analog/ digital converters. The user can change the Video output modes during regular operation without a hardware reboot of the Sony FCB-EV7100 camera.

One-cable connection for simple integration

A single cable carries HD video signals plus VISCA communication and power supply. Integration flexibility supports both 30-pin micro coaxial (digital output) and 24-pin FFC (analog output) interfaces.

Wide range of features for versatile operation

The Versatile Sony FCB-EV7100 camera operation ensures a wide range of functions and adjustments, including White Balance modes; Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Color Enhancement); Motion Detection/Alarm; Picture freeze; Temperature readout; Slow AE response; Electronic shutter/ slow shutter; Title display/Camera mode display (English).

InterTest, Inc. is an Authorized National Systems Integrator for Sony’s Visual Imaging Products division.


Image Device

1/2.8-type CMOS

Effective Pixels

Approx. 2.38 Mega Pixels

Digital Zoom

10x Optical, 12x (120x with optical zoom)

Horizontal Viewing Angle

67.0°(wide end) to 7.6°(tele end)

Minimum Object Distance

10 mm (wide end) to 800 mm (tele end) (Default: 320 mm)

Sync System


Electronic Shutter

1/1 s to 1/10,000 s, 22 steps

White Balance

Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto/Outdoor Auto), One-push, Manual


Auto/Manual 0 dB to 50.0dB (0 to 28 steps +2 step/ total 15 steps); Max. Gain Limit 10.7 dB to 50.0 dB (6 to 28 steps +2 step/total 12 steps)

Wide Dynamic Range

Yes 130dB

Backlight Compensation


Privacy Zone Masking


Character Generator

20 characters/line, max. 11 lines

Focus System

Auto (Sensitivity: normal, low), One-push AF, Manual, Interval AF, Zoom Trigger AF, Focus compensation in ICR on

Picture Effects

E-Flip, Nega Art, Black & White, Mirror image, Color enhancement

Exposure Control

Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE

Lens Value

10x optical zoom; f=3.8mm (wide) to 38mm (tele); F1.8 to F3.4

S/N Ratio

More than 50 dB

Minimum Illumination

Color: 1.4 lx (F1.8, AGC on, 1/30 s) High Sensitivity Mode Color: 0.35 lx (F1.8, AGC on, 1/30 s)

Video Output

Analog: Component (Y/Pb/Pr); Digital: Y/Cb/Cr 4:2:2 via LVDS;

(Signal format conforms to SMPTE 274/SMPTE 296.)

Camera Control Interface

VISCA (CMOS 5 V level; Baud rate: 9.6 Kbps, 19.2 Kbps, 38.4 Kbps, 115.2 Kbps, Stop bit: 1 bit

Dimensions (W x H x D)

45.6 mm x 48.8 mm x 78.0 mm


Approx. 210 g

Operating Temperature

-5 ℃ to +60 ℃

Storage Temperature

-20 ℃ to +60 ℃

Operating Humidity

20% to 80%

Power Consumption

3.4W (zoom/focus inactive); 3.7W (zoom/focus active)

Power Requirements

6.0 V to 12.0 V DC


 Sony_FCB-EV7100_Camera_Manual (2.16 MB)
