iShot® FOSAR Series Working Channel Industrial Video Borescope

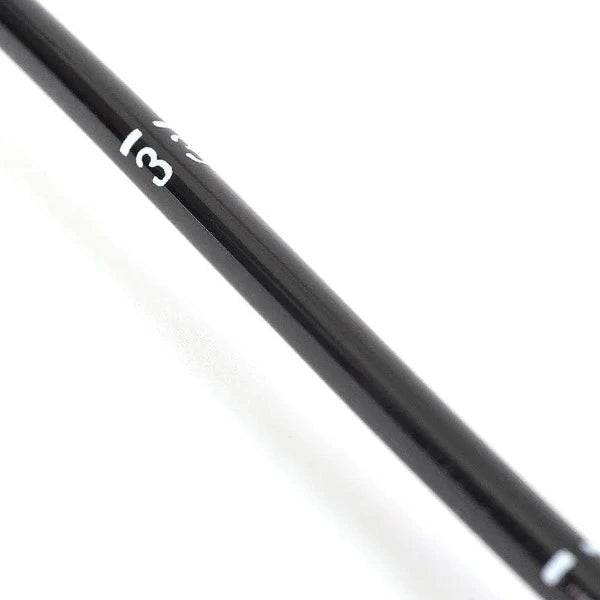

The iShot® FOSAR Series Working Channel Industrial Video Borescopes are engineered for Foreign Object Search and Retrieval (FOSAR) with tungsten braided (6.0 mm diameter only) or poly-coated insertion probes.

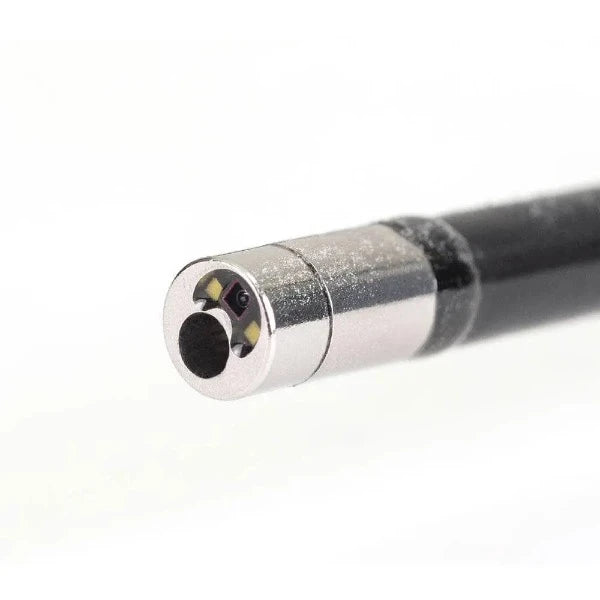

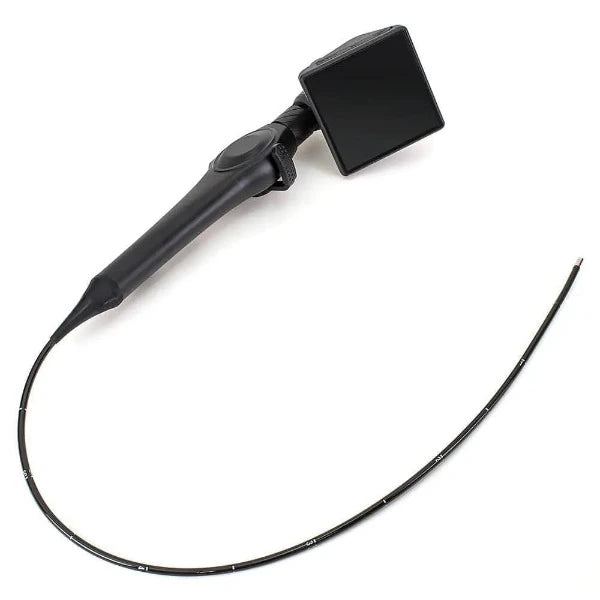

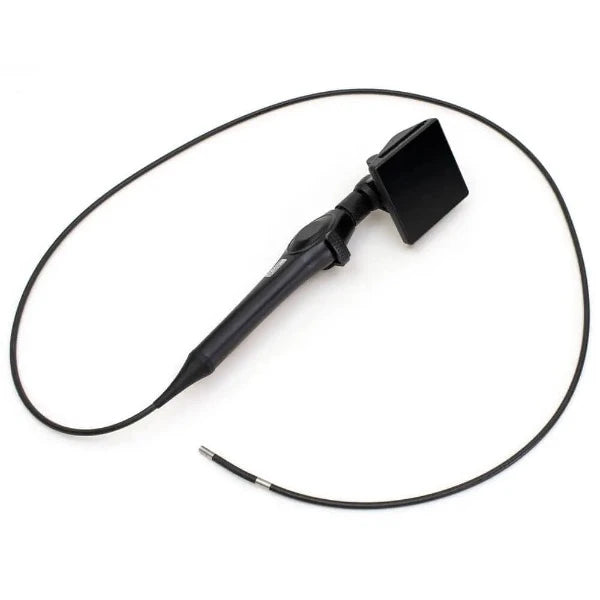

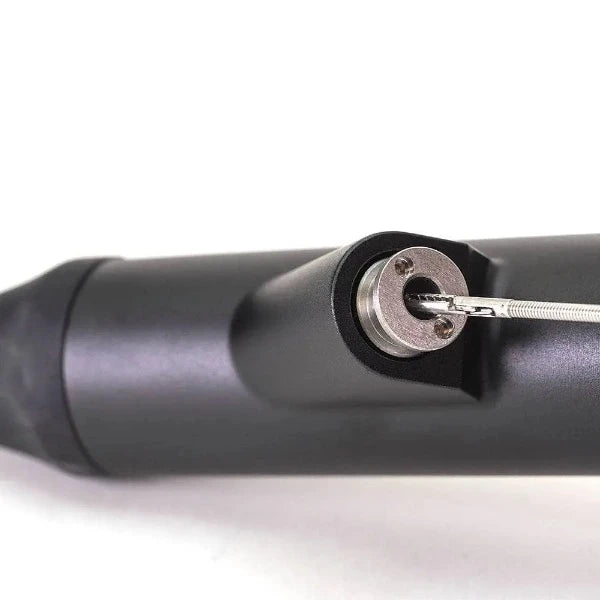

All scopes have an internal working channel for a retrieval tool to pass through to the inspection area. The interchangeable borescope shaft allows for the front feeding of the retrieval tool from the handset to the distal tip of the scope. Each handset has simple touchscreen menus that allow video and still image capture and storage on external media.
Works great with iGrab Micro Manual Retrieval Tools. See the table for tools that work best for each FOSAR Series Model:
|
EM# |
Outer Diameter / Length |
Working Channel Diameter |
Recommended/Compatible Retrieval Tools |
| EM16743 |
4.8 mm / 1 meter |
2.2 mm |
EM90110 - 1.4 mm Micro Alligator EM17638 - 1.4 mm Micro Snare EM17641 - 1.4 mm Micro Three-Prong Gripper EM17552 - 1.4 mm Micro 4-Wire Nitinol Basket EM17717 1.8 mm Micro Long Tooth |
| EM17077 |
5.8 mm / 1 meter |
2.6 mm |
EM17719 - 2.3 mm Micro Alligator EM14710 - 2.4 mm Micro Three-Prong Gripper EM17552 - 2.4 mm Micro 4-Wire Nitinol Basket EM17718 2.4 mm Micro Long Tooth EM16679 2.4 mm Micro Rat Tooth |
| EM17816 |
6.0 mm / 1.5 meter |
2.6 mm |
EM17719 - 2.3 mm Micro Alligator EM14710 - 2.4 mm Micro Three-Prong Gripper EM17552 - 2.4 mm Micro 4-Wire Nitinol Basket EM17718 2.4 mm Micro Long Tooth EM16679 2.4 mm Micro Rat Tooth EM17640 2.4 mm Micro Tooth Clam |
Specifications
| Working Length | 1000 mm |
| Material | poly coated (4.8 & 5.8 mm versions) or tungsten (6.1mm) |
| Light source | White LED, brightness < 3000 lux |
| Camera | 160,000 pixels / 400 x 400 |
| Display Screen | 4" Display IPS resolution (480x480) |
| Waterproof for probe | IP67 |
| Operation interface | Capacitor Touch and Short Keys |
| Function | Photos, videos, playback, etc. |
| Rotation angle | <100° (horizontal) / <120° (vertical) |
| Built-in memory | 16GB |
| Memory support | 32GB TF Card |
| Video support | HDMI |
| USB Output | USB 2.0 |
| Language | English |
| Battery | 2600mA, 4 hours continuous |

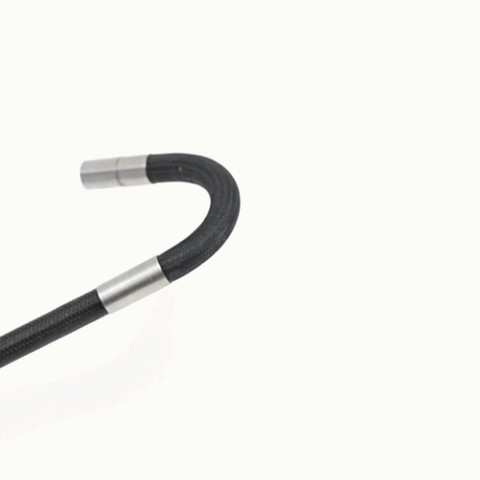

| Articulation | 2-Way 180° |
| Field of View | 120° |
| Depth of Field | 5 - 80mm |
