Peerless PC-HD17 17 mm Micro Camera Head

Peerless Vendor Logo SKU: EM14846 MFG: PC-HD17 11266700

• Full HD 1080/60 Resolution
• 17 mm diameter
• HD Replacement for the ELMO MN43H & MP50H, Toshiba IK-M44H & IK-M51H

Peerless

Description

Details

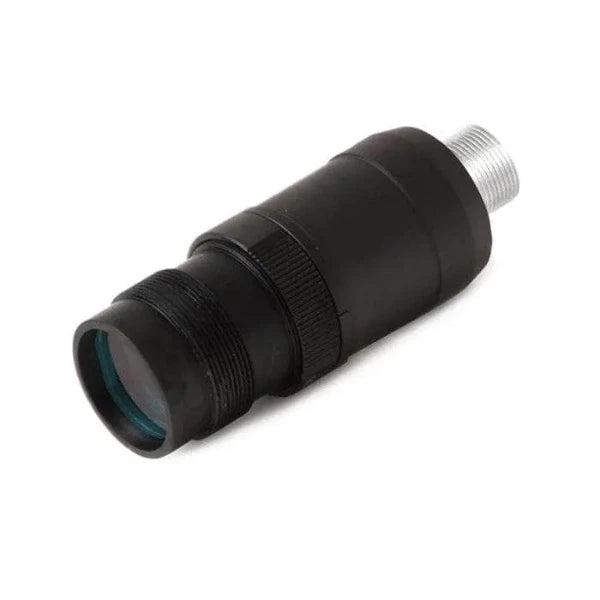

Peerless PC-HD17 17 mm Micro Camera Head

The iShot Full HD 17 mm Micro Camera Head provides a high-detail image and a video resolution of 1920 x 1080 with 60 fps in a compact housing measuring only 17 mm OD x 36.5 mm. The Full HD 17mm micro camera features include a 1/3" image sensor, progressive scan, auto backlight compensation, auto shutter, auto gain, and auto white balance, with a dynamic range of up to 69.5 dB.

This is the ideal HD replacement camera head for legacy SD Micro Cameras such as the ELMO MN43H, ELMO MP50H, Toshiba IK-M44H, and Toshiba IK-M51H.

Specifications

Image Sensor 1/4.4" CMOS
Total Pixels 2304 H x 1536 V
Active Pixels 2304 H x 1296 V
Pixel Size 2.2µm x 2.2µm
Sensing Area 5.07mm H x 3.38mm V
Synchronization Internal
Sensitivity 0.2 lux (30 IRE)/F1.2
Responsivity 2.0V/lux-sec
Scanning Mode Progressive
Shutter Type ERS
Shutter Speed Auto: 1/60 ~1/100,000 sec
Back Light Compensation Auto
Dynamic Range 69.5 dB
Signal-to-Noise Ratio 39 dB
Gain Control Auto (switching)
White Balance Auto
Operating Temperature -20ºC~70ºC
Storage Temperature -30ºC~90ºC
Cable Lengths 3m-15m
Lens Mount M15.5
Power Consumption < 200mA

Downloads

PC-HD17 Camera Specification Sheet
