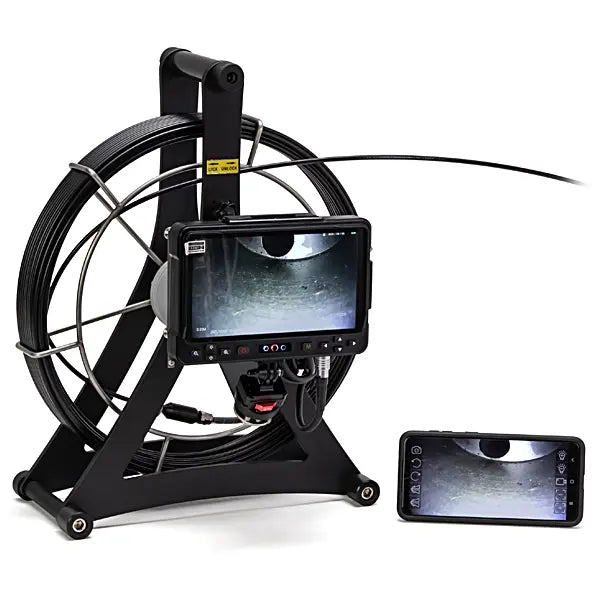

The iShot® Imaging Model MX LITE Push Camera Inspection System is a compact push camera system with small diameter camera heads to meet the demands of various remote vision inspection applications and industries, including sewer and water line, vessel tank, and pipe & valve inspections.

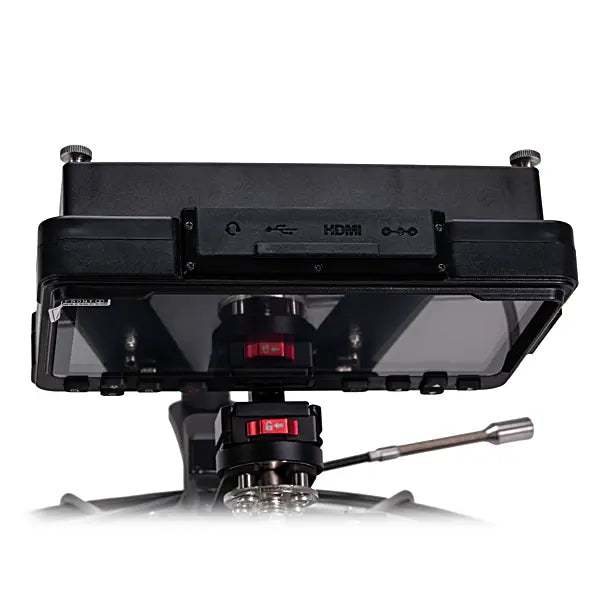

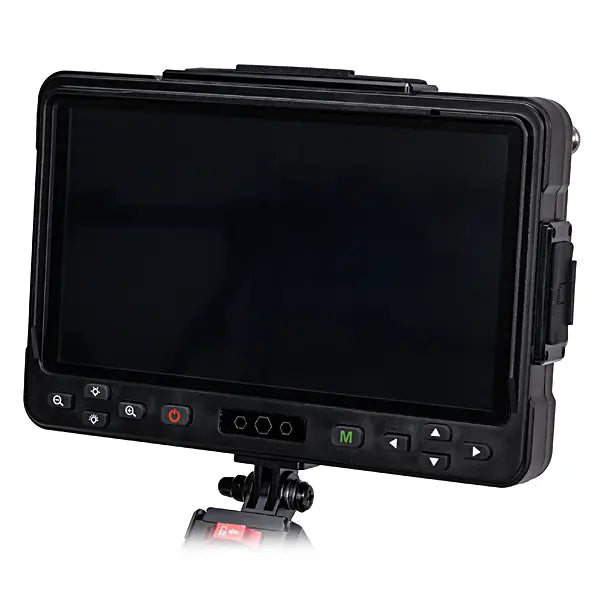

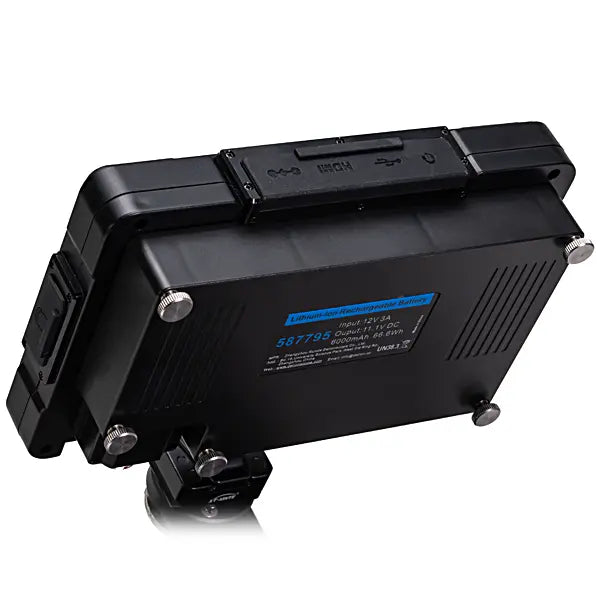

The iShot® Imaging Model MX LITE Push Camera Inspection System features an intuitive 7-inch touchscreen that features high resolution, ensuring every detail is noticed. Display features like contrast measurement lines, negative imaging, and other operating modes provide exceptional functionality for remote visual inspection. The monitor also offers up to 5 hours of constant operation and 32 GB of removable storage.

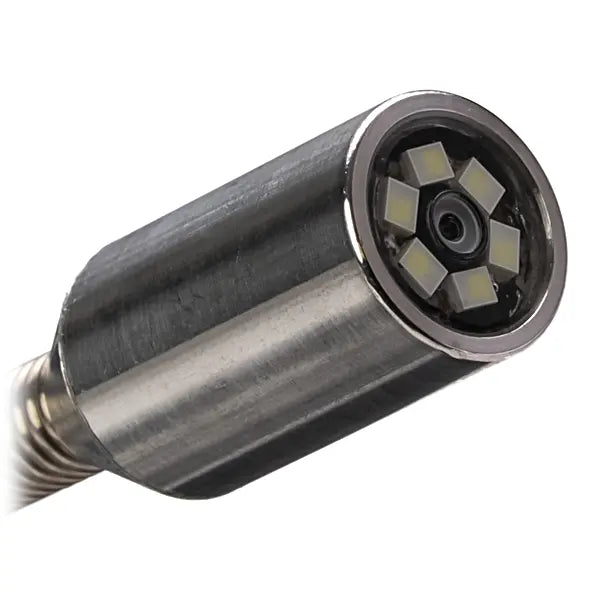

The iShot Imaging® Model MX Push Mini comes in three different camera diameters, 8 mm, 12 mm , and 16 mm. Each camera head offers high resolution with a wide 120° field of view and 15 mm to infinity depth of field, to guarantee a comprehensive inspection image looking down pipes. Each camera has IP67 rating and waterproof ability up to one meter. The 304 stainless streel cameras are durable and built to withstand repeated inspections in harsh environments.

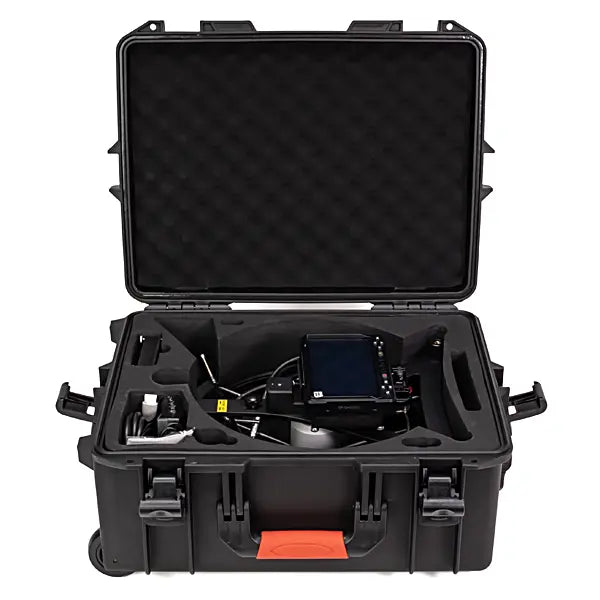

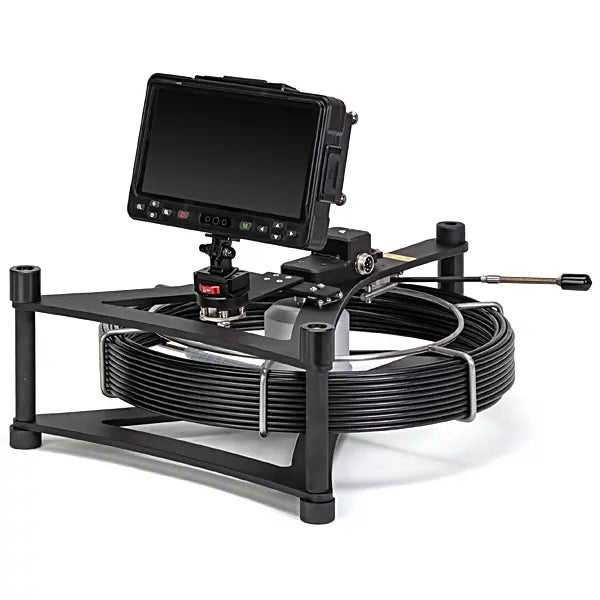

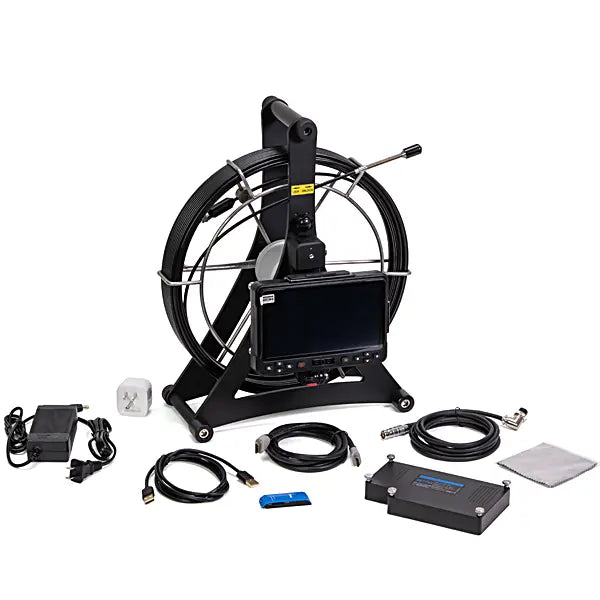

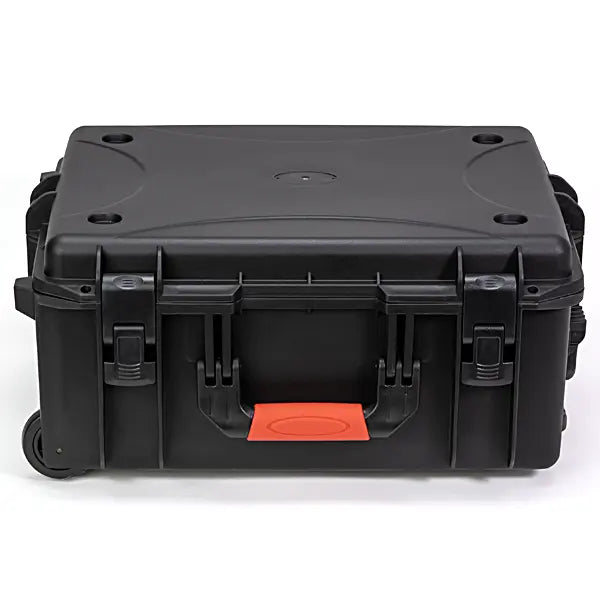

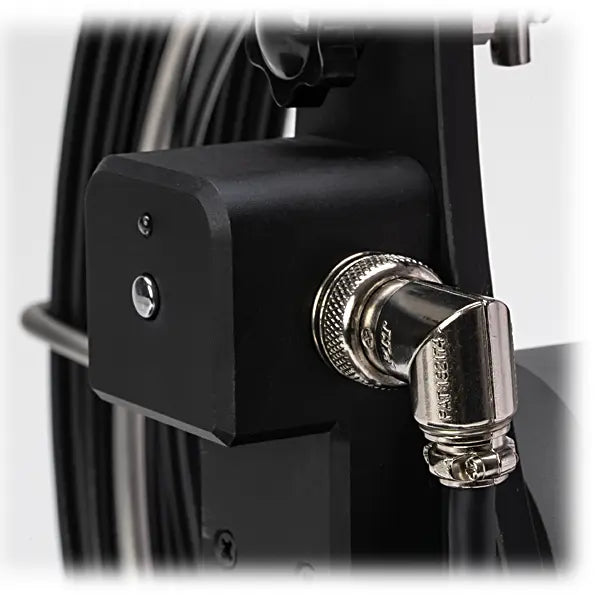

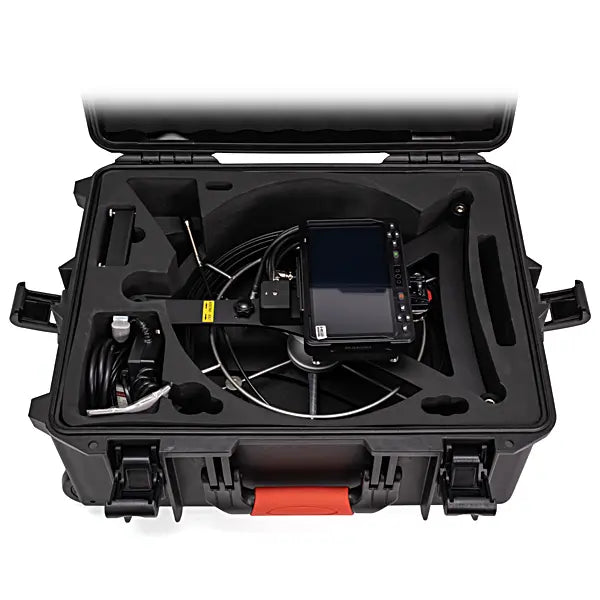

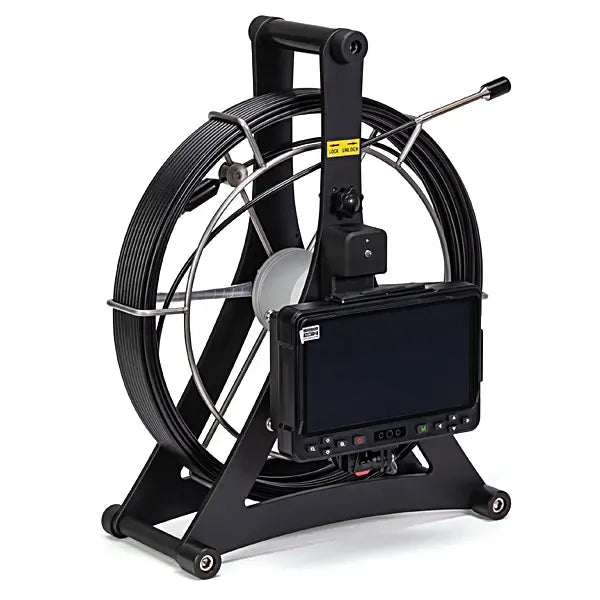

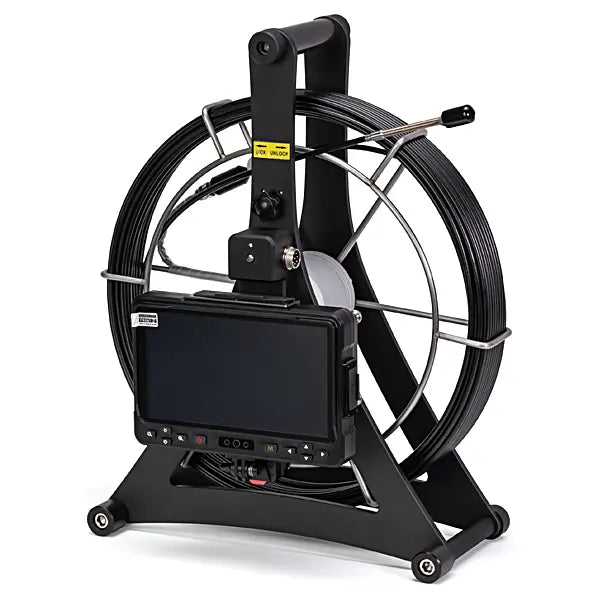

The 30 meter cable is composed of durable fiberglass cable with a 4.5 mm diameter. The rigidity of the cable allows a user to push and pull the camera heads through complex systems easily, yet offers enough flexibility to bend around corners and be coiled up for transportation. The cable comes with a convenient dispenser storage reel and can be packed into its compact travelling case. With an IP67 rating, this cable reel can enhance inspection procedures in even the toughest environments.
The iShot Imaging® Model MX Push LITE is a completely modular system that allows the user to continue to expand their kit to suit the needs of the application.
Specifications
|
7-inch Monitor |
Monitor |
7-inch LCD Display Screen |
|
Resolution Ratio |
1920 x 1080 pixels | |
|
Display Frame Rate |
30 fps |
|
|
Screen Brightness |
400 cd/m2 |
|
|
Touch Screen |
Capacitive Touch Screen |
|
|

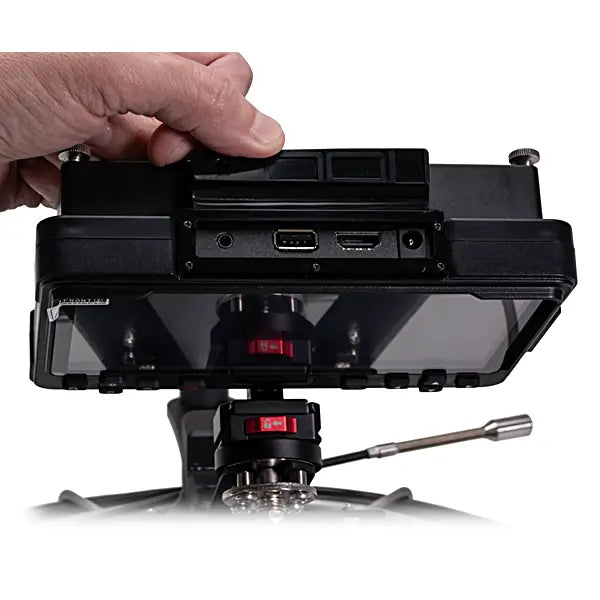

Video Output |
HDMI High Resolution |
|
|
USB Interface |
Data Transmission |
|
|

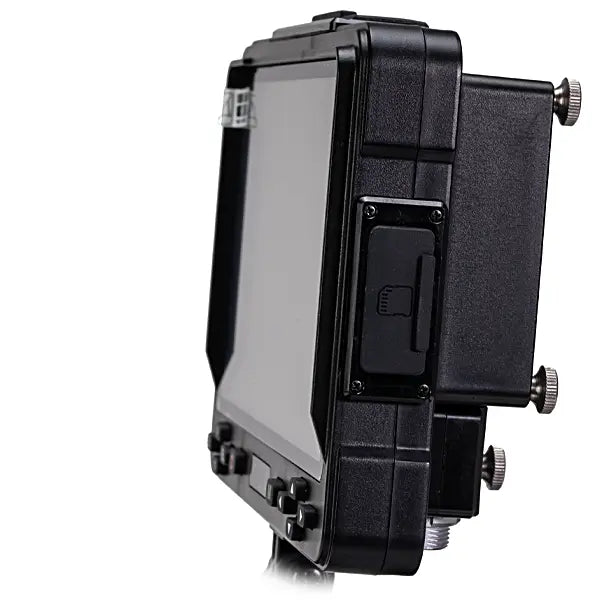

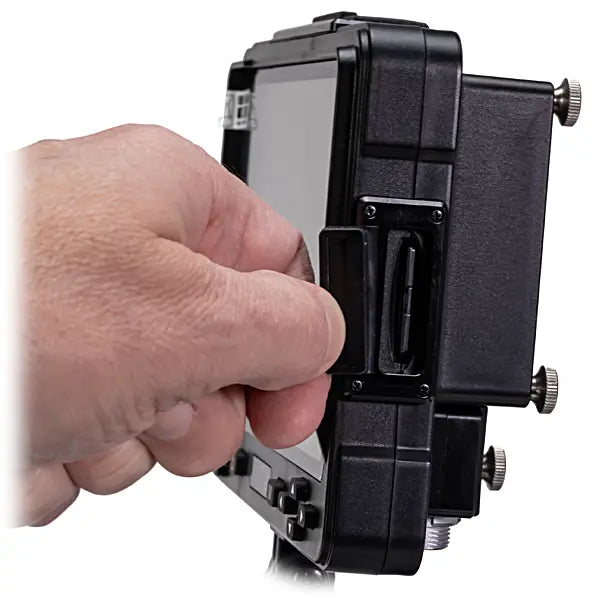

Memory Card |
32 GB |
|
|
Video Resolution |
1280 x 720 pixels |
|
|
Picture Resolution |
1280 x 720 pixels |
|
|

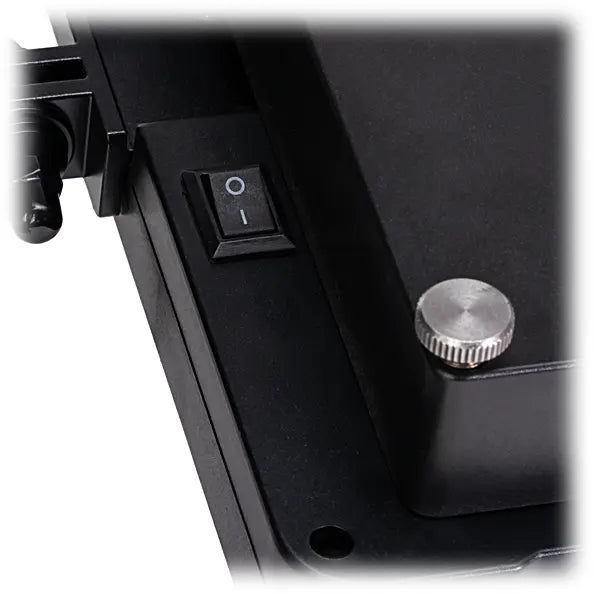

Wifi |
Optional |
|
|

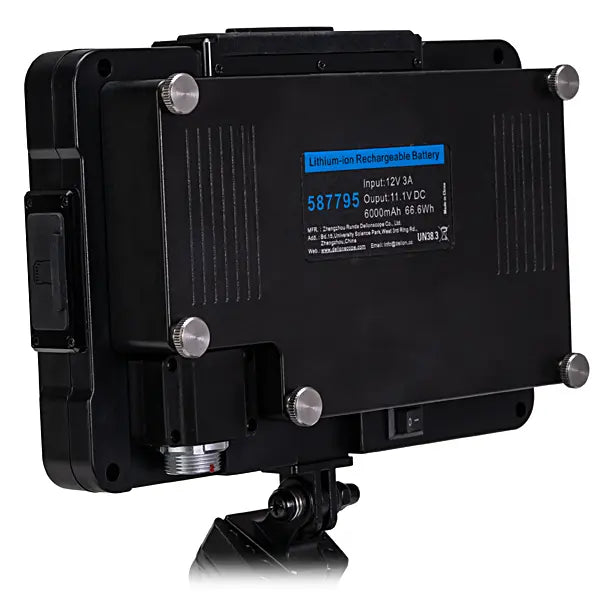

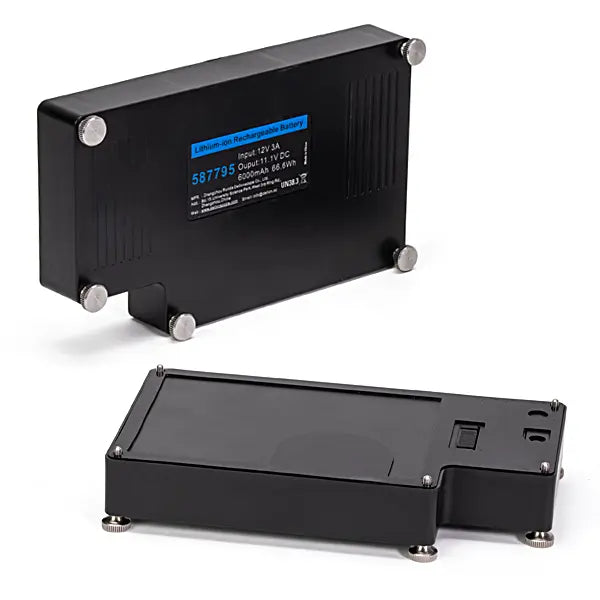

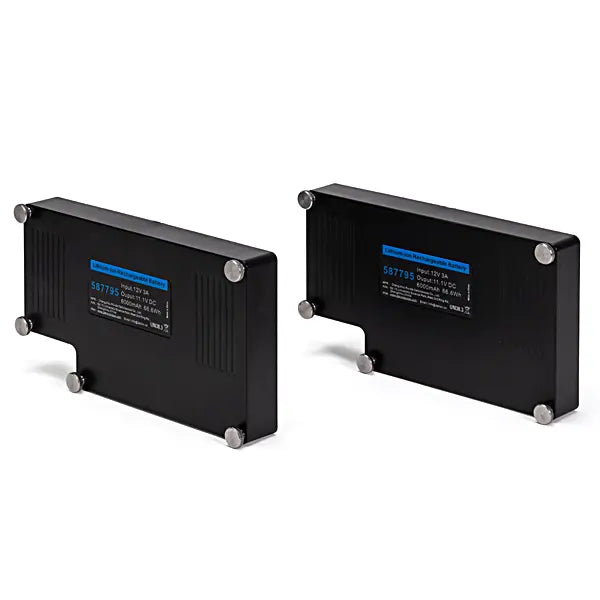

Lithium Electronic Batteries |
11.1V |
|
|
Battery |
Charging 8 hours, Usage time> 5 hours |
|
|
Charger |
12V 3A |
|
|
Operating Temperature |
-10° C -50° C |
|
|
Storage Temperature |
-10° C - 50° C |
| Cameras | Camera Diameter | 8 mm / 12 mm / 16 mm |
| Resolution | 720 x 720 pixels | |
| Light Source | 6/6/12 LEDs with High Brightness | |
| Camera Housing Material | 304 Stainless Steel | |
| FOV | > 120° | |
| Image Sensor | CMOS | |
| DOF | 15 mm - infinity | |
| Ingress Protection | IP67 | |
| Waterproof Depth | 1 meter | |
| 30 m Cable Reel | Insertion Cable Length | 30 meters |
| Cable Diameter | 4.5 mm | |
| Cable Material | Fiberglass | |
| Ingress Protection | IP67 | |
| Meter counting Accuracy | 3% |
