Description
Details

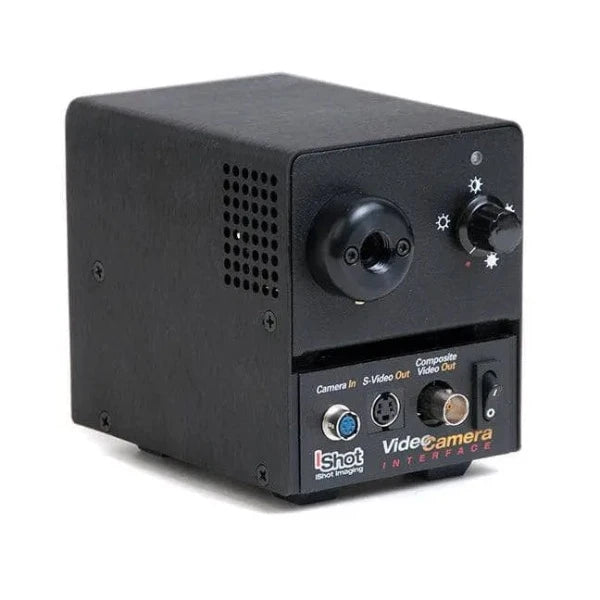

The iShot® VCI system integrates the LS35-LED light source and the Video Camera Interface (VCI) into a small, lightweight unit. The 35-watt LED light source provides an incredible amount of Illumination for most borescope inspections. The 12-volt VCI unit controls the video input and output from the camera head on the front panel. Composite and Y/C video out plugs give the user complete flexibility when choosing a display.
The iShot LS35-LED light source optical design creates a compact and lightweight fiber-optic lightbox with very high output efficacy that is ideal for industrial applications where space is at a premium. This mercury-free, long-life iShot LS35 LED light source has instant-on and extended electronic intensity dimming capabilities. The spectral output below 430nm (deep blue and UV) and above 700nm (near IR) is minimal, which makes it ideal for sensitive applications.
The iShot LS35-LED fiber-optic light source is equipped with an ACMI fiber receptacle, as well as separate Storz and Olympus style adaptors, to accommodate most common fiber cable types. The The iShot LS35-LED conveniently accepts a DC input voltage in portable battery operation.
