The iShot® Imaging Model E Industrial Handheld Video Borescope is a complete industrial handheld video borescope system that performs the most demanding remote visual inspections (RVI). The Model E is an innovative portable video borescope with features such as best-in-class picture clarity, 1:1 image format, screen brightness, and intuitive operation. Clear, precise images are critical for RVI applications such as turbine blade castings, engine blocks, pumps, and metal tubing, the iShot® Imaging Model E Video Borescope delivers clear results.
The Clear 1:1 Advantage
The iShot® Model E has advanced imaging features that aide in difficult RVI inspection applications. The first of its kind, the Model E uses the full potential of its 1:1 CMOS imaging sensor by displaying and saving images in the 1:1 aspect ratio. The 1:1 Model E image is not distorted or stretched to typical 4:3 or 16:9 formats, so image corner distortion is absent on the ultra-clear 4” x 4” display.
Defects, scratches, seam lines, dust, and foreign object debris (FOD) have never been easier to identify with the iShot® Model E Video Borescopes' image enhancement features. Use quick buttons to adjust exposure, sharpness, brightness, and display effects like negative, color, monochrome, and grid filters to make image targets pop in detail for easy and precise inspections.
Wide & Narrow Depth of Field (DOF) Range
The iShot® Model E’s impressive DOF, has a ranges of 5 mm to infinity, allowing inspectors to see more details in-focus. The near focus range allows for focus as close as 5 mm allowing easy clarity throughout the inspection.
Efficient, Controlled Inspections
With direct button control for image brightness, sharpness, exposure, picture effects, zoom, and rotation, an inspector does not need to access a menu screen to make live picture adjustments. The Model E also has a quick startup and probe changing cycle – 10 seconds to release the probe from the monitor, 10 seconds to install a new probe, 10 seconds to power on and see a live image.
Versatile and Numerous Probe Options
The iShot® Model E Platform has a wide variety of probes available, from diameters of 1.2 to 6 mm, with different Directions of View (DOV) available, including direct, side or both simultaneously, (dual). Lengths from 1.0 to 10 meters, allow for a variety of applications to be covered by our versatile platform. Each probe is constructed using strong, resilient tungsten-braid sheathing and is compatible with the iShot® Model E Handheld Video Borescope Monitor.

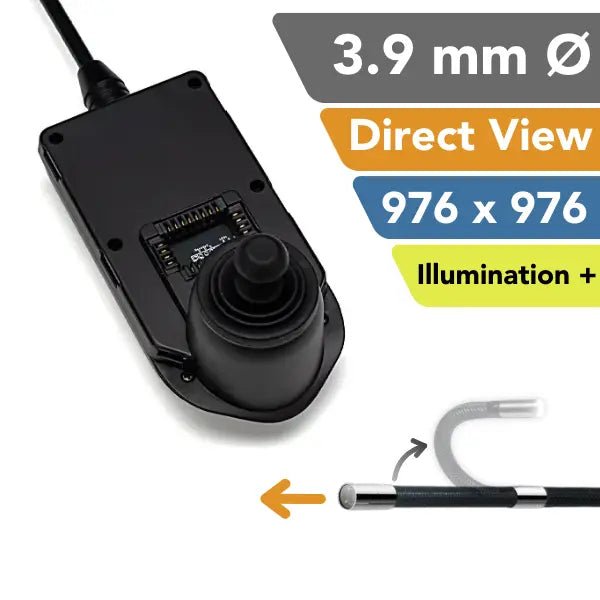

The iShot® Model E Articulating Industrial Video Borescope 3.9 mm OD Direct View probe offers a 976 x 976 pixel resolution and 100,000 Lux fiber illumination for detailed remote visual inspection (RVI) operations. The 0° direction of view makes this system optimal for locating defects as the borescope maneuvers through the part. These features make this scope suitable for inspecting welding seams or interior pipe walls.
*This offering does not include the iShot® Model E Handheld Video Borescope Monitor*
Specifications
|
Diameter |
3.9 mm |
|
Direction of View |
Direct ( 0°) |
|
Articulation Type |
All-Way, Manual |
|
Field of View |
110° |
|
Depth of Field |
5 mm - infinity |
|
Illumination Type |
White fiber illumination |
|
Illumination |
100,000 Lux |
|
Resolution |
976 x 976 pixels |
|
Battery Life |
8-9 hours |
|
Shaft Material |
Tungsten braided mesh |
|
Image & Screen Display Aspect Ratio |
1:1 |
|
Video Output |
USB-C, HDMI |
|
Charging Port |
USB-C |
|
IP Rating |
IP67 |
|
Operating Temp |
-25° to 80°C |
|
Max Humidity |
90% |
Items Included
iShot® Model E Video Borescope Kits include:
* Included only when the Model E Monitor and Probe are ordered together.
• Model E Monitor
• Model E Monitor stand
• Model E Probe (model of choice)
• Charger for monitor (USB-C to USB cable with wall adapter)
• HDMI Mini to HDMI cable
• Accessories: Manual and cleaning cloth
• Carrying Case
