The iShot Model IX Flex is an industrial video borescope that is a versatile remote visual inspection solution with a durable design. Best suited for industrial inner-diameter pipe inspections at long lengths, this model operates in various heavy industries such as power generation and sewer & water pipe inspections. The iShot Model IX Flex is available in probe lengths of 6, 8, 10, and 15 meters, featuring a detachable handle and four-way manual articulation to aid in navigation in hard-to-access areas and corners. The interchangeable camera tips provide inspection viewing focus options, ensuring that all critical details are captured.

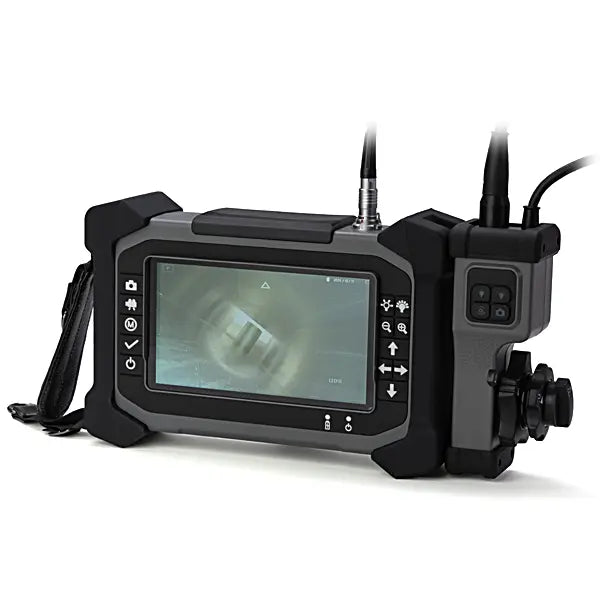

The accompanying iShot Model IX Flex Monitor is a rugged tablet used as the video borescope's control, viewing, and recording device. With an intuitive touchscreen, the monitor has advanced software capabilities, including negative-image toggling and grid layover functions, enhancing user image analysis. Furthermore, the iShot Model IX Flex has adjustable settings for exposure and white balance, ensuring that even the smallest details are captured and analyzed. The system supports multiple languages, making it accessible to many users.
Specifications
|
Controller Specifications |
|
|
LCD Monitor |
7 inch |
|
Resolution |
1280*720 |
|
Frame Rate |
30 fps |
|
Screen Brightness |
400cd/m² |
|
Screen Contrast |
800 |
|
Touch Screen |
Capacitive Touch Screen |
|
Video Output |
HDMI high resolution |
|
USB Interface |
Data Transmission |
|
Memory Card |
64G SD |
|
Video Resolution |
1280*720 |
|
Picture Resolution |
1280*720 |
| Software | Negative, grid |
|
Language |
Multiple Languages |
|
Li-ion |
11.1V 7000mAH |
|
Charger |
12V 1A |
|
Charging Time |
8 hours |
|
Battery Working Time |
>5 hours |
|
Operation Temperature |
-10C~50C |
|
Storage Temperature |
-10C~50C |
|
Articulation Probe Specifications |
|
|
Inspection Cable Length |
6, 8, 10, 15 meters |
|
Inspection Cable Materials |
Tungsten braiding |
|
Bending Angle |
>90° |
|
Inspection Cable Diameter |
8.2mm |
|
Camera Diameter |
8.4mm |
|
Image Sensor |
CMOS 1/4 |
|
Pixels |
720P |
|
FOV (field of view) |
>120° |
|
DOV (depth of view) |
25 mm to infinity/10 - 100 mm |
|
Materials of the camera surface |
Titanium alloy |
|
IP Rating |
IP64, IP67 |
