Description
Details

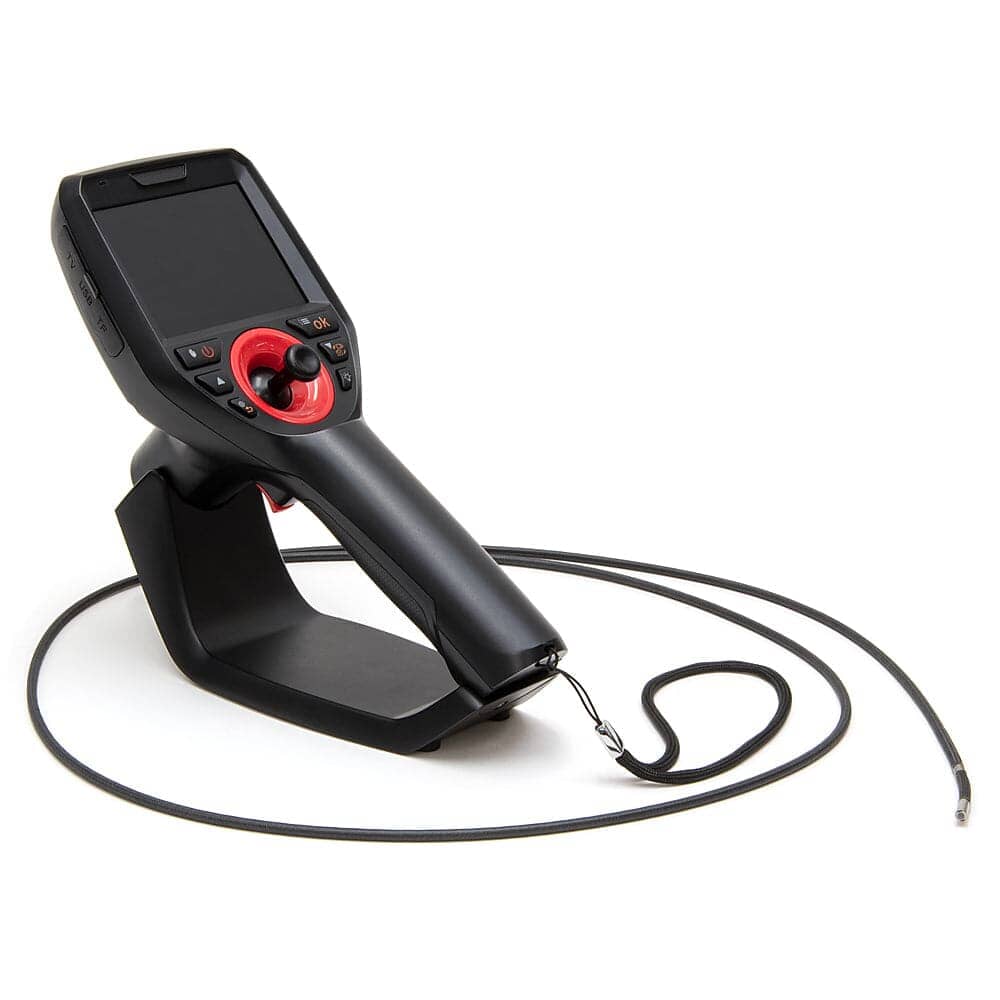

The iShot® VistaScope 2.8 mm x 1 m, with 4-way Casting Articulation was developed after years of careful study and development of advanced technology, independent innovation, and research to address the needs of the Investment Casting Industry. It's portability and ease of use, make it an easy to pick up inspection tool, that is designed for the challenges of the casting environment. With it's 360° arbitrarily oriented joystick, extremely tight 160° of articulation, finding the critical core passages is well within reach. It's lightweight, and portable design, including it's vibrant 3.5" LCD screen, allow inspection to take place in any area of the facility.
Specifications
|
Camera Diameter(mm) |
Φ2.8 mm |
|
Camera Material |
Titanium alloy |
|
Camera Pixel |
160,000 |
|
Depth of Field Standard |
10mm～100mm |
|
Angle of Field |
120° |
|
Image Magnification |
4X |
|
Light Control |
7 levels |
|
Bright/Chroma/ Contrast Ratio Adjustment |
0-16 levels |
|
White Balance |
Auto WB |
|
Bending Control |
360°all-way mechanical control/tow-way articulation |
|

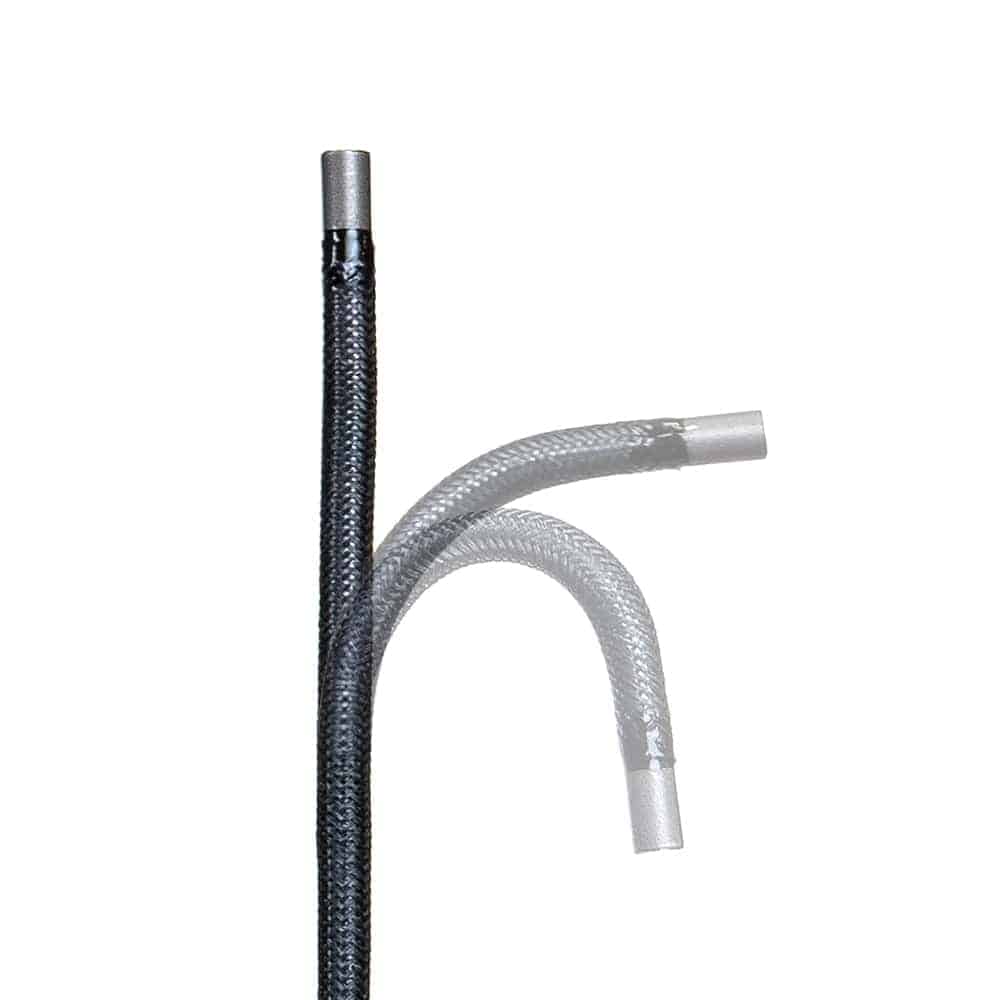

Bending Angle |
≥160° |
|
Effective Working Length |
1 m |
|
Insert Tube |
Quadruple tungsten-braided tubes |
|
Language |
Chinese, English, Russian, ect. |
|
Display Highlight |
3.5 inches TFT LCD Display |
|
Resolution |
400 X 400 |
|
Image/Video Format |
JPEG/AVI |
|
Image Resolution |
400 X 400 |
|
Host Structure |
Handheld Design |
|
Memory Standard SD card |
8G, Maximum: 32G |
|

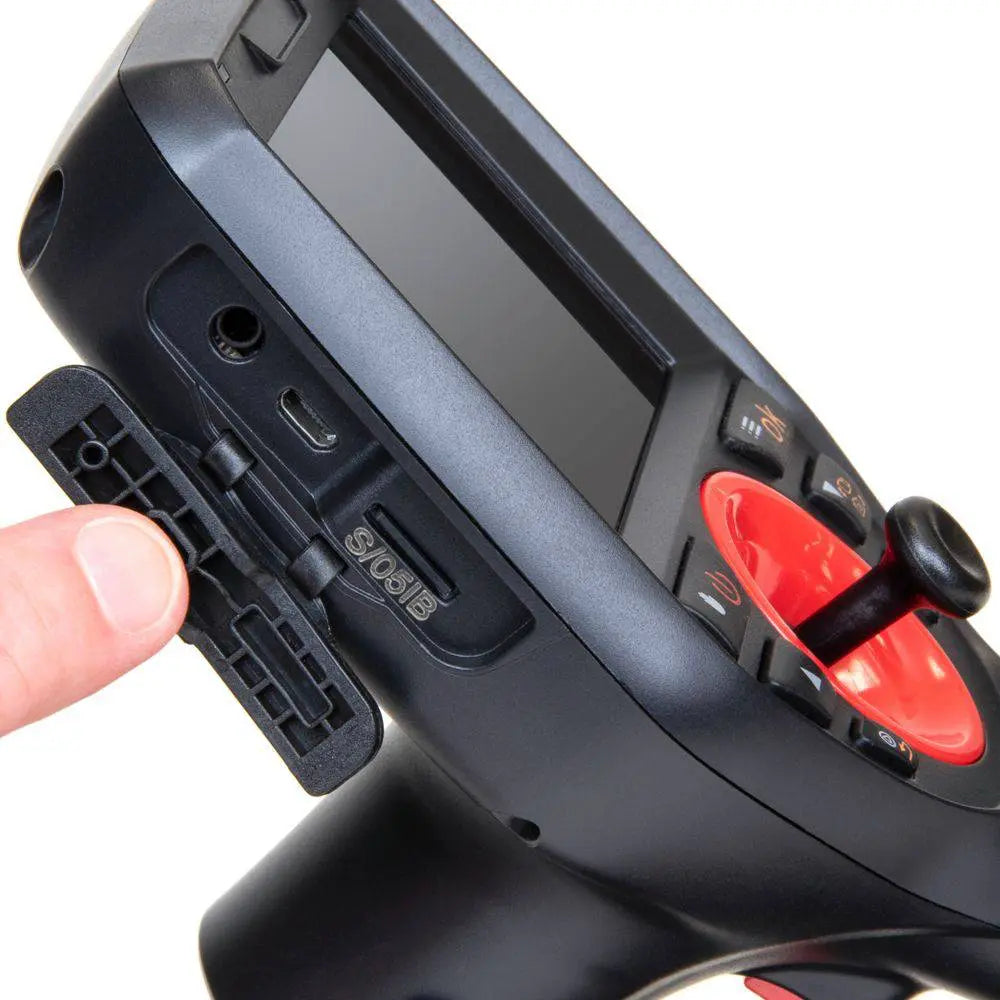

Data I/O port |
Micro-USB port |
|
Video output port |
mini HDMI |
|
Probe articulation control |
The speed of the probe articulation is controlled by the rocker. Release the rocker to complete |
|
Waterproof Camera/Object glass/Tubes |
IP67 |
|
Host Working Time |
≥4.5 hours |
|
Weight |
≤0.45kg (with batteries） |
|
Power Supply |
Rechargeable lithium battery (dismountable) |
|
Battery Capacity |
4.2V,3200mAh |
|
Power Consumption |
3W Charging Parameters DC5V, Maximum current:1A |
|
Warranty Period |
Free charge for one year, life-long maintenance. |
|
Brand |
iShot® |
|
OD |
2.8 mm |
|
Length |
1 m |
|
DOV |
0 degree |
|
LED |
NO |
