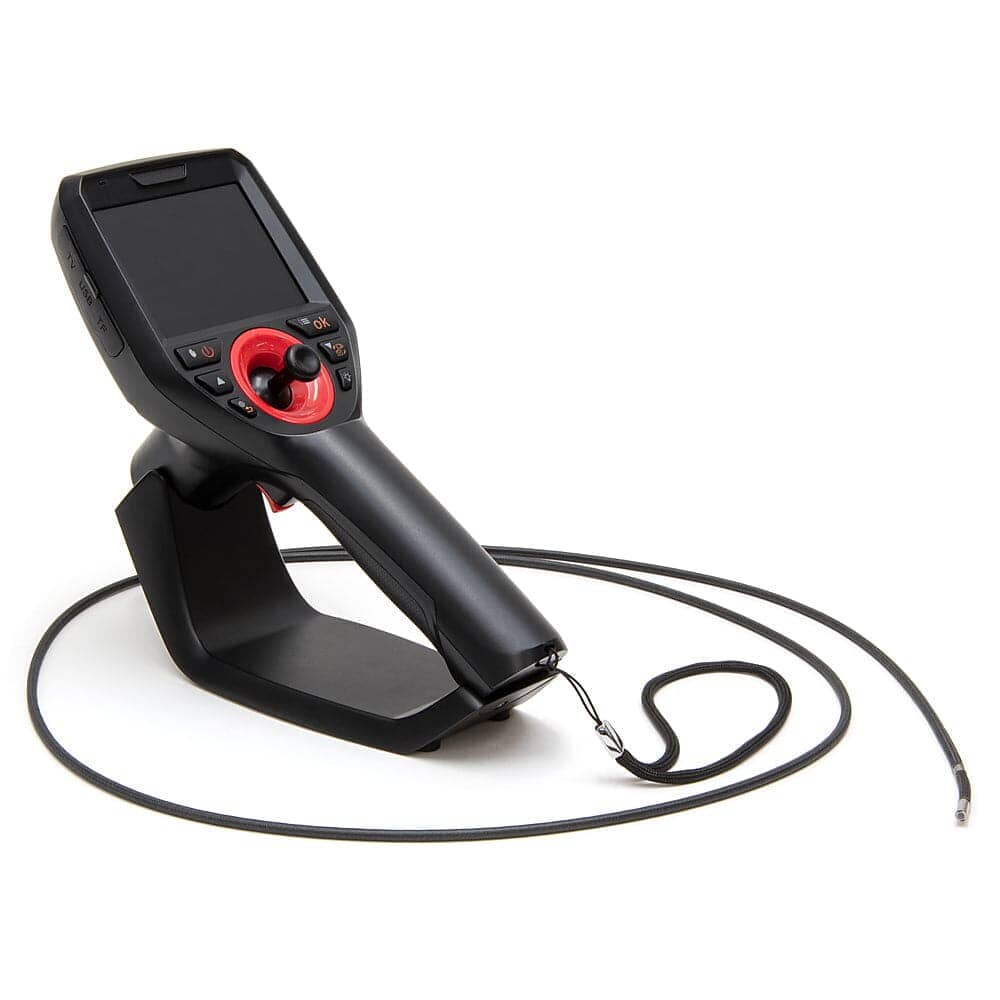

iShot® VistaScope 2.8 mm x 1.5 m 4-way Casting Articulation

iShot Cameras Vendor Logo SKU: EM14090

• 2.8 mm Diameter
• 1.5 m Working Length
• Equipped with a 3.5 inch Display
• Photo capture function while recording video
• The insertion tube and probe are waterproof, oil resistant and corrosion resistant
• Tungsten braided tube
• Sapphire protective lens

Description

Details

The iShot® VistaScope 2.8 mm x 1.5 m, with 4-way Casting Articulation was developed after years of careful study and development of advanced technology, independent innovation, and research to address the needs of the Investment Casting Industry. Its portability and ease of use, make it an easy-to-pick-up inspection tool, that is designed for the challenges of the casting environment. With its 360° arbitrarily oriented joystick, and extremely tight 160° of articulation, finding the critical core passages is well within reach. Its lightweight, and portable design, including its vibrant 3.5" LCD screen, allow the inspection to take place in any area of the facility.



Specifications

Camera Diameter(mm)

Φ2.8 mm

Camera Material

Titanium alloy

Camera Pixel

160,000

Depth of Field Standard

10mm100mm

Angle of Field

120°

Image Magnification

4X

Light Control

7 levels

Bright/Chroma/ Contrast Ratio Adjustment

0-16 levels

White Balance

Auto WB

Bending Control

360°all-way mechanical control/tow-way articulation

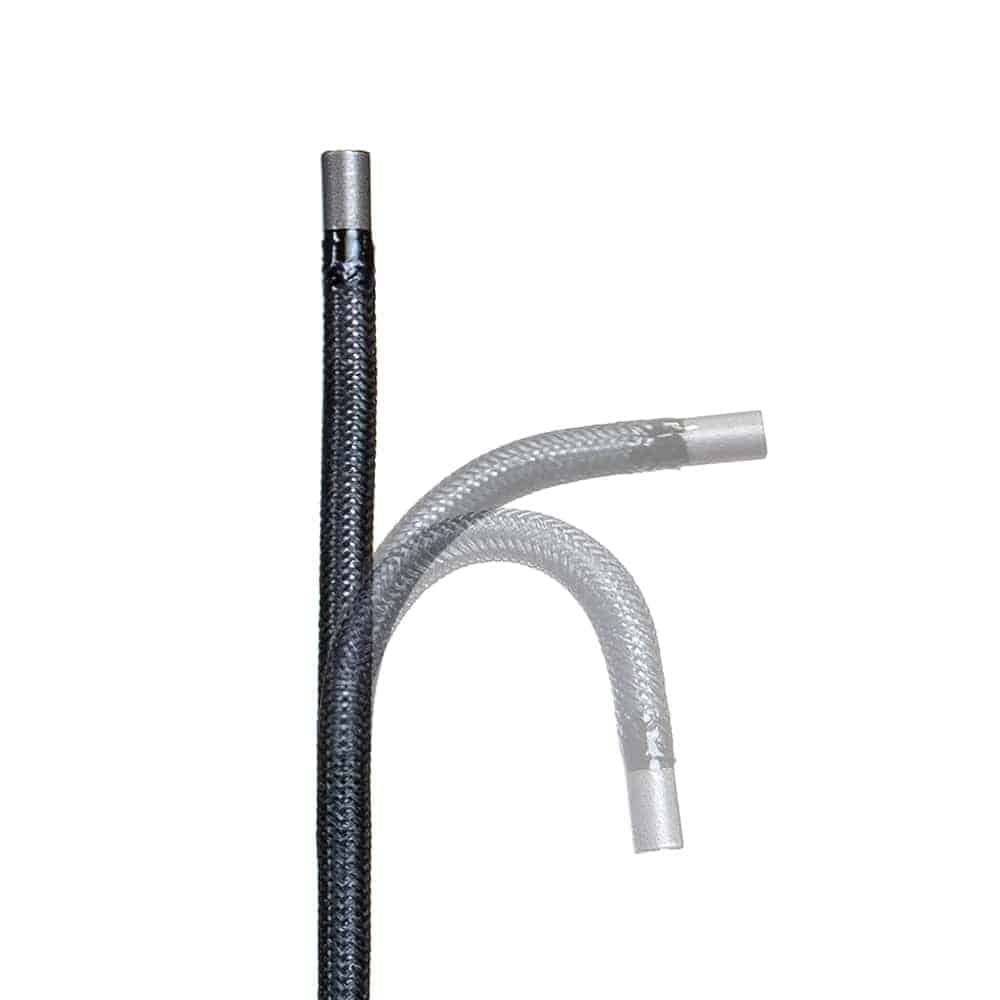

Bending Angle

≥160°

Effective Working Length

1.5 m

Insert Tube

Quadruple tungsten-braided tubes

Language

Chinese, English, Russian, ect.

Display Highlight

3.5 inches TFT LCD Display

Resolution

400 X 400

Image/Video Format

JPEG/AVI

Image Resolution

400 X 400

Host Structure

Handheld Design

Memory Standard SD card

8G, Maximum: 32G

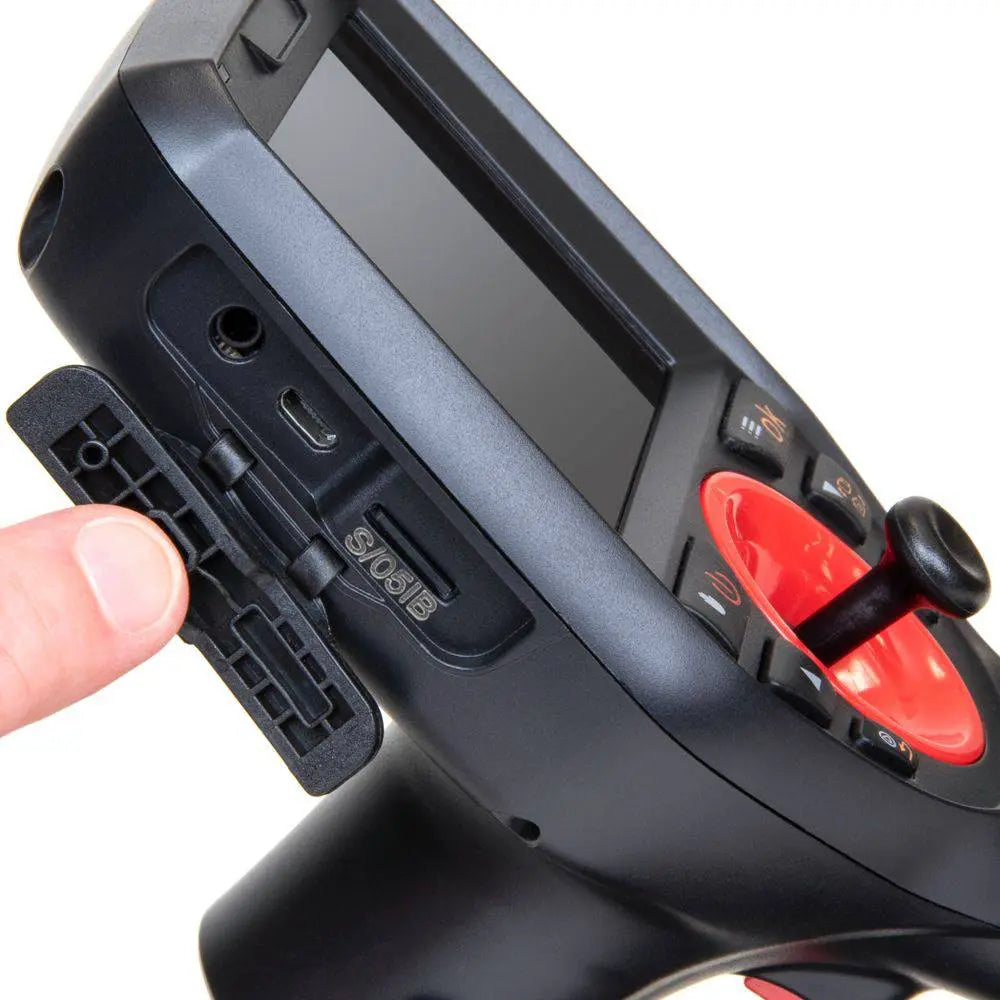

Data I/O port

Micro-USB port

Video output port

mini HDMI

Probe articulation control

The speed of the probe articulation is controlled by the rocker. Release the rocker to complete

Waterproof Camera/Object glass/Tubes

IP67

Host Working Time

≥4.5 hours

Weight

≤0.45kg (with batteries

Power Supply

Rechargeable lithium battery (dismountable)

Battery Capacity

4.2V,3200mAh

Power Consumption

3W Charging Parameters DC5V, Maximum current:1A

Warranty Period

Free charge for one year, life-long maintenance.

Brand

iShot®

OD

2.8 mm

Length

1.5 m

DOV

0 degree

LED

No
