iShot® VistaScope LED Industrial Borescope 2.0 mm OD Direct View

Ishot Vendor Logo SKU: EM17492

• OD: 2mm (0.079")
• Length: 1M
• DOV: 0°
• FOV: 120°
• DOF: 2-50 mm
• Articulation: 360 Degree/ 4-way controlled by joystick
• Illumination: LED 2,500 Lux

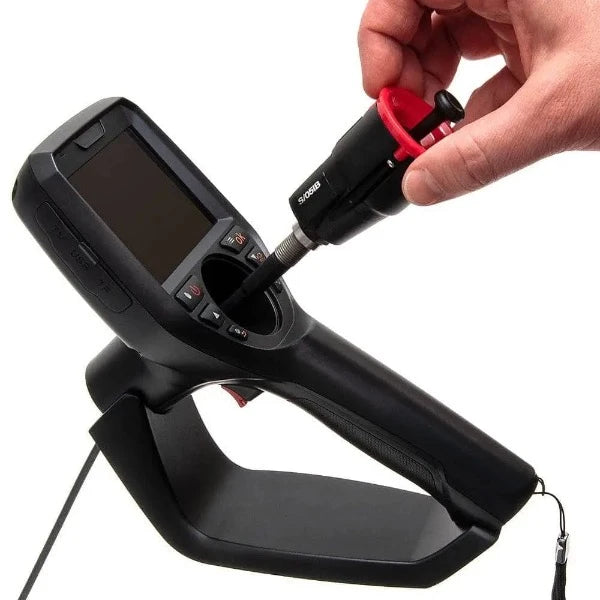

• Industry pioneered insertion tube replacement technology can rapidly replace insertion tube of different specifications within 20 seconds.
• Built-in 3.5 inch Display: 640 X 480
• Photo capture function while recording video
• Output: USB/HDMI/SD Card Slot
• Tungsten braided tube
• Sapphire protective lens

VistaScope - Length: 1.0 m (3.280')
Kit: Full System
iShot

Description

Details

iShot® VistaScope LED Industrial Borescope 2.0 mm OD Direct View

The iShot® VistaScope 2.0 mm with 4-way Casting Articulation with LED Illumination was developed after years of careful study and development of advanced technology, independent innovation, and research to address the needs of the Investment Casting Industry. Its portability and ease of use are designed for the challenges of the casting environment. With its 360° joystick, and extremely tight 160° of articulation, finding the critical core passages is well within reach. Its lightweight, and portable design, including the vibrant 3.5" LCD screen, allow the inspection to take place in any area of the facility.

Specifications

Diameter 2 mm
Lighting mode LED
Length 1 m
Camera Pixels 160,000
Image resolution 640*480
Optical System Illumination 2500 lx
4500 lx (non-articulation)
Depth of field 2-50 mm
View Angle 120°

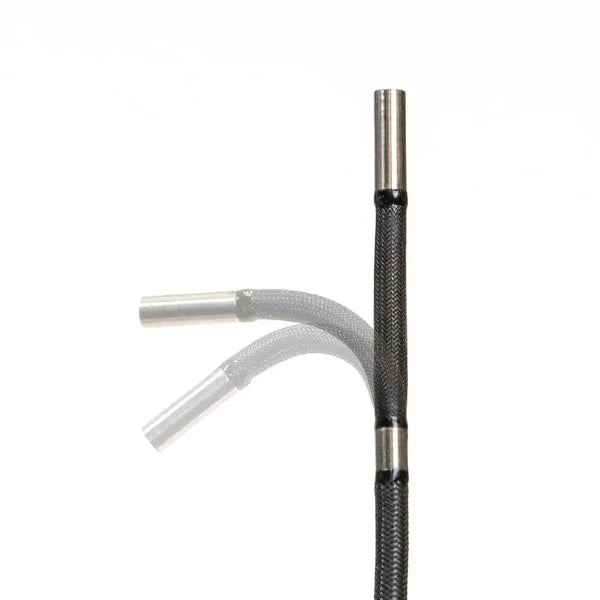

Articulation Manual Control joystick 360°all-way articulation
Tube material Tungsten wire braided wear-resistant tube
Basic parameters: host
Display size 3.5 inch
Power Supply DC, battery 18650 Lithium battery: 3.7V,3200mAh,working time ≥4H
AC Power Support online charging, through USB cable+adaptor

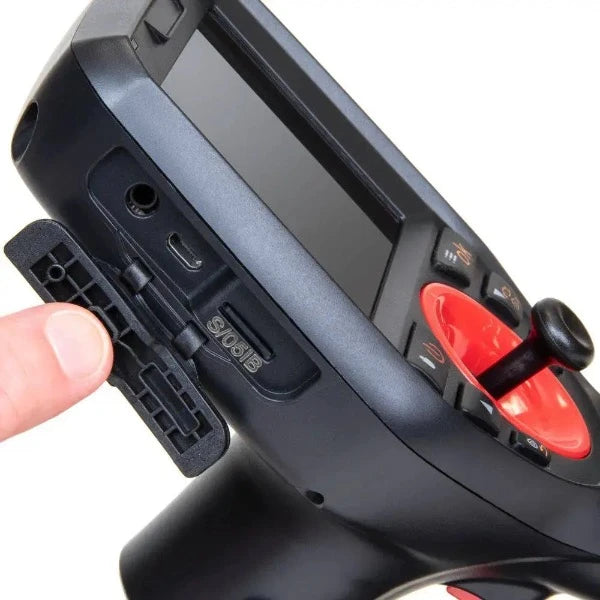

Output Port USB,HDMI,SD card slot
Weight (KG) 0.6kg(Including instrument case:3.05kg)
Product Size (cm) 24*10.2*12.6

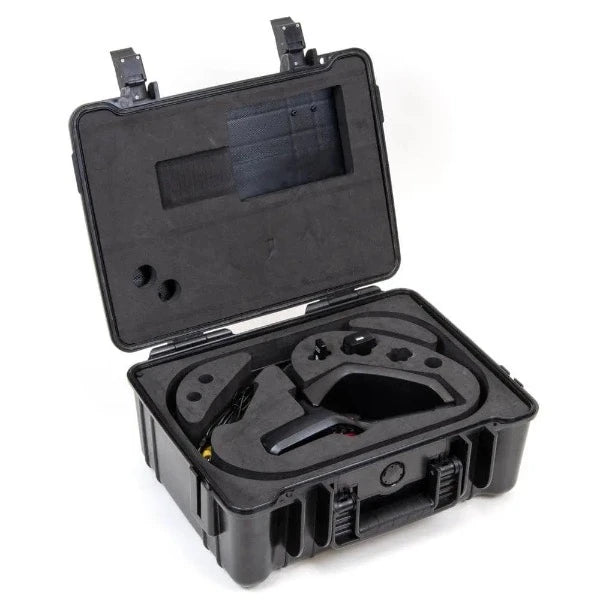

Instrument case size (cm) 41.5*33.5*15
Carton Size (cm) 43*35*16
Warranty Period 12 months
Software functions
Recording function 1. Image capture and video recording, able to capture image during video recording.
2. 4x zoom in real-time inspection,
3. Video playback fast-forward and rewind
Assistant measurement Tracking cross cursor with scale
Image flip 90°/ 180°/ 270° rotation
Image method Color, Black-and-white, Negative film
Brightness adjustment 0-6 level
File format Image: JPG/BMP, Video: MP4
Storage SD card 8GB supplied (optional 32 GB)



More Info

Brand iShot
OD 2 mm (0.079")
Length 1.0 m (3.280')
DOV 0 degree
FOV 120 degree
DOF 2-50 mm
LUX 2,500 (articulating), 4,500 (non-articulating)
LED Yes
