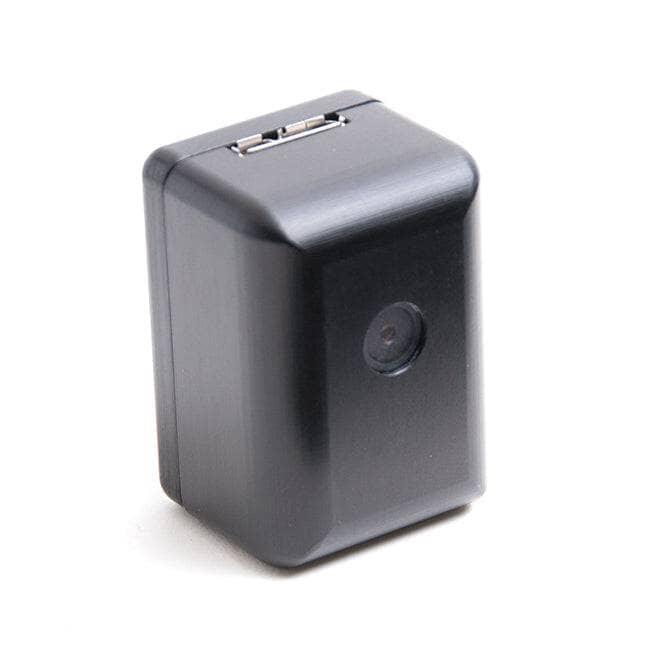

Integrated Sony FCB-MA130 Micro High Definition Camera with USB 3.0, Vertical Configuration
iShot® XBlock® Mini MA130 USB 3.0 Camera, Vertical Configuration, features 16x digital zoom, plug n' play operation, facial recognition, image stabilization, 1/2.45-type Exmor™ CMOS sensor, one-push auto focus (AF) function and wide dynamic range all in an indoor, compact housing with 1/4 - 20 mount.
The Sony FCB-MA130 camera is equipped with facial recognition and 13 MegaPixel image stills. With its modest dimensions, the Sony FCB-MA130 contributes to reducing the size of finished products, and this can be useful in wide range of applications. Incorporating a 1/2.45-type Exmor™ CMOS sensor and Sony’s original image signal processor, the Sony FCB-MA130 HD CMOS camera enables users to capture Full HD resolution (1080p/30) movies and 13-megapixel still images. The Sony FCB-MA130 features several other useful functions, including embedded Image Stabilizer and Face Detection, thanks to Sony’s original image signal processor. Outstanding compactness coupled with high-quality images - with these capabilities, Sony anticipates this remarkable camera is set to open up brand new industrial applications.
Supports Still Images and Video
The Sony FCB-MA130 supports high-quality images. It achieves Full HD (1080p/30) quality moving pictures and 13-megapixel still images in a single unit.
Superb Picture Quality
Thanks to Sony’s renowned high-quality Exmor image sensor and Sony’s original image signal processor, the Sony FCB-MA130 delivers superb picture quality in both still images and moving pictures. In addition to these technologies, picture quality is optimized by precise adjustment previously developed by Sony during production of mobile phone camera modules.
The Sony FCB-MA130 camera offers a one-push auto focus (AF) function for ease of use.
Sony’s Original Image Processor
Many useful features are achieved thanks to Sony’s original image processor
USB 3.0 Connection and Technical Information
The camera takes its power from the USB host computer allowing single cable operation.
The iShot® XBlock® USB 3.0 interface board connects to the FCB-MA130 via an FCC cable. It connects to the CMOS parallel interface and the I2C control lines. The FPGA on board convert’s commands received via USB, to the appropriate I2C protocol commands on the camera.
A DMA channel on the FPGA is used to read the data and send it to the USB3.0 channel.
The hardware also adds the appropriate UVC header allowing easy interfacing on the host PC. Standard UVC controls are implemented and other functions can be handled via extended commands that implement register access.
All resolutions and frame rates supported by the camera including still images can be streamed via USB3.0. Including 1080p @ 30fps.
InterTest, Inc. is an Authorized National Systems Integrator for Sony’s Visual Imaging Products division.
