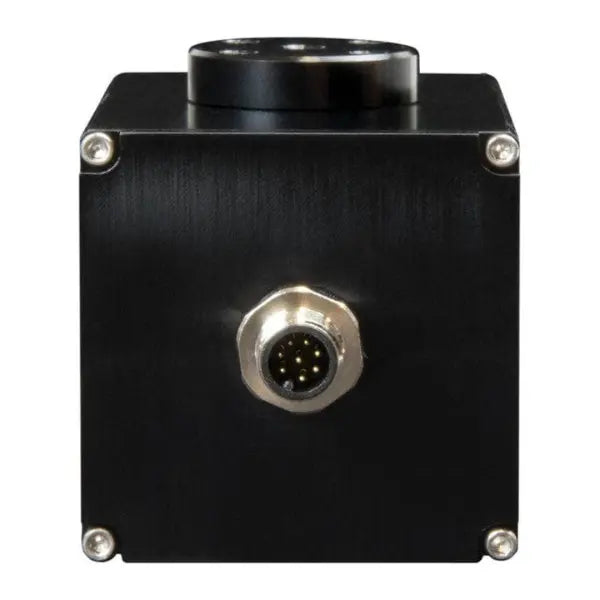

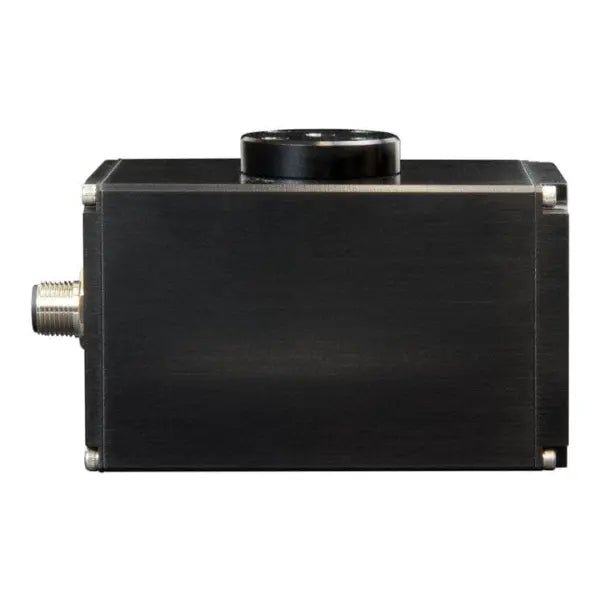

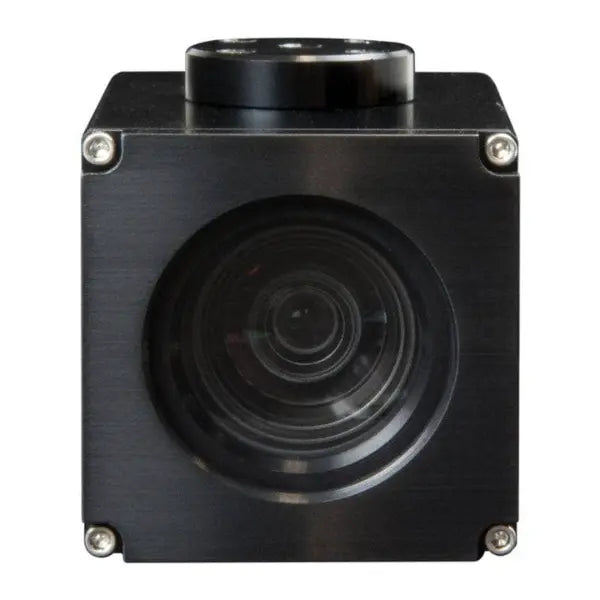

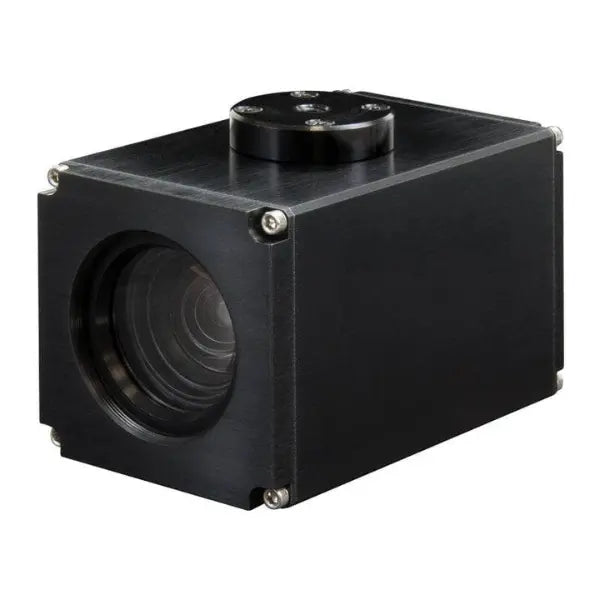

XBlock® Outdoor IP67 XBC-KZ10 Camera with 10x Zoom & 12x Digital Zoom - CVBS Out
The iShot® XBlock® KZ10, CVBS, IP67 Camera is a small 10x multi-output block camera selected to produce CVBS video output in this design.
The XBC-KZ10 Block Camera uses a 1/3" 2.1M Progressive CMOS Image sensor that produces FULL HD 1080p/60fps high quality images. The sensor uses progressive scanning with a Wide Dynamic Range function to allow the camera to perform in dark and light environments. This with low-noise imaging from the Noise Reduction function give the XBC-KZ10 versatility to go along with high performance. Inquire for HD output.
Other notable features are an automatic Infrared (IR) Cut-Filter for dark environments, motion detection, privacy zone masking and in-picture text display.
Specifications
|
Image Sensor
|
1/2.8”Exmor CMOS image sensor
|
|
Effective Pixels
|
2.38 million pixels (CVBS 760H)
|
|
Output Format
|
1080p/60,1080p/50,1080p/30, 1080p/25, 720p/30, 720p/25
|
|
Sync System
|
Internal
|
|
CVBS scale
|
16:9 / 4:3
|
|
LVDS mode
|
Single / Dual
|
|
Min. illumination Day
|
0.5 Lux @ F1.6
|
|
Night (IR-cut filter on)
|
0.1 Lux @ F1.6
|
|
S/N ratio(AGC off , DSS off)
|
More than 52 dB
|
|
Optical Lens
|
|
|
Zoom Magnification
|
10x
|
|
Focal Length
|
5.1 to 51.0 mm
|
|
Horizontal-Angle
|
54.0°(W) ~ 4.9°(T)
|
|
Vertical Angle
|
31.0°(W) ~ 4.0°(T)
|
|
Diagonal Angle F-value
|
68.0°(W) ~ 6.7°(T)
|
|
F-value
|
F1.6(W ) ~ F1.8(T)
|
|
Focus
|
Auto / Manual / Interval / One
|
|
IR correction
|
Standard/IR Light
|
|
D&N mode
|
Auto / Day (Color) / Night (BW) / External-H / External-L
|
|
Night Color
|
Off/On
|
|
White Balance
|
Auto / ATW / Indoor / Outdoor / Push / Manual
|
|
AE mode
|
Auto / Shutter Priority / Iris Priority/ Bright / Manual
|
|
Brightness
|
1~ 20
|
|
AGC Limit
|
Off ~ 58dB
|
|
Manual Shutter
|
X32~x2,1/25(30)/1/50(60) ~ 1/30000
|
|
Manual AGC
|
Off ~ 58dB
|
|
Manual Iris
|
F1.2 ~ F19, Close
|
|
Sens-Up
|
Off ~ 32fields
|
|
OSD
|
Menu OSD (English / Japanese / Russian / Spanish / German /France/ Portuguese)
|
Downloads
KZ10 Manual
