XtendaCam® HD AIR - 10x Zoom

XtendaCam Brand Logo SKU: EM19700

• Lightweight carbon fiber pole, Extendable to 24'
• High Definition (1080p30) resolution
• 10x optical zoom
• Image stabilization
• Wireless video and control with tablet/phone
• Photo & video recording
• Motorized +90 ° to -45° tilt

XtendaCam

Description

Details

XtendaCam® HD AIR - 10x Zoom

The XtendaCam® HD AIR 10x Zoom is a wireless camera system designed to view, illuminate, and record inaccessible areas in minutes. Weighing less than 10 lbs total, the XtendaCam® HD AIR can be quickly set up and extended to 23.5 feet on anti-spin, carbon fiber telescoping poles. It uses commercially available, rechargeable 12V batteries that give the system 2 hours of operational time.

The XtendaCam® HD AIR has a powerful 1/2.8” Exmor HD CMOS image sensor, 1080p/30 resolution, 10x motorized zoom lens, motorized tilting, image stabilization, and integrated LED illumination, making it the ideal remote visual inspection (RVI) tool for transportation structures, building structures, snubbers, power generation facility inspection, and law enforcement/military operations.

Quick, single-inspector operation

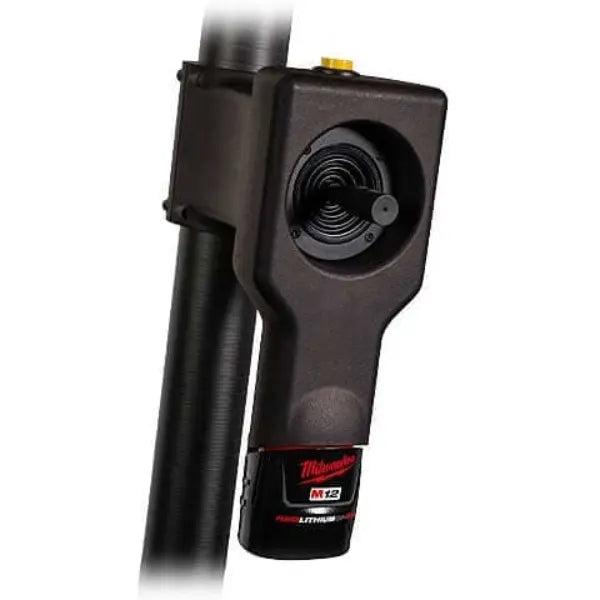

On average, it takes 4 people an entire shift to construct the scaffolding necessary for structural inspections. Save time and money by skipping scaffolding setup entirely with the XtendaCam® HD AIR. In 10 minutes, an operator can identify and record an area of interest. A foot gimble at the base of the telescoping poles gives the system extra stabilization, while a robust joystick for camera zoom and tilt control provides an easy and efficient user experience.

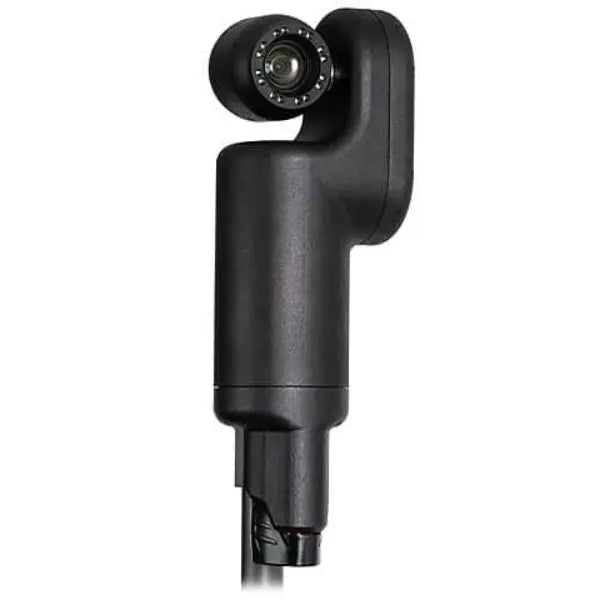

Wireless Camera Head

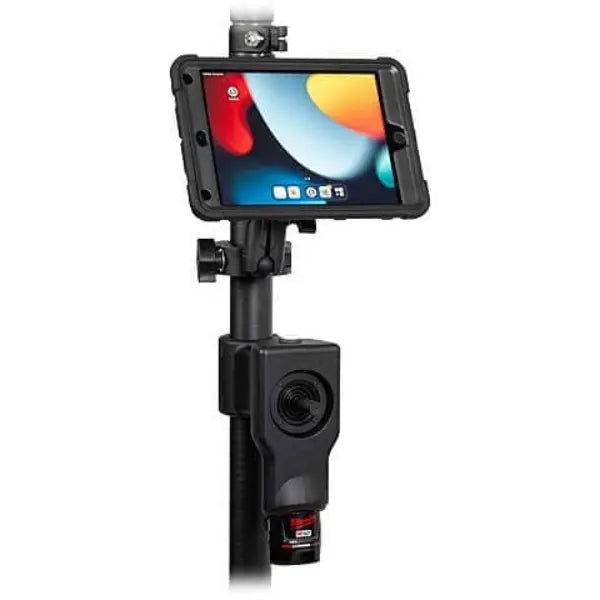

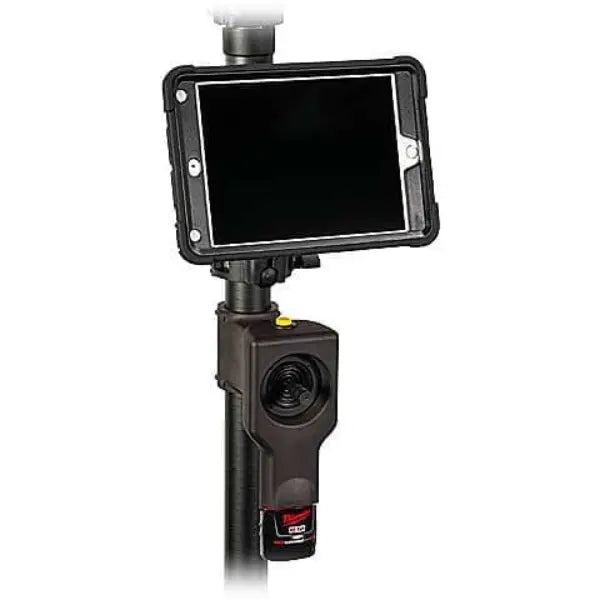

The XtendaCam® HD AIR's electronic interface creates a WiFi access point, allowing operators to connect from an iOS/Android tablet or phone. Wirelessly view, record, and control the camera head from any touchscreen interface allowing for quick inspections and fast inspection videos and image uploading or sharing.

Safer workplace

Lower workplace incidents and keep your workforce safer with the XtendaCam® HD AIR. No longer must your personnel climb scaffolding or ladders to make important structural assessments. Critical inspections can be done right from the ground out of harm's way.

Specifications

Tilt Range +90 °to -45°
Pole Extension Range  6.5 feet to 23.5 feet
Pole Material Carbon Fiber
Weight <10 lbs
User Interface iOS / Android
Wireless Video Output 12Mbps, H.264 (WiFi)
Display iOS / Android Tablet
Multiple Viewers Supports up to 4 separate WiFi devices that can all record photos and videos
Image / Video Capture Touch screen GUI for video and photo capture
Storage Media Internal device storage of your choice
Battery Life 2 Hours
IP Rating IP50
Operators 1-2
Battery Consumer-available, rechargeable 12V
Lighting Joystick Digital Proportional Control



Camera Specifications

Image Sensor

1/2.8” Exmor CMOS image sensor

Effective Pixels

2.38 million pixels

Output Format

1080p/30

Sync System

Internal

CVBS scale

16:9 / 4:3

LVDS mode

Single / Dual

Min. Illumination Day

0.5 Lux @ F1.6

Night (IR-cut filter on)

0.1 Lux @ F1.6

S/N ratio(AGC off , DSS off)

More than 52 dB

Optical Lens


Zoom Magnification

10x

Focal Length

5.1 to 51.0 mm

Horizontal-Angle

54.0°(W) ~ 4.9°(T)

Vertical Angle

31.0°(W) ~ 4.0°(T)

Diagonal Angle F-value

68.0°(W) ~ 6.7°(T)

F-value

F1.6(W ) ~ F1.8(T)

Focus

Auto / Manual / Interval / One

IR correction

Standard/IR Light

D&N mode

Auto / Day (Color) / Night (BW) / External-H / External-L

Night Color

Off/On

White Balance

Auto / ATW / Indoor / Outdoor / Push / Manual

AE mode

Auto / Shutter Priority / Iris Priority/ Bright / Manual

Brightness

1~ 20

AGC Limit

Off ~ 58dB

Manual Shutter

X32~x2,1/25(30)/1/50(60) ~ 1/30000

Manual AGC

Off ~ 58dB

Manual Iris

F1.2 ~ F19, Close

Sens-Up

Off ~ 32fields

OSD

Menu OSD (English / Japanese / Russian / Spanish / German /France/ Portuguese)
