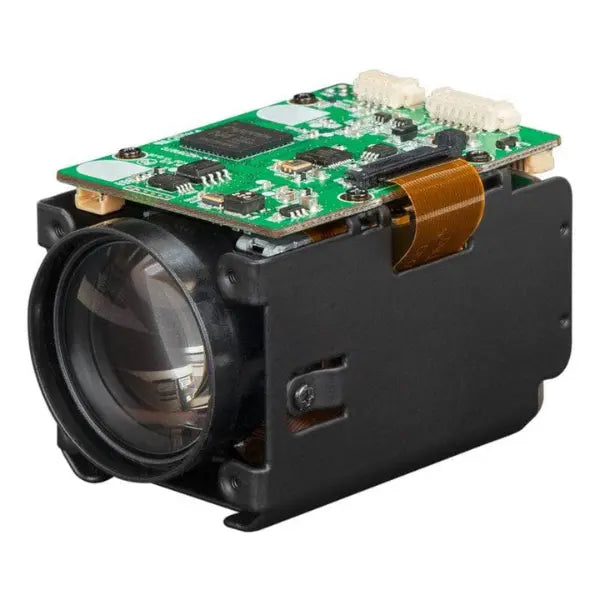

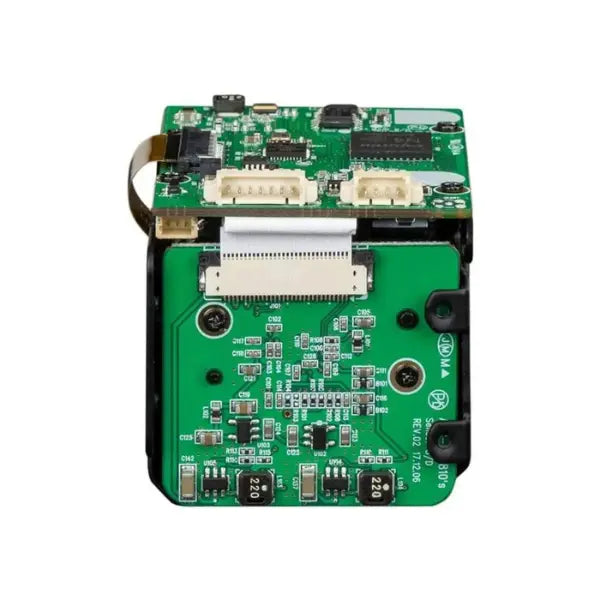

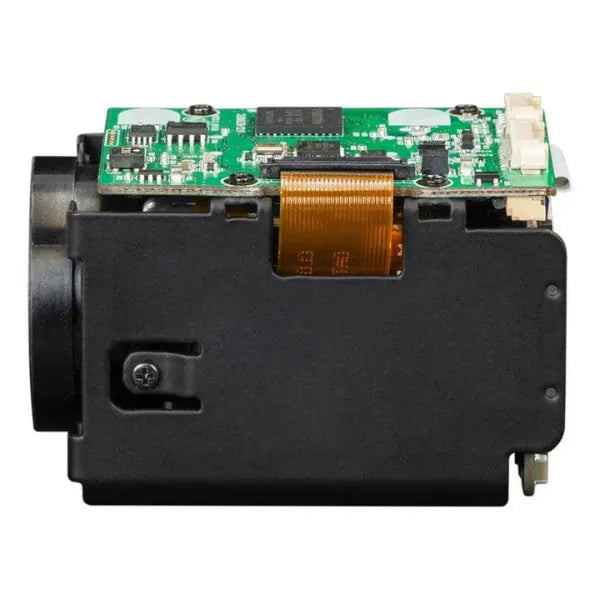

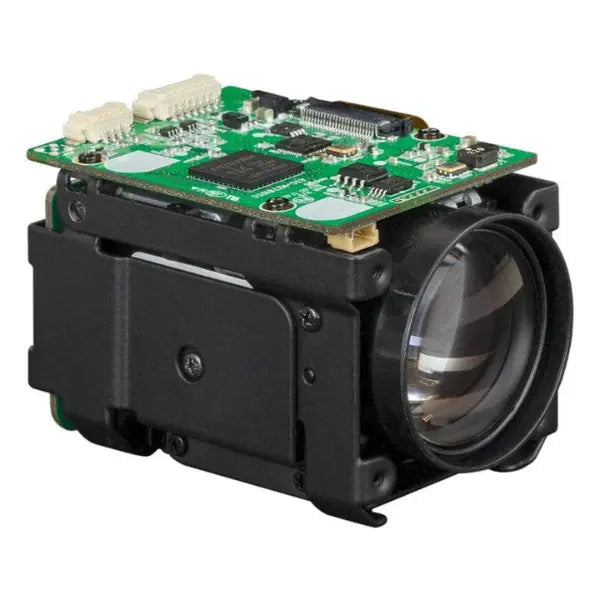

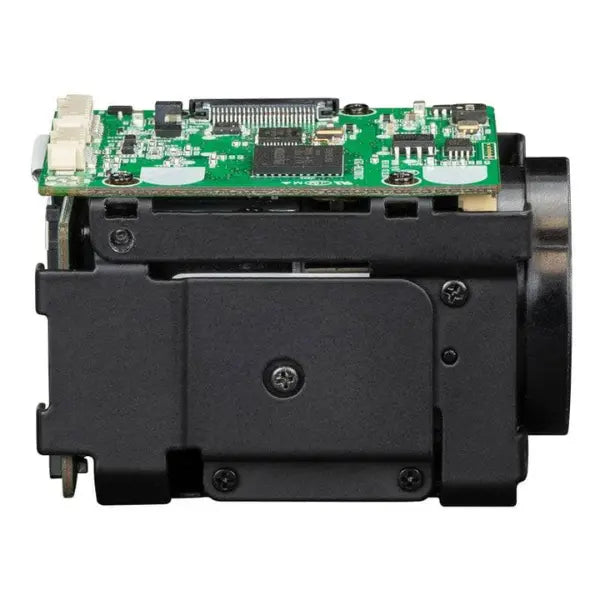

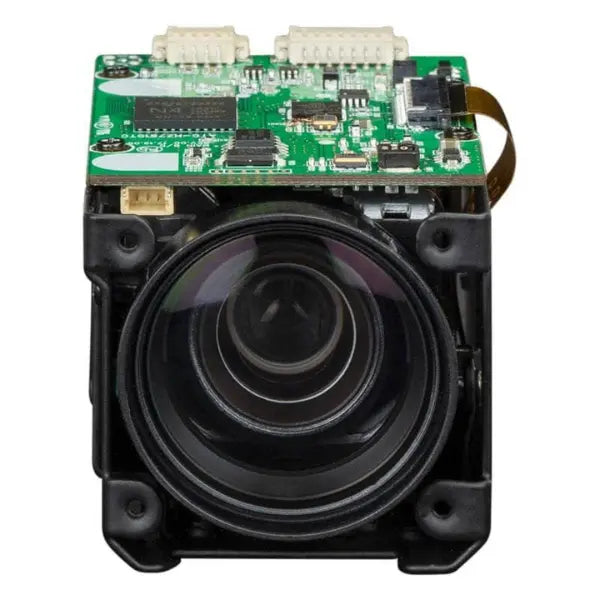

KT&C ATC-HZ7810C-T 10x Zoom Rolling Shutter Block Camera

KTC Block Cameras Vendor Logo SKU: EM14034MFG: ATC-HZ7810C-T

• 1/3” 2.1M Progressive CMOS Image Sensor that supports FULL HD
• 1080p/30, 1080p/25,720p/30, 720p/25
• Zoom lens with 10× optical zoom and F1.6 aperture
• Infrared Cut-Filter (ICR)
• Privacy Zone Masking function
• Motion Detection function is available
• TVI /CVBS output


Description

Details

KT&C ATC-HZ7810C-T 10x Zoom Rolling Shutter Block Camera

The KT&C ATC-HZ7810C-T 10x Zoom Rolling Shutter Block Camera is a multi-output zoom block camera module with a compact footprint, day/night capabilities, and powerful processing power. Offering up to FULL HD 1080/60fps digital signal (via TVI or AHD) and composite analog signal (via CVBS), this block module is engineered to suit many vision applications from legacy analog to state-of-the-art HD digital.


The KT&C ATC-HZ7810C-T 10x Zoom Rolling Shutter Block Camera sensor combines a state-of-the-art processor with progressive scanning, wide dynamic range, noise reduction, and automatic Infrared Cut-Filter operations. With a 10x optical motorized zoom lens, this block camera produces high-quality images of the toughest-to-view applications.


Specifications

Camera Sensor/Output

Image Sensor

1/2.8” Exmor CMOS image sensor (STARVIS)

Effective Pixels

2.13 million pixels (1945(H) x 1097(V))

Video Outputs EX-SDI(V1.0) / HD-SDI / CVBS, LVDS, TVI, AHD, TVI/CVBS

Output Format

LVDS/SDI/CVBS: 1080p60/50/30/25, 720p60/50/30/25, 1080i60/50

AHD: 1080p30/25

TVI: 1080p30/25, 720p30/25

Sync System

Internal

CVBS scale

16:9 / 4:3 (CVBS 720H)

LVDS mode

Single / Dual

Min. Illumination Day

0.05 Lux @ F1.6

Min. Illumination Night (IR-cut filter on)

0.03 Lux @ F1.6

Min. Illumination S/N ratio

More than 52 dB

Optical Lens


Zoom Magnification

10x

Focal Length

5.1 to 51.0 mm

Horizontal-Angle

54.0°(W) ~ 4.9°(T)

Vertical Angle

31.0°(W) ~ 4.0°(T)

Diagonal Angle F-value

68.0°(W) ~ 6.7°(T)

F-value

F1.6(W) ~ F1.8(T)

Focus


Control Mode Auto / Manual / Interval / One Shot(=Zoom Trigger, One Push) / PRESET
Focal Range Infinity~ 1.0m(T)~0.01m(W)

IR Correction

Standard/IR Light

Illumination

D&N mode

Auto / Day (Color) / Night (BW) / External-H / External-L

Night Color

Off/On

White Balance

Auto / ATW / Indoor / Outdoor / Push / Manual

Exposure

AE mode

Auto / Shutter Priority / Iris Priority/ Bright / Manual

Brightness

0 ~ 14

AGC Limit

-3dB ~ 58dB

Manual Shutter

x32~x2,1/25(30)/1/50(60) ~ 1/30000

Manual AGC

-3dB ~ 58dB

Manual Iris

F1.2 ~ F19, Close

Sens-Up

Off ~ 32fields

OSD

Menu OSD (English / Japanese / Russian / Spanish / German /France/ Portuguese)



KT&C Rolling Shutter Block Cameras

KT&C ATC-HZ7810C-T 10x Zoom Rolling Shutter Block Camera (856.66 kB)

KT&C ATC-HZ7810C-T 10x Zoom Rolling Shutter Block Camera Manual (3.50 MB)
