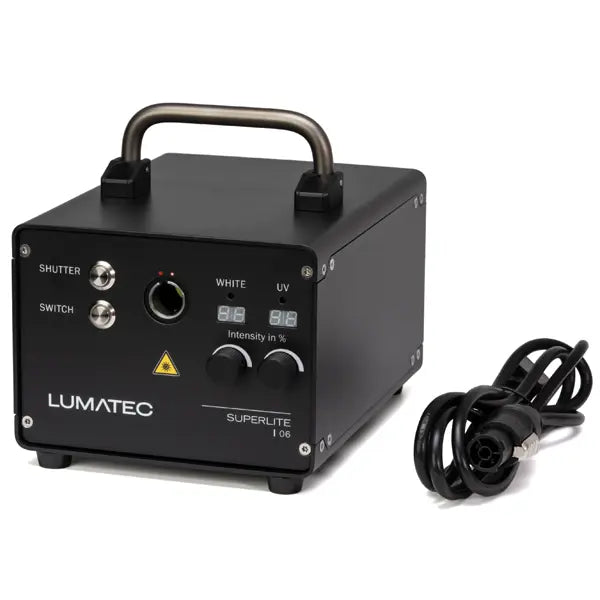

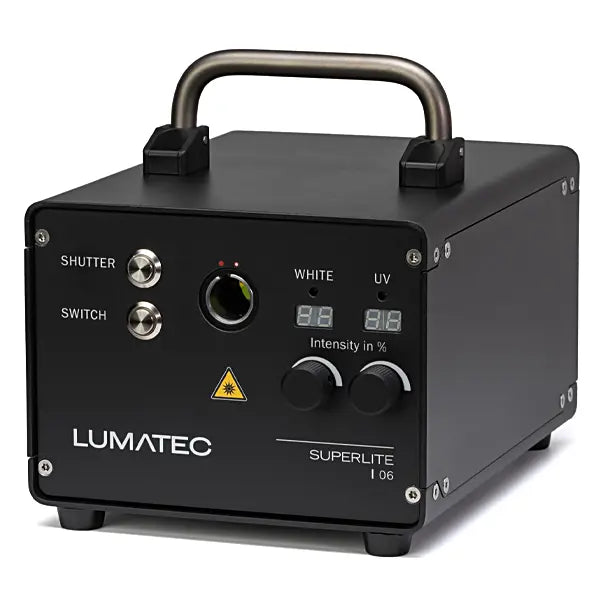

Enhance your inspection capabilities with the Lumatec Superlite I 06, the premier ultraviolet and visible light source meticulously designed for non-destructive testing (NDT) and remote visual inspection (RVI) applications. Developed in collaboration with leading aerospace and aviation manufacturers, the Superlite I 06 is a compact, compliant, and highly efficient inspection tool.
Key Features
- Highly Effective Inspection: Leverages the purest UV light, making it your first choice for fluorescent or liquid penetrant inspection (FPI).

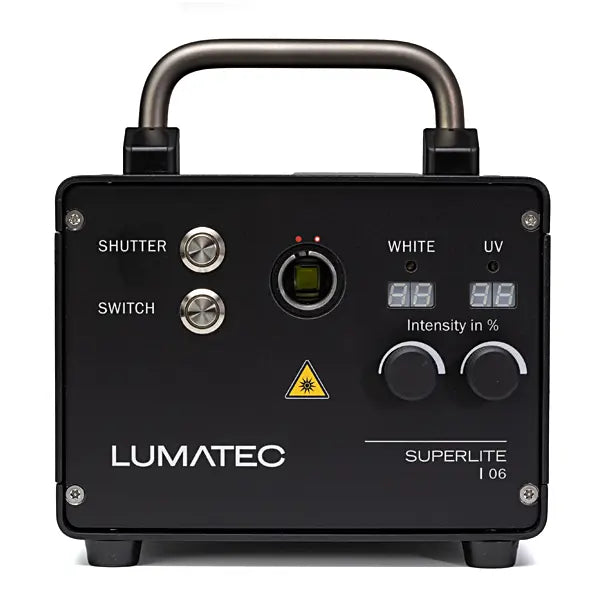

- Dual-Mode Convenience: This product features two LED modules for independent UV and white light control via a front-panel button or an optional footswitch.

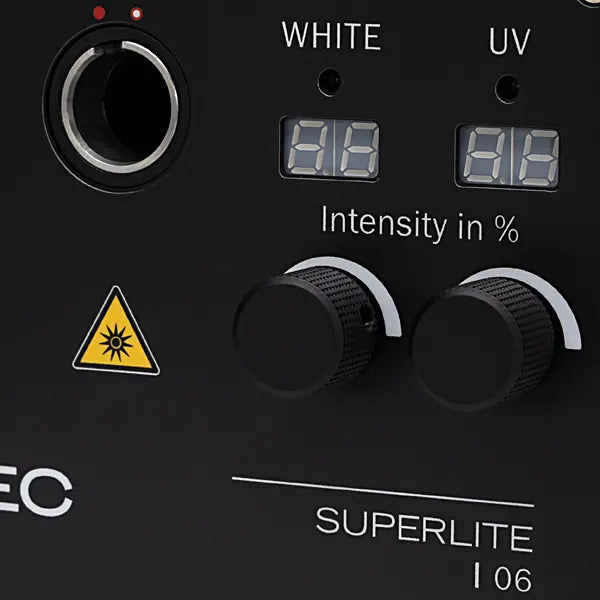

- Optimal Control: Both LED modules offer digitally controllable intensity levels, with settings retained after powering off, ensuring intuitive, straightforward operation.
- Versatile Power Options: Lower output UV LED module options accommodate different workplace requirements, especially beneficial for short working distances.
- Unmatched Flexibility: Interchangeable adapters make the light source compatible with the most common light guides across various manufacturers.
Compatible Bayonet Light Guide Adapters
- ACMI
- Lumatec D
- Machida
- Olympus
- Schölly/Volpi
- Storz
-
Wolf
Specifications
| Optical Properties | |
| UV Max Optical Power | 1800 mW |
| UV Working Distance* | 9 - 44 cm (3.5 - 14 in) |
| UV Peak Wavelength | 365 ± 5 nm |
| UV Residual White Light | < 5 lx |
| White Light Max Optical Power | 1500 mW |
| White Light Color Temperature | 5700 K |
(Measured with Series 300 Liquid Lightguide 5 mm x 1500 mm)
*standard compliance, corresponding to irradiance of 5000 / 1200 μW/cm2
| Technical Data | |
| Power Supply | 110 – 240 VAC/50-60 Hz |
| Power Consumption | 45 W max |
| LED service life | > 10,000 hours |
| Dimensions (W x H x D) | 150×135×210 mm |
| Weight | 2.5 kg |
| Sound pressure level (at 1 m) | 45 dB(A) |
| Operating temperature | +10 °C to +35 °C |
| Storage temperature | -10 °C to +60 °C |
