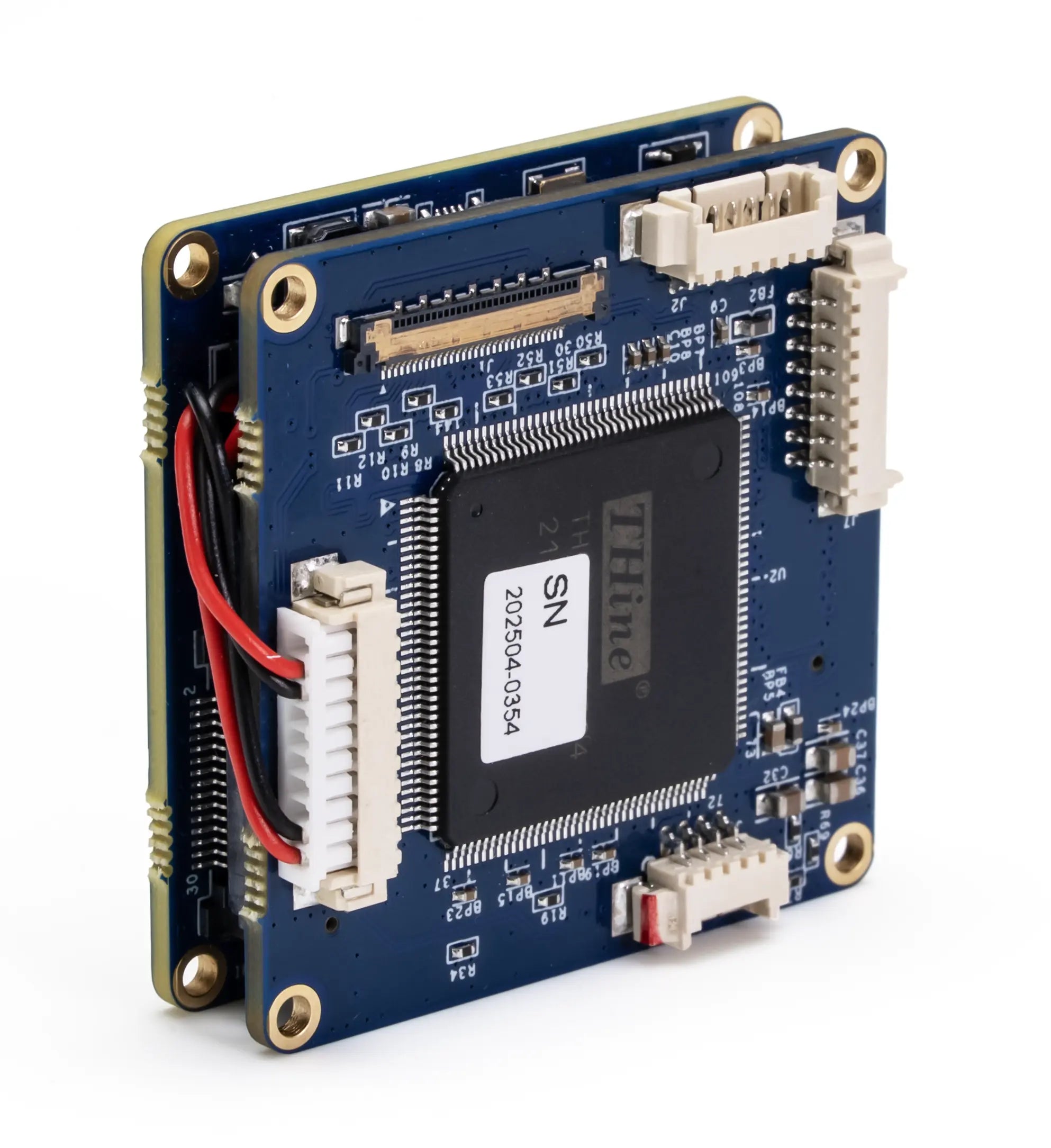

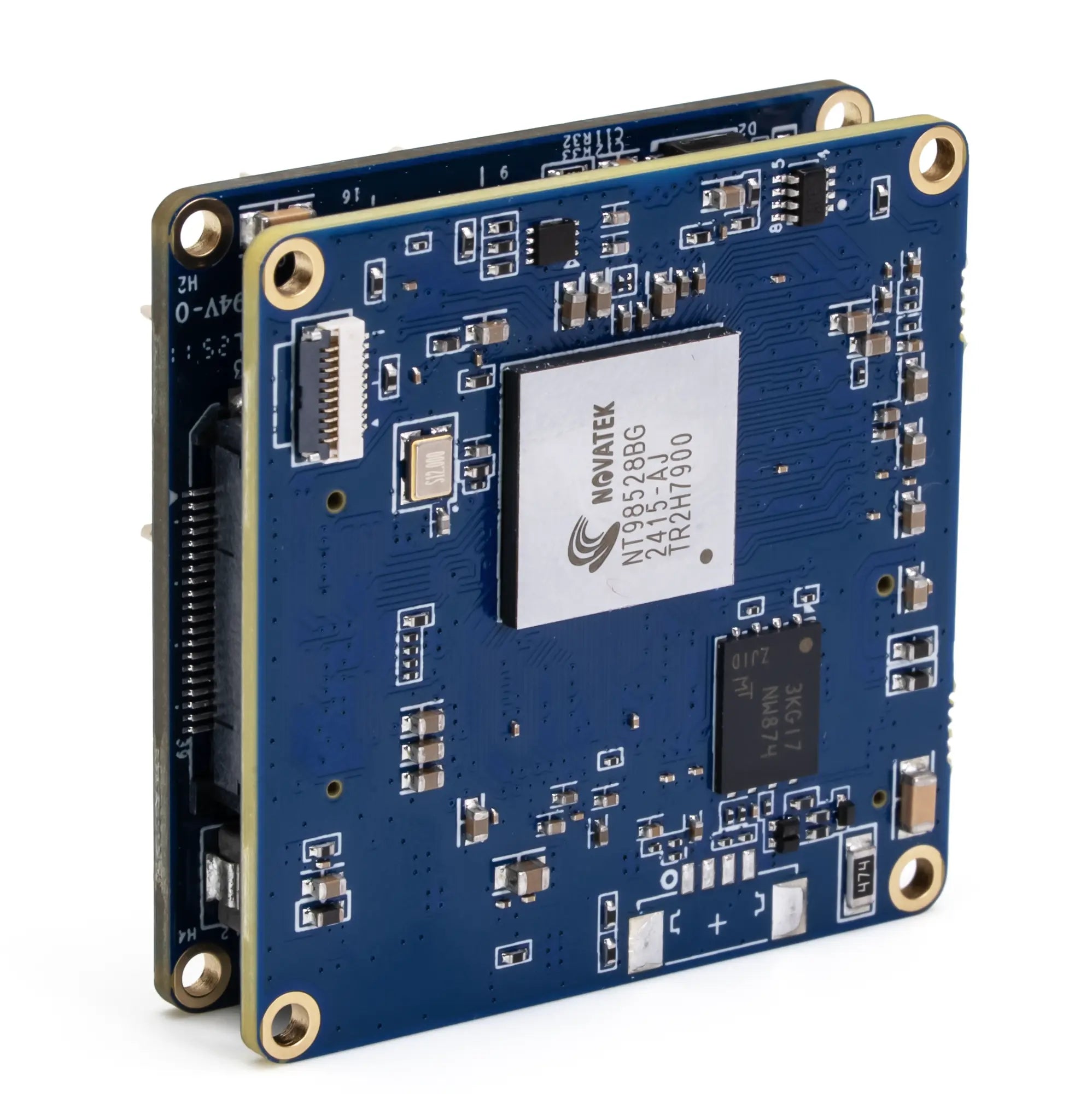

The ME-330 LVDS to IP Encoder Board is an advanced video encoder solution tailored for high-definition video applications within security, broadcasting, and industrial sectors. This versatile board converts LVDS (Low-Voltage Differential Signaling) input into high-quality IP video streams over H.264/H.265/MJPEG video compression, making it ideal for remote monitoring and large-scale video deployment for surveillance, robotic, and industrial vision applications.
Key Features:
- High-Performance Video Encoding: Supports H.264, H.265, and MJPEG compression formats with triple streaming + SVC stream capability, ensuring optimal video quality and compression to meet diverse network and storage requirements.
- High Definition Video Input: Accepts up to 2MP (1920 x 1080 at 30fps) video via a 30-pin micro coaxial cable, supporting both 4/8 lane LVDS inputs (Sony LVDS standard).
- Advanced Video Output: Features outputs including BT1120/BT601 16-bit, catering to various display and recording equipment.
- Robust Bitrate Control: Offers adjustable bitrate settings for main and secondary streams, ranging from 512 kbps to 10000 kbps, adjustable via CBR/VBR modes for tailored stream management.
Connectivity and Integration:
- Networking: Equipped with Ethernet 10/100 Mbps that supports IPv4, IPv6, ensuring seamless integration into existing network infrastructures with protocols such as IGMP, ICMP, ARP, and RTSP.
- Audio Capabilities: Includes audio input/output with G.711 u-law audio compression, enhancing video streams with high-quality synchronous audio.
- Extended Functionality: Features alarm in/out capabilities, RS-485 integration for PTZ control, and USB interfaces for expanded connectivity and control options.
User Interface and Software:
- Broad Protocol Support: Fully compliant with Onvif Profile S and ITX property protocols, facilitating integration with a wide range of network video recorders and management software.
- Advanced Security Features: Includes motion detection, region of interest, and privacy masking functionalities that offer enhanced security and user control.
Upgrade your video networking capabilities with the ME-330 LVDS to IP Encoder Board from InterTest, Inc. to integrate an encoder solution that boasts performance, compatibility, and resilience.
Specifications
| Input Interface | Sony LVDS 4/8 lanes via 30-pin micro-coax cable |
| Output Interface | BT1120/BT601 16bit |
| Video Encoding | H.264, H.265, MJPEG |
| Resolutions | 1920x1080, 1280x1024, 1024x768, 1280x720, 704x576, 704x480, 640x480, 640x360, 352x288, 352x240 |
| Video Bitrate | 512 – 10000kbps |
| Bitrate Control | CBR/VBR/VBR+ |
| Protocol | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, SMTP, FTP, UPnP, HTTP, HTTPS, SSL/TLS, ITX property protocol(Direct to ITX NVR) |
| Stream Method | Unicast/Multicast |
| SDK | HTTP based API, Onvif Profile S |
| Motion Detection | 4 Zones |
| Region of Interest | 8 Zones |
| Flip Horizontal/Vertical | Supported |
| Privacy Mask | 4 Areas |
| Audi Compression | G.711 ulaw |
| Supply Voltage | 12VDC |
| Dimensions | 42 x 42 mm |
| Operating Temperature/Humidity | 0°C to 50°C / 10% - 90% relative humidity |
