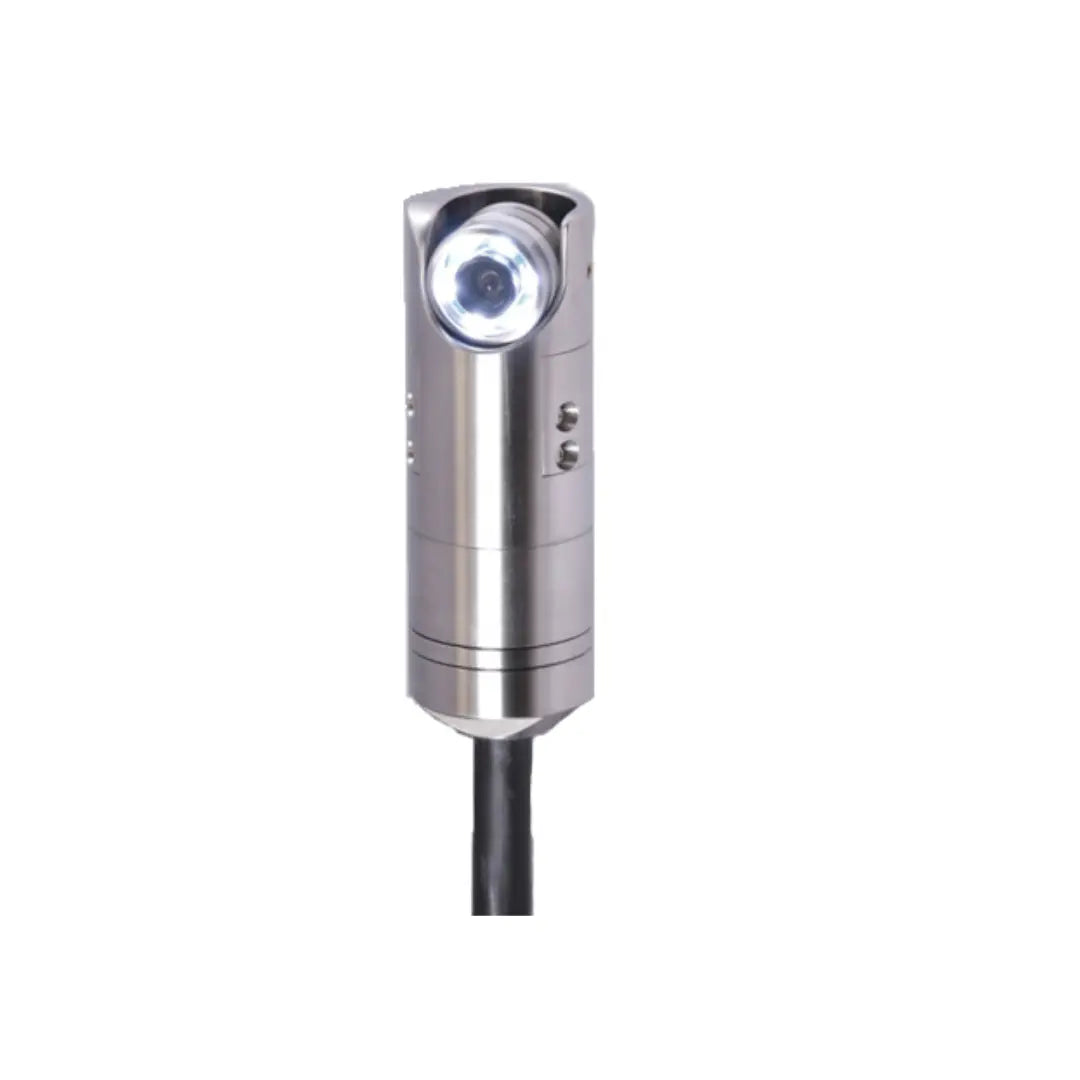

Peerless MICROPTZ 29 mm Pan Tilt Zoom Camera Head

Peerless Vendor Logo SKU: EM10111 MFG: MICROPTZ

• 720p HD camera
• 6-LED shadowless illumination
• Stainless steel housing
• 1-1/8” [28.6mm] Dia. x 3-1/4” Long
• 270o pan & 95o tilt range of motion
• Digital zoom 4x
• Toolless focus lens
• Splash proof
• Sapphire window
• Cable length up to 200’ [60m]



Peerless MICROPTZ 29 mm Pan Tilt Zoom Camera Head

The Micro PTZ is an HD camera system built for monitoring and inspection within tight, confined spaces. It is a diverse tool that can be configured in multiple ways, including tethered to a cable, used on a push rod reel system, or mounted to a pole. At only 1-1/8” diameter and 3-1/4” long with cable lengths up to 30 meters [100’], the Micro PTZ is well suited for many tasks.

The camera housing is stainless steel with a sapphire window and a toolless focus lens. It comes standard with a 110º angle lens, providing a wide viewing area for detailed high-definition inspection. There are also six super bright LEDs for shadowless illumination.

The PTZ-XD Controller utilizes a joystick for pan and tilt functions, light control, 4x digital zoom, a built-in viewing device, and much more. (Controller Sold Separately)



Image Sensor

1/4.4" Color CMOS

Effective Image Area

3.6mm X 2.03mm

Effective Pixel Array

1284H X 724V

Pixel Size

2.8µm X 2.8µm

Signal/Noise Ratio


Back Light Compensation


White Balance


Min Illumination


Wide Dynamic Range

Auto WDR

LED Illumination


Operating Temperature


Cable Length

Up to 30 meters [100']


Peerless MICROPTZ Specification Sheet
