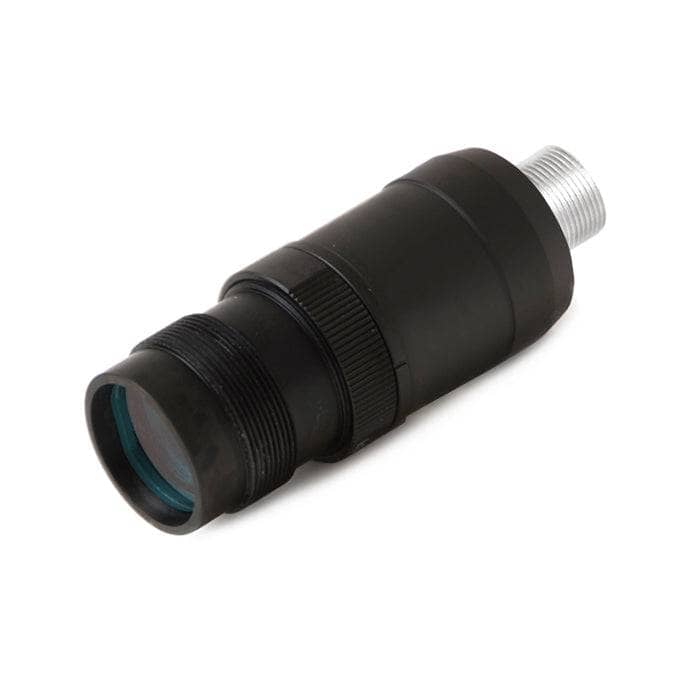

Peerless PC-HD15H 15 mm Micro Camera Head - 10.5 x 0.5 Lens Mount

Peerless Vendor Logo SKU: EM14675MFG: PC-HD15 11265600

• Full HD 1080/60 Resolution
• 15 mm diameter
• M10.5 x 0.5 Lens Mount thread
• HD Replacement for the ELMO UN43H & UP50H, Toshiba IK-UM44H & IK-UM51H

Description

Details

Peerless PC-HD15H 15 mm Micro Camera Head - 10.5 x 0.5 Lens Mount

The Peerless PC-HD15H 15 mm Diameter Micro Camera Head provides a high-detail image and a video resolution of 1920 x 1080 with 60 fps in a compact housing measuring only 15 mm OD x 36.5 mm in length. The Full HD 15 mm micro camera features include a 1/3" CMOS image sensor, progressive scan, auto backlight compensation, auto shutter, auto gain, and auto white balance, with a dynamic range of up to 69.5 dB. The PC-HD15 model has a 10.5 x 0.5 thread lens mount.

The Peerless PC-HD15H is an HD replacement camera head for legacy SD Micro Cameras such as the ELMO UN43H, ELMO UP50H, Toshiba IK-UM44H, and Toshiba IK-UM51H.

Specifications

Image Sensor 1/3" CMOS
Total Pixels 2304 H x 1536 V
Active Pixels 2304 H x 1296 V
Pixel Size 2.2µm x 2.2µm
Sensing Area 5.07mm H x 3.38mm V
Synchronization Internal
Sensitivity 0.2 lux (30 IRE)/F1.2
Responsivity 2.0V/lux-sec
Scanning Mode Progressive
Shutter Type ERS
Shutter Speed Auto: 1/60 ~1/100,000 sec
Back Light Compensation Auto
Dynamic Range 69.5 dB
Signal-to-Noise Ratio 39 dB
Gain Control Auto (switching)
White Balance Auto
Operating Temperature -20ºC~70ºC
Storage Temperature -30ºC~90ºC
Integral Cable Lengths 2m-15m
Lens Mount 10.5 x 0.5
Power Consumption < 200mA



Downloads

PC-HD15H Camera Specifications Sheet
