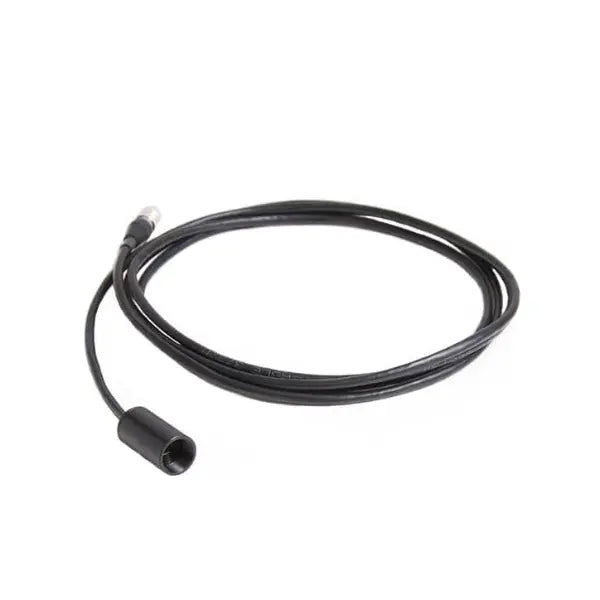

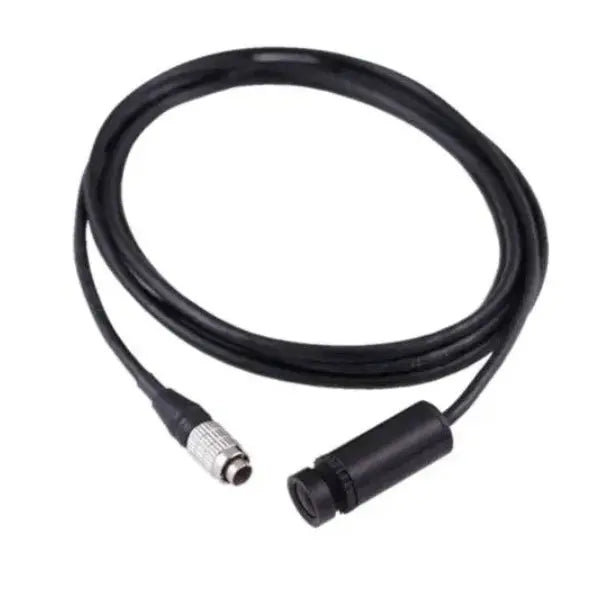

Peerless PC-HD15T-02 Full HD 15 mm Micro Camera - 2 m Integral Cable

Peerless Vendor Logo SKU: EM14566MFG: PC-HD15T-02 11264800-02m

• Full HD 1080/60 resolution
• 15 mm camera diameter
• 2 m integral flexible cable
• Stand-alone device or OEM solution

Description

Details

The Peerless PC-HD15T-02 is a Full HD 15 mm diameter camera with a 2-meter integral camera cable.

The Peerless PC-HD15T-03 is a Full HD 15 mm diameter camera with a 3-meter integral camera cable.  The camera housing is 15mm in lenght and made from anodized black aluminum with a lens-locking ring.

The camera utilizes a 1080p full HD 1/4.4” CMOS sensor with an electronic rolling shutter at speeds up to 1/100,000 per second and adjustable exposure. An M12 lens mount allows for a variety of swappable lenses for a multitude of viewing options. A connectorized unit is available along with a permanently tethered unit for reduced rigid length to cable bend.

Multiple options are available for the camera control unit, including a portable 7” Monitor Controller or a Desktop Controller made from rugged anodized black aluminum with non-slip rubber feet. Both options include built-in storage and DVR with full image capture, recording, and playback capabilities, along with multiple outputs.

Specifications

Image Sensor 1/3" CMOS
Total Pixels 2304 H x 1536 V
Active Pixels 2304 H x 1296 V
Pixel Size 2.2µm x 2.2µm
Sensing Area 5.07mm H x 3.38mm V
Synchronization Internal
Sensitivity 0.2 lux (30 IRE)/F1.2
Responsivity 2.0V/lux-sec
Scanning Mode Progressive
Shutter Type ERS
Shutter Speed Auto: 1/60 ~1/100,000 sec
Back Light Compensation Auto
Dynamic Range 69.5 dB
Signal-to-Noise Ratio 39 dB
Gain Control Auto (switching)
White Balance Auto
Operating Temperature -20ºC~70ºC
Storage Temperature -30ºC~90ºC
Integral Cable Lengths 2m-15m
Lens Mount M12
Power Consumption < 200mA



Downloads

PC-HD15T-02 Camera Specifications Sheet
