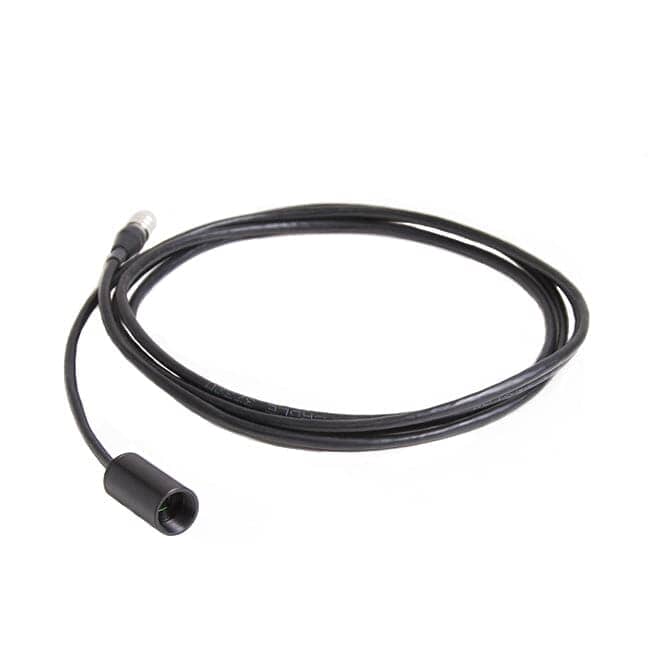

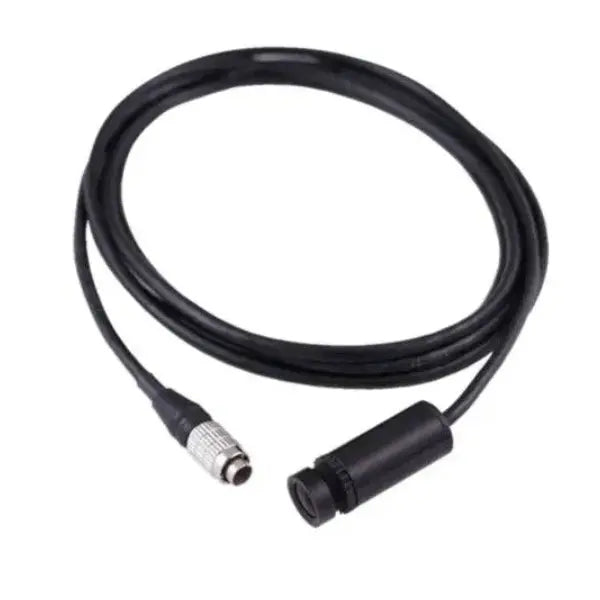

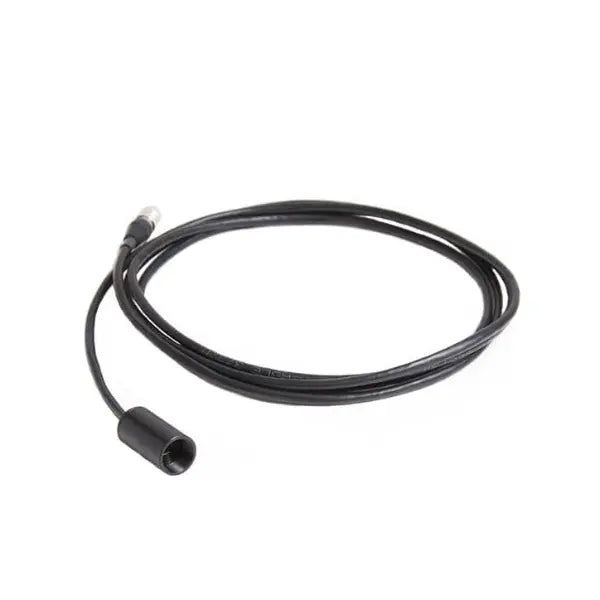

Peerless PC-HD15T-05 Full HD 15 mm Micro Camera - 5 m Integral Cable
The Peerless PC-HD15T-05 is a Full HD 15 mm diameter camera with a 5-meter integral camera cable.
The PC-HD15-05 camera was designed for a variety of industrial applications. It can be utilized as a standalone device or easily incorporated into a larger solution as an OEM system without giving up performance.
The camera housing is 15mm in diameter and made from anodized black aluminum with a lens-locking ring. The camera utilizes a 1080p full HD 1/4.4” CMOS sensor with an electronic rolling shutter at speeds up to 1/100,000 per second and adjustable exposure. An M12 lens mount allows for a variety of swappable lenses for a multitude of viewing options. A connectorized unit is available along with a permanently tethered unit for reduced rigid length to cable bend.
Multiple options are available for the camera control unit, including a portable 7” Monitor Controller or a Desktop Controller made from rugged anodized black aluminum with non-slip rubber feet. Both options include built-in storage and DVR with full image capture, recording, and playback capabilities, along with multiple outputs.
Specifications
Image Sensor |
1/3" CMOS |
Total Pixels |
2304 H x 1536 V |
Active Pixels |
2304 H x 1296 V |
Pixel Size |
2.2µm x 2.2µm |
Sensing Area |
5.07mm H x 3.38mm V |
Synchronization |
Internal |
Sensitivity |
0.2 lux (30 IRE)/F1.2 |
Responsivity |
2.0V/lux-sec |
Scanning Mode |
Progressive |
Shutter Type |
ERS |
Shutter Speed |
Auto: 1/60 ~1/100,000 sec |
Back Light Compensation |
Auto |
Dynamic Range |
69.5 dB |
Signal to Noise Ratio |
39 dB |
Gain Control |
Auto (switching) |
White Balance |
Auto |
Operating Temperature |
-20ºC~70ºC |
Storage Temperature |
-30ºC~90ºC |
Cable Length |
5m |
Lens Mount |
M12 |
Power Consumption |
< 200mA |
Downloads
Peerless PC-HD15T-05 Full HD 15 mm Micro Camera Specification Sheet
