Peerless PC-HD15T-10 Full HD 15 mm Micro Camera - 10 m Integral Cable

Peerless Vendor Logo SKU: EM14573MFG: PC-HD15T-10 11264800-10m

• Full HD 1080/60 resolution
• 15 mm camera diameter
• 10 m flexible cable



Peerless PC-HD15T-10 Full HD 15 mm Micro Camera - 10 m Integral Cable

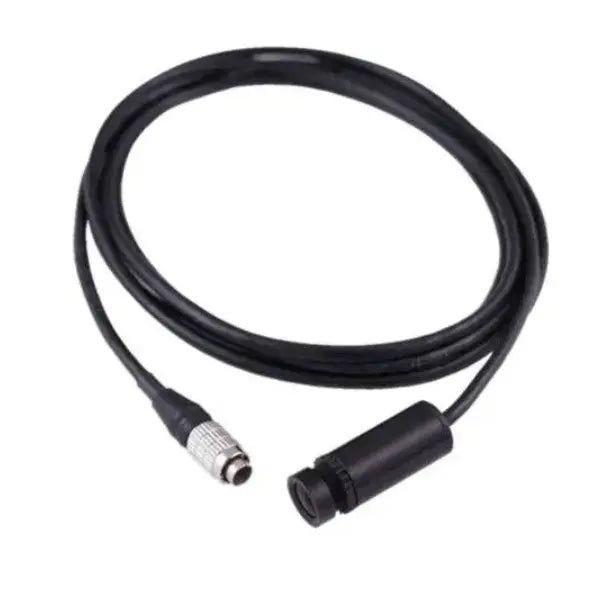

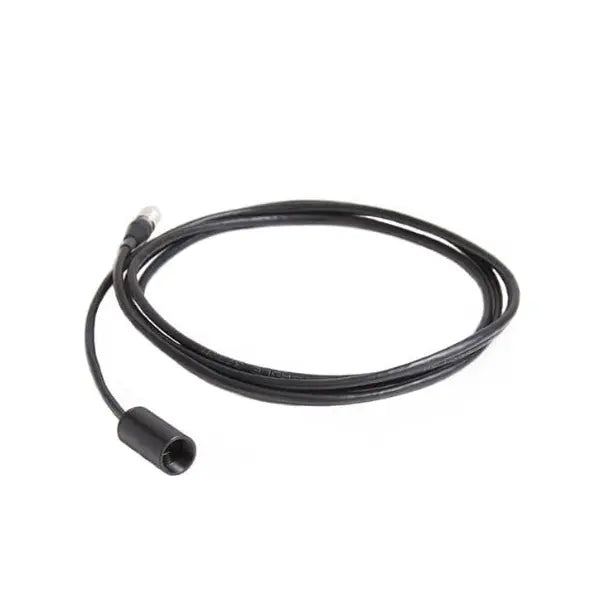

The Peerless PC-HD15T-10 is a Full HD 15 mm diameter camera with a 10-meter integral camera cable.

The PC-HD15 camera was designed for a variety of industrial applications. It can be utilized as a standalone device or easily incorporated into a larger solution as an OEM system without giving up performance.

The camera housing is 15mm in diameter and made from anodized black aluminum with a lens-locking ring. The camera utilizes a 1080p full HD 1/4.4” CMOS sensor with an electronic rolling shutter at speeds up to 1/100,000 per second and adjustable exposure. An M12 lens mount allows for a variety of swappable lenses for a multitude of viewing options. A connectorized unit is available along with a permanently tethered unit for reduced rigid length to cable bend.

Multiple options are available for the camera control unit, including a portable 7” Monitor Controller or a Desktop Controller made from rugged anodized black aluminum with non-slip rubber feet. Both options include built-in storage and DVR with full image capture, recording, and playback capabilities, along with multiple outputs.


Image Sensor

1/3" CMOS

Total Pixels

2304 H x 1536 V

Active Pixels

2304 H x 1296 V

Pixel Size

2.2µm x 2.2µm

Sensing Area

5.07mm H x 3.38mm V




0.2 lux (30 IRE)/F1.2



Scanning Mode


Shutter Type


Shutter Speed

Auto: 1/60 ~1/100,000 sec

Back Light Compensation


Dynamic Range

69.5 dB

Signal to Noise Ratio

39 dB

Gain Control

Auto (switching)

White Balance


Operating Temperature


Storage Temperature


Cable Length

10 m

Lens Mount


Power Consumption

< 200mA



Peerless PC-HD15T-10 Full HD 15 mm Micro Camera Specification Sheet
