Peerless PC-HD15T-15 Full HD 15 mm Micro Camera - 15 m Integral Cable

Peerless Vendor Logo SKU: EM14575 MFG: PC-HD15T-15 11264800-15m

• Full HD 1080/60 resolution
• 15 mm camera diameter
• 15 m flexible cable
• 1/4.4” CMOS sensor
• Rolling Shutter

Description

Details

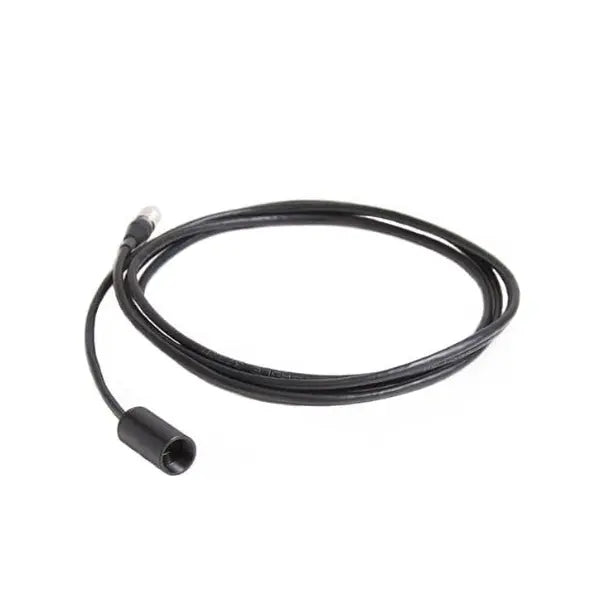

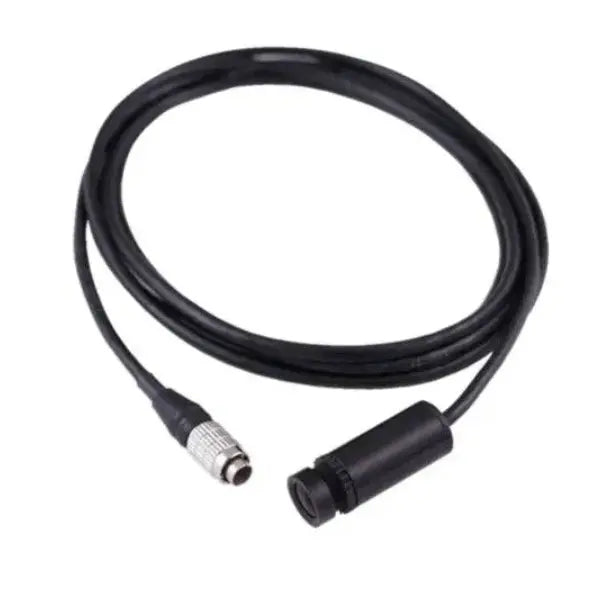

Peerless PC-HD15T-15 Full HD 15 mm Micro Camera - 15 m Integral Cable

The Peerless PC-HD15T-15 is a Full HD 15 mm diameter camera with a 15-meter integral camera cable.

The PC-HD15 camera was designed for a variety of industrial applications. It can be utilized as a standalone device or easily incorporated into a larger solution as an OEM system without giving up performance.

The camera housing is 15mm in diameter and made from anodized black aluminum with a lens-locking ring. The camera utilizes a 1080p full HD 1/4.4” CMOS sensor with an electronic rolling shutter at speeds up to 1/100,000 per second and adjustable exposure. An M12 lens mount allows for a variety of swappable lenses for a multitude of viewing options. A connectorized unit is available along with a permanently tethered unit for reduced rigid length to cable bend.

Multiple options are available for the camera control unit, including a portable 7” Monitor Controller or a Desktop Controller made from rugged anodized black aluminum with non-slip rubber feet. Both options include built-in storage and DVR with full image capture, recording, and playback capabilities, along with multiple outputs.

Specifications

Image Sensor

1/3" CMOS

Total Pixels

2304 H x 1536 V

Active Pixels

2304 H x 1296 V

Pixel Size

2.2µm x 2.2µm

Sensing Area

5.07mm H x 3.38mm V

Synchronization

Internal

Sensitivity

0.2 lux (30 IRE)/F1.2

Responsivity

2.0V/lux-sec

Scanning Mode

Progressive

Shutter Type

ERS

Shutter Speed

Auto: 1/60 ~1/100,000 sec

Back Light Compensation

Auto

Dynamic Range

69.5 dB

Signal to Noise Ratio

39 dB

Gain Control

Auto (switching)

White Balance

Auto

Operating Temperature

-20ºC~70ºC

Storage Temperature

-30ºC~90ºC

Cable Length

15

Lens Mount

M12

Power Consumption

< 200mA



Downloads

Peerless PC-HD15T-15 Full HD 15 mm Micro Camera Specification Sheet
