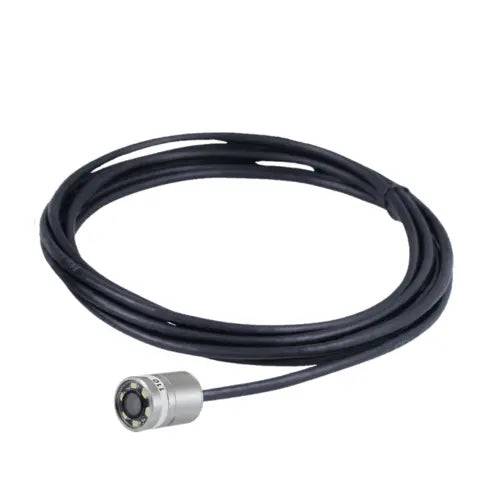

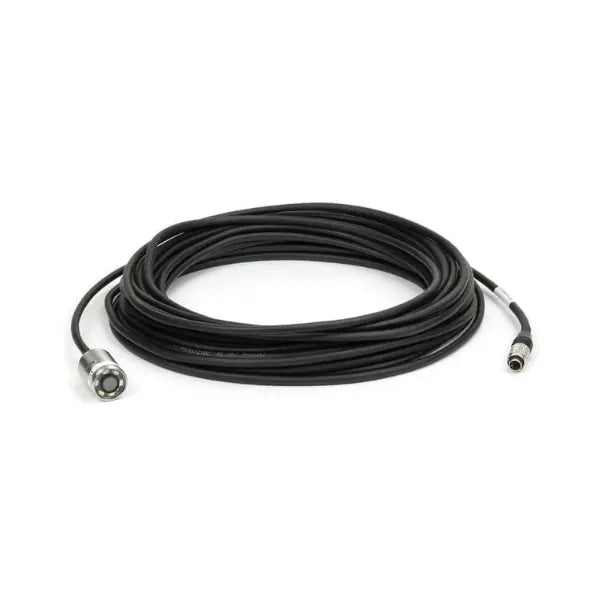

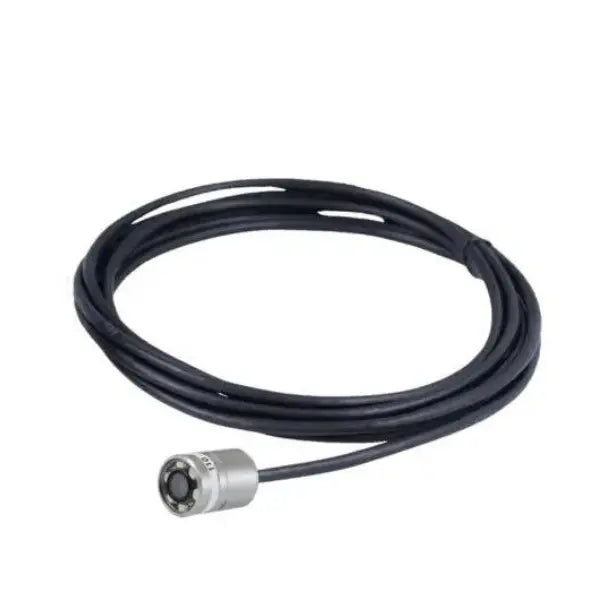

Peerless PC-HD19HO 19 mm Micro Camera with 12 m Integral Cable

Peerless Vendor Logo SKU: EM13796MFG: PC-HD19HO

• 19mm Full 1080p HD Camera
• 1/4.4” CMOS Sensor with an electronic rolling shutter
• Waterproof to full length of cable

Description

Details

A 19 mm Full 1080p HD Camera solution for various industrial applications.  With integrated LED lights and a camera head, the PC-HD190HO is designed to be utilized as a standalone solution, or it can easily incorporated into a more extensive solution as an OEM system without giving up performance. The camera features a 1/4.4” CMOS sensor, an electronic rolling shutter with speeds up to 1/100,000 per second, and adjustable exposure. Also included are six-LED white light illumination and a tooless focus leng. , an IP67 enclosure, which is waterproof to the full length of its cable .






Pair the PC-HD19HO with a selection of camera control units with built-in capture capability for both video and still images.  A long-lasting battery option is available for complete portability.




Specifications

 Camera Model  PC-HD19HO
 Image Sensor  1/4.4" CMOS
 Total Pixels  2304(H) x 1536(V)
 Active Pixels       2304(H) x 1296(V)
 Pixel Size  2.2 μm x 2.2 μm
 Sensing Area   5.07 mm (H) x 3.38 mm (V)
 Video Resolution  848x480, 1280x720, 1920x1080 (depends on CCU)
 Still Resolution 2 Megapixel, 3 Megapixel, 5 Megapixel (depends on CCU)
 Synchronization  Interna.
 Sensitivity  0.2 lux (30 IRE)/F1.2
Scanning Mode  Progressive
 Shutter Type  ERS
 Shutter Speed    Auto: 1/60 to 1/100,000 Seconds
 Frame Rate   Up to 60 fps
 Dynamic Range  69.5 dB
 Signal to Noise ratio  39 dB
 Gain Control  Automatic (switching)
 Dimensions w/ Lens  19 mm OD x 30 mm
Cable Length Options 3m-15m (*Contact us for other integral cable length options)
 Power Consumption   < 200 mA
 Operating Temperature   -20° C ~ 70° C
 Storage Temperature  -30° C ~ 90° C
 Lens Type   Toolless Focus
