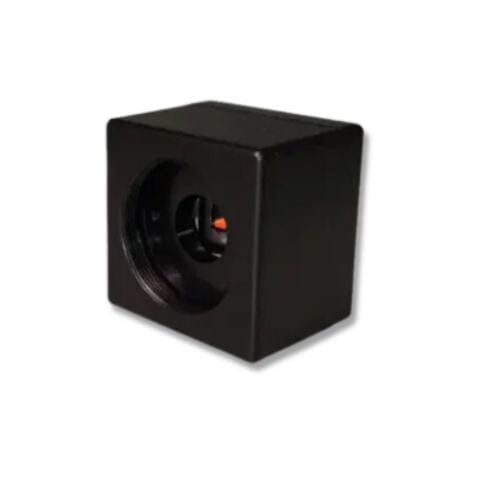

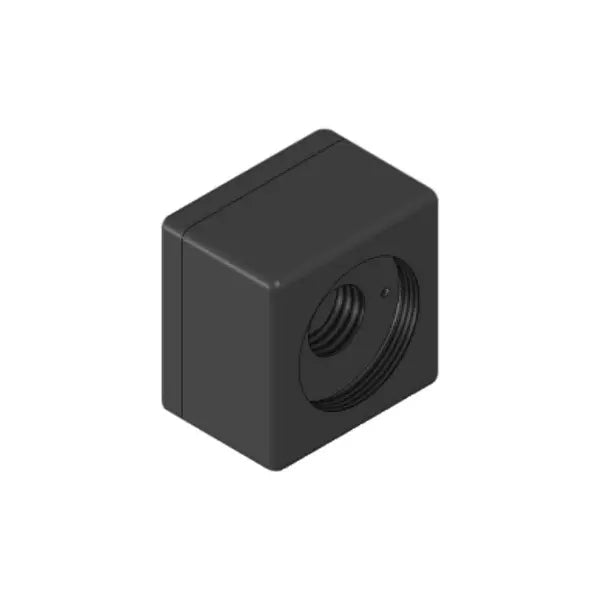

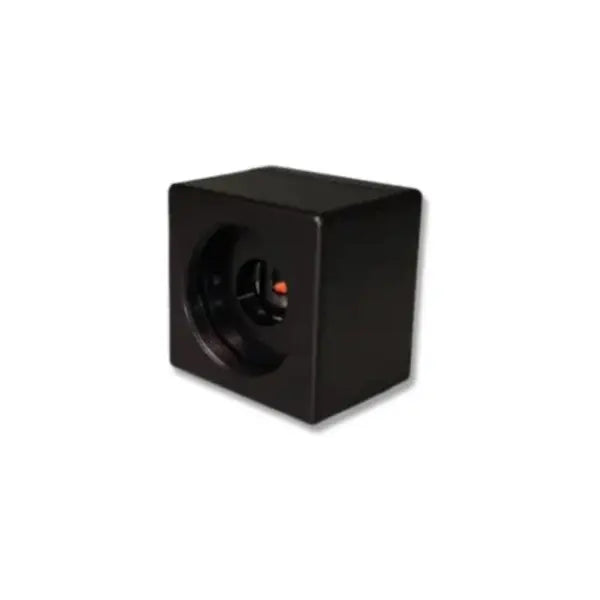

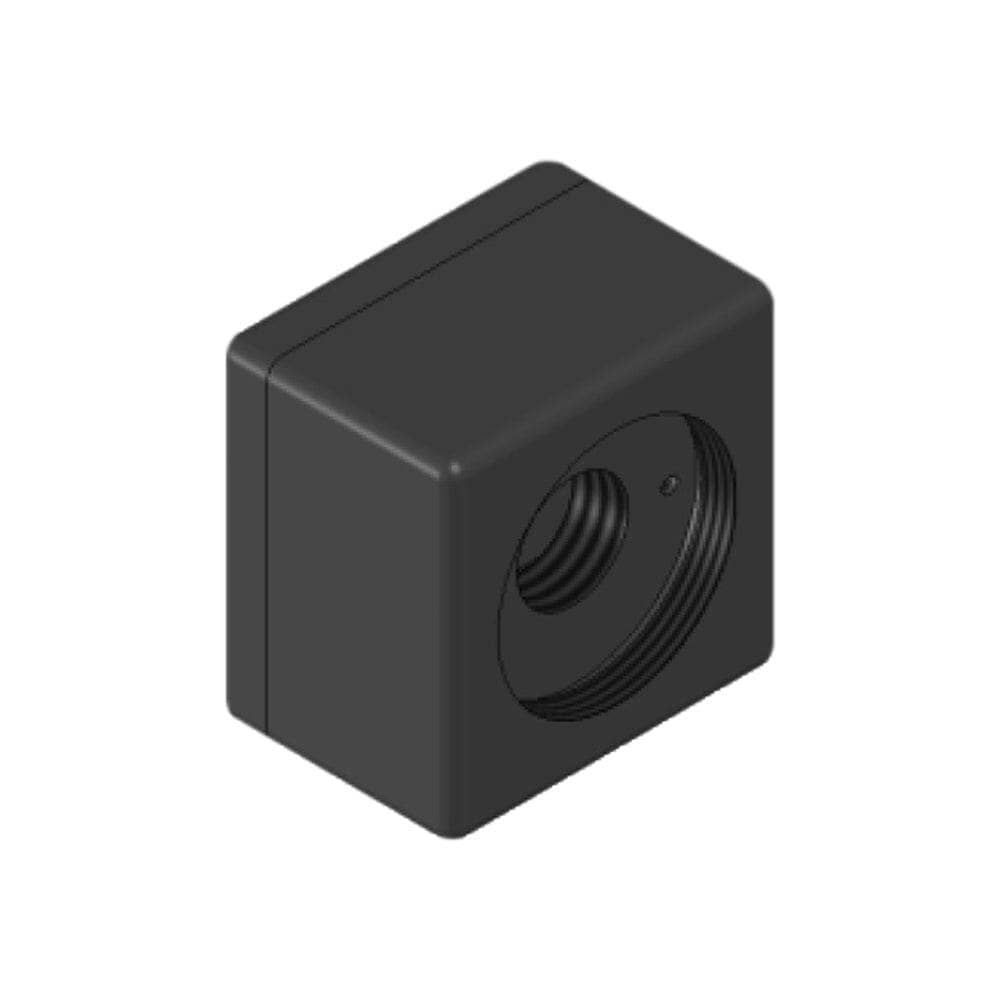

Peerless PC-HD34 34 x 34 mm C-Mount Camera Head

Peerless Vendor Logo SKU: EM14438MFG: PC-HD34 11264900

• Full HD 1080/60 Resolution
• C Mount Lens thread
• 34 mm x 34 mm dimensions
• HD Replacement for the ELMO CN43H & Toshiba IK-C44H

Description

Details

The Peerless Full HD 34 x 34 mm Micro Camera Head provides a high-detail image and a video resolution up to 1936 x 1097 pixels (beyond Full HD) with 60 fps in a compact housing measuring only 34 x 34 mm. The Full HD 34 x 34 mm micro camera features include a 1/2.9" image sensor, C-mount lens threads, progressive scan, auto backlight compensation, auto shutter, auto gain, and auto white balance, with a dynamic range of up to 85.5 dB.

This is the ideal HD replacement camera head for  legacy SD Micro Cameras such as the ELMO CN43H and the Toshiba IK-C44H.

Specifications

Image Sensor 1/2.9" CMOS
Total Pixels 2001 H x 1121 V
Active Pixels 1936 H x 1097 V
Pixel Size 2.8µm x 2.8µm
Sensing Area 5.6mm H x 3.14mm V
Synchronization Internal
Sensitivity 0.8 lux/F1.2
Responsivity 1.6V/lux-sec
Scanning Mode Progressive
Shutter Type ERS (GGR optional)
Shutter Speed Auto: 1/60 ~1/100,000 sec
Back Light Compensation Auto
Dynamic Range 85.5 dB
Signal-to-Noise Ratio 39 dB
Gain Control Auto (switching)
White Balance Auto
Operating Temperature -30ºC~75ºC
Storage Temperature -40ºC~80ºC
Cable Lengths 3m-15m
Lens Mount C/CS
Power Consumption < 150mA


Downloads

PC-HD34 Camera Specification Sheet
