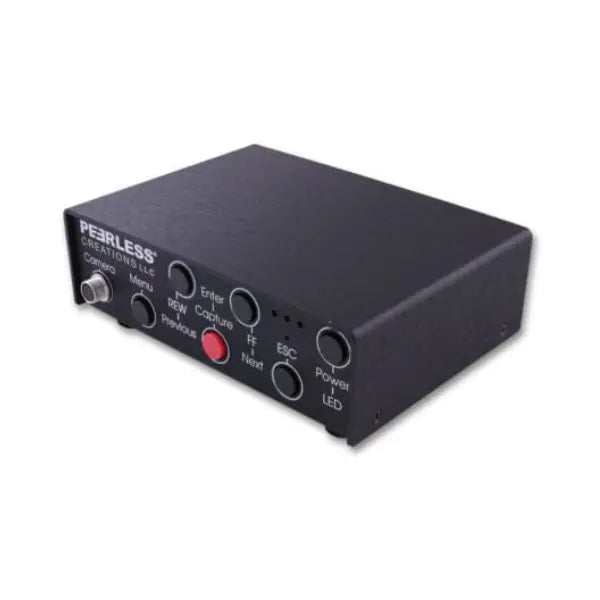

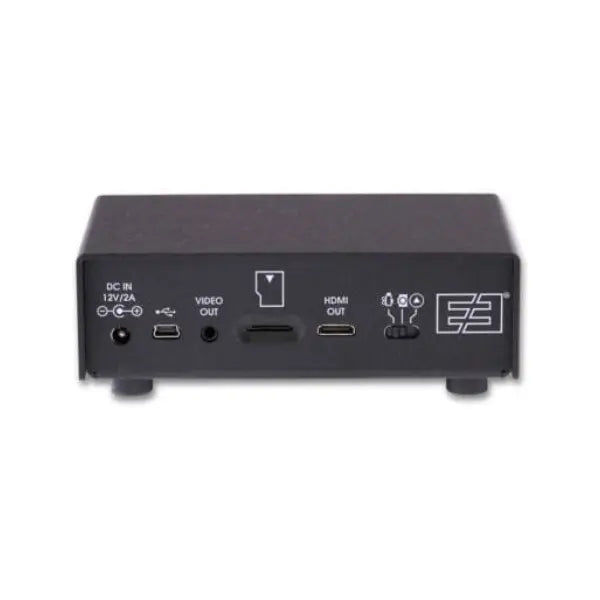

Control all aspects of the PC-HD 15mm and 17mm micro cameras with the desktop camera controller unit. With a built-in rechargeable battery, the CCU is entirely portable. Features include playback video/image, file control, resolution control, video segmenting, exposure control, light frequency, and output selection (Mini HDMI output, USB connectivity, analog video output, and Micro SD slot up to 128GB.)
Specifications
| Video Resolution | 1920x1080; 1280x720; 848x480 |
| Video Storage Format | AVI |
| Frame Rate | Up to 60 fps |
| Aspect Ratio | 16:9 |
| Compression Format | H.264 |
| Image Resolution | 5MP: 3200x1800; 3MP: 2592x1356; 2MP: 2048x1152 |
| Image Format | JPG/JPEG |
| External SD Card | Micro-SD card up to 128 GB |
| 64GB Recording Time | 24-64 hours |
| Phono Output | Analog video |
| HDMI Output | Digital video (1920x1080; 1280x720; 848x480) |
| Mini USB Output | Digital File Transfer |
| Operating System | Windows & Mac OS |
| Port | USB 2.0 |
| Illumination Control |
PC-HDVRCU: Yes PC-HDVRPCU: Yes PC-HDVRCUI: No illumination PC-HDVRCUIL: Instant Lights On |
| Language | Multiple |
| Voltage | DC: 7-24V; USB DC: 5V |
| AC Adapter | DC 12v 2A |
| Current Consumption | <600mA |
| Built-in Battery |
PC-HDVRCU: None PC-HDVRPCU: Li-battery 5Ah PC-HDVRCUI: None PC-HDVRCUIL: None |
| Battery Working Time |
PC-HDVRCU: N/A PC-HDVRPCU: roughly 8 hours PC-HDVRCUI: N/A PC-HDVRCUIL: N/A |
| Dimensions | 132mm x 94mm x 40mm |
| Weight |
PC-HDVRCU: 305g (.67lbs) PC-HDVRPCU: 396g (.87lbs) PC-HDVRCUI: 305g (.67lbs) PC-HDVRCUIL: 305g (.67lbs) |
