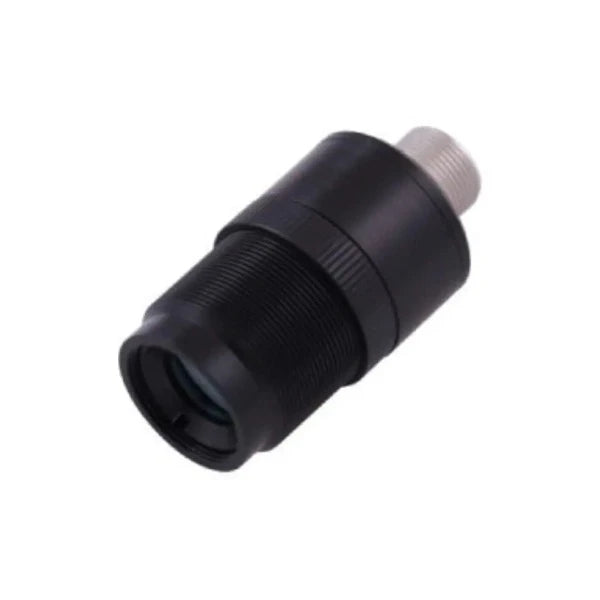

Peerless PC-XD17 17 mm Micro Camera Head

Peerless Vendor Logo SKU: EM10137MFG: PC-XD17

• 17 mm Diameter
• 34 mm Long
• M15.5 Lens Mount
• Lens Locking Ring

Description

Details

The PC-XD17 HD Camera is ideal for a variety of industrial applications, designed to be utilized as a replacement for the ELMO MN43H and Toshiba IK-M44H devices or easily incorporated into a larger solution as an OEM system without giving up performance. It features a slender, anodized black aluminum housing with a lens-locking ring.

The M15.5 lens mount allows for a variety of swappable lenses for a multitude of viewing options. Connectorized and permanently tethered units are available for reduced rigid length to cable bends. With the ability to be located up to 60 meters (200 feet) from the control unit, this device is a highly capable solution for remote viewing.


Multiple options for the camera control unit are available in a portable 5” and 7” Monitor Controller or a Desktop Controller made from rugged anodized black aluminum with non-slip rubber feet. Both options include built-in storage and DVR with full image capture, recording, playback capabilities, and multiple outputs on the Desktop Controller.

Specifications

CAMERA MODEL:

PC-XD17

Image Sensor

1/4.4 Color CMOS

Effective Image Area

3.6mm X 2.03mm

Effective Pixel Array

1284H X 724V

Pixel Size

2.8µm X 2.8µm

Signal/Noise Ratio

>43.1dB

Back Light Compensation

Auto

White Balance

Auto

Min Illumination

.001Lux

Wide Dynamic Range

Auto WDR

Lens Mount

M15.5

Operating Temperature

-40ºC~85ºC

Cable Length

Up to 60 meters [200']

Dimensions

17mm Dia. X 34mm L


Downloads

Peerless PC-XD17 Series Specification Sheet

Peerless PC-XD Series Brochure
