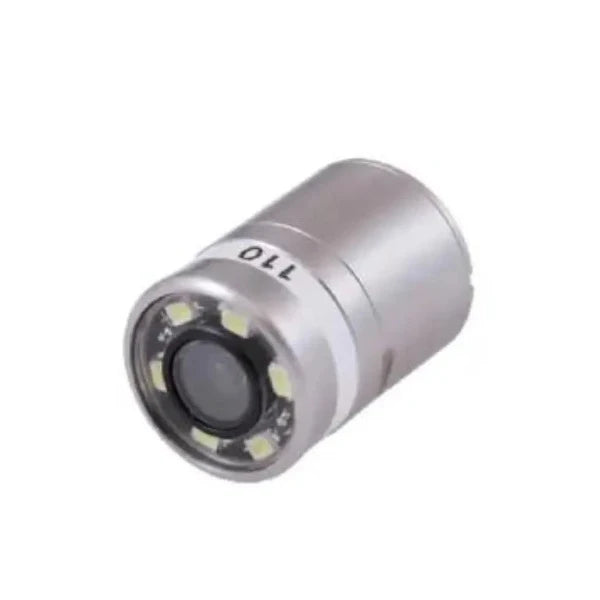

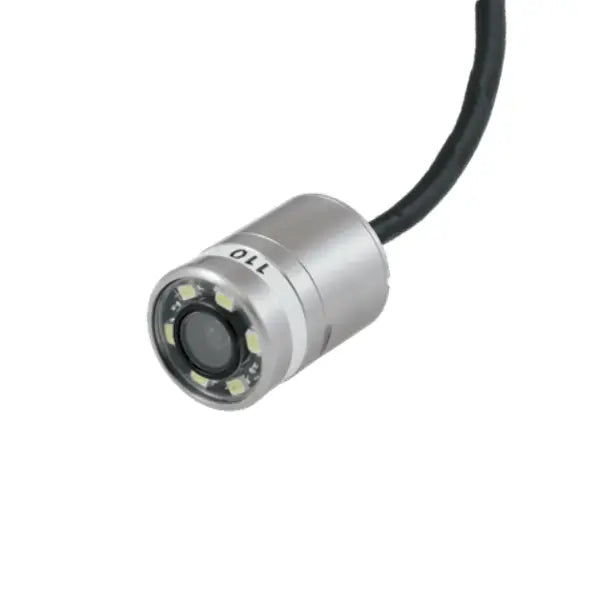

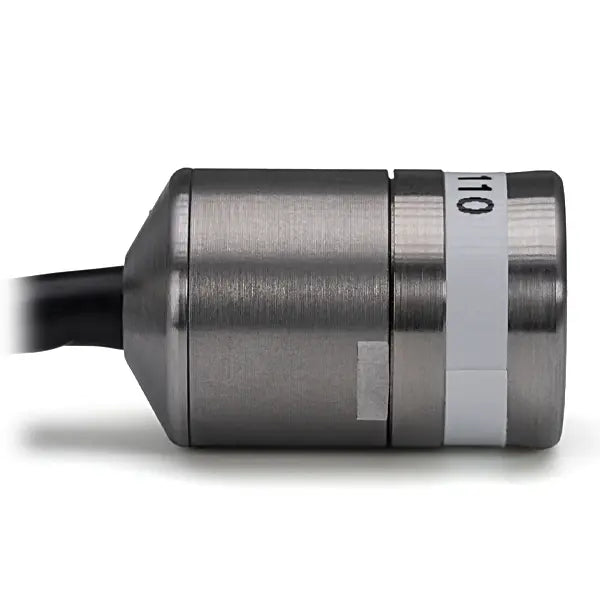

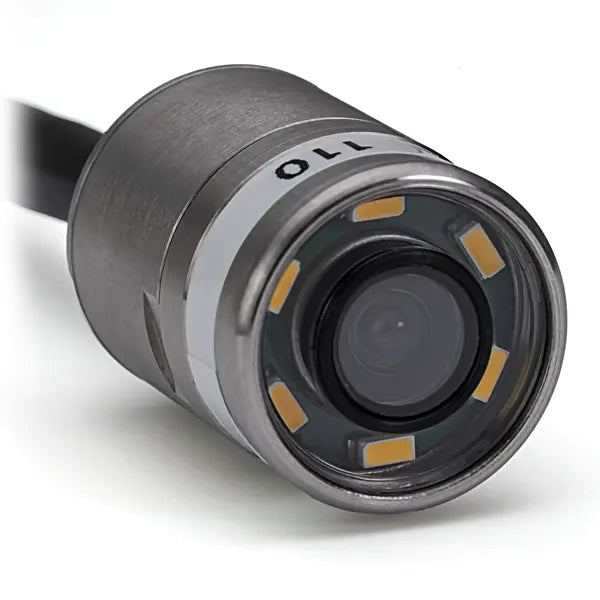

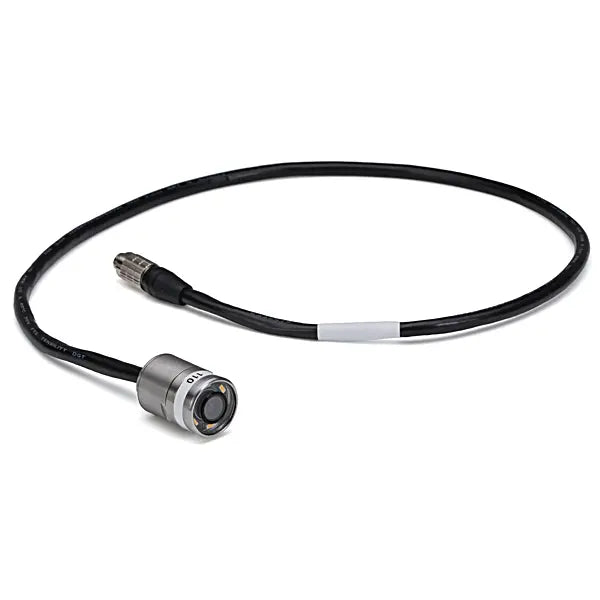

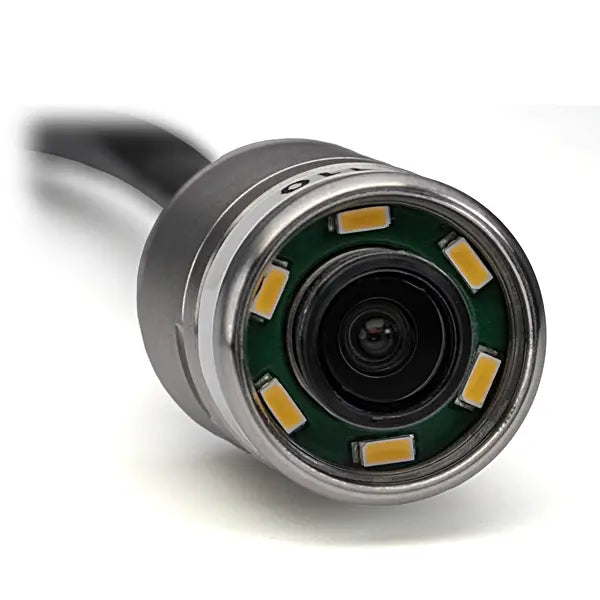

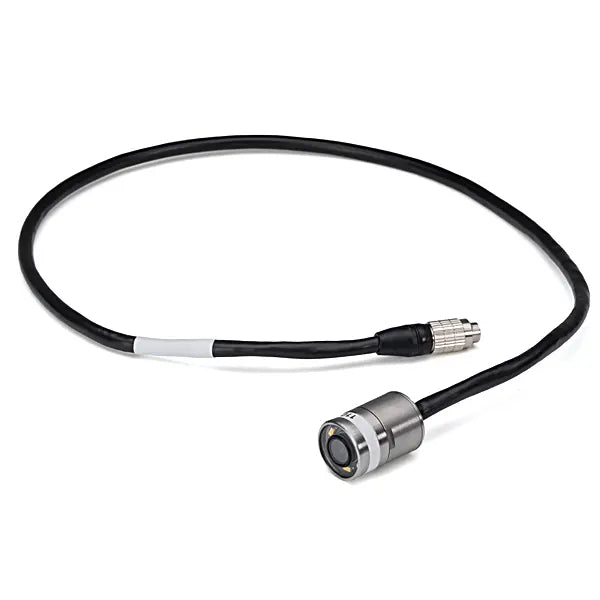

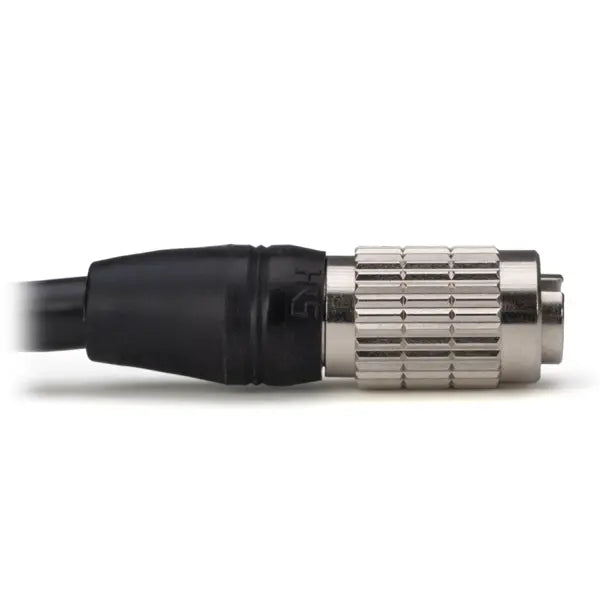

The PC-XD19 HD Camera is ideal for a variety of industrial applications. It can be used as a standalone device or easily incorporated into a larger solution as an OEM system without sacrificing performance. It features a stainless-steel housing with 6 LEDs for shadowless illumination and is fully waterproof along the entire cable length. Each camera head ships with a 24" integral cable; additional extension cables are available separately.
The lens adjusts easily without tools, and additional lenses are available with different viewing angles. The PC-XD19 can be placed up to 60 meters (200 feet) from the control unit, making it a highly capable solution for remote viewing.
Multiple camera control unit options are available: a portable 5" or 7" Monitor Controller or a Desktop Controller made from rugged anodized black aluminum with non-slip rubber feet. Both options include built-in storage and a DVR with full image capture, recording, and playback capabilities. The Desktop Controller also has multiple outputs and an LED adjustment knob.
Specifications
|
CAMERA MODEL: |
PC-XD19-RL-0.6M |
|
Image Sensor |
1/4.4 Color CMOS |
|
Effective Image Area |
3.6mm X 2.03mm |
|
Effective Pixel Array |
1284H X 724V |
|
Pixel Size |
2.8µm X 2.8µm |
|
Signal/Noise Ratio |
> 43.1dB |
|
Backlight Compensation |
Auto |
|
White Balance |
Auto |
|
Min Illumination |
.001Lux |
|
Wide Dynamic Range |
Auto WDR |
|
Lens Mount |
Proprietary |
|
Operating Temperature |
-40ºC~85ºC |
|
Integral Cable |
24" included |
|
Total Cable Length |
Up to 60 meters [200'] with extension cables |
|
Dimensions |
19 mm diameter x 30 mm length |
|
LED Illumination |
Yes |
