Peerless PC-XDVRIL Extended Length Camera Control Unit with LED Control

Peerless Vendor Logo SKU: EM10135MFG: PC-XDVRIL

• Built-in DVR
• HDMI or CVBS Outputs
• Compatible w/ PC-XD Series Cameras



Peerless PC-XDVRIL Extended Length Camera Control Unit with LED Control

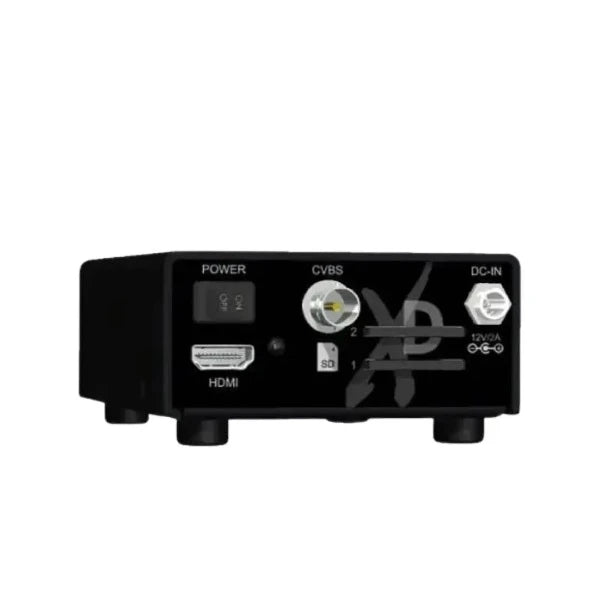

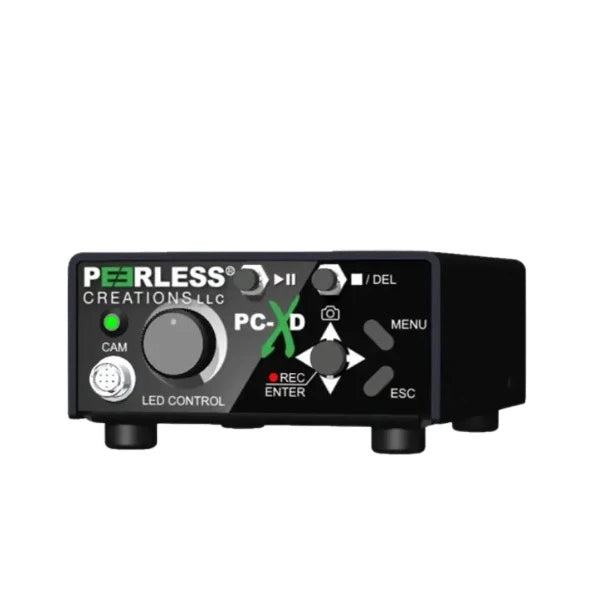

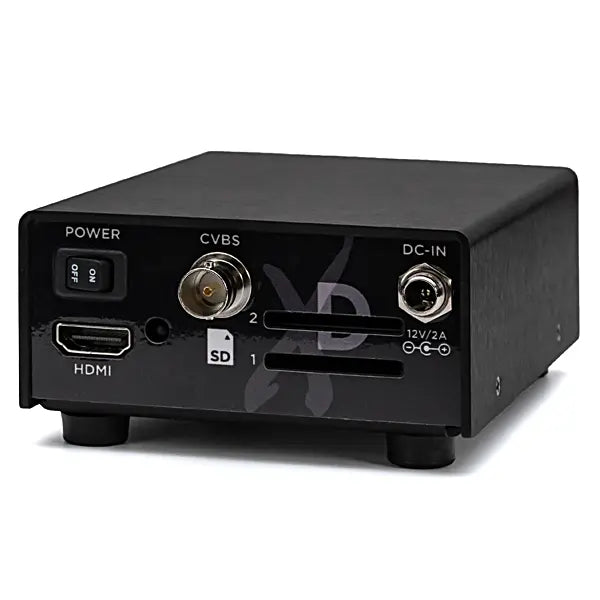

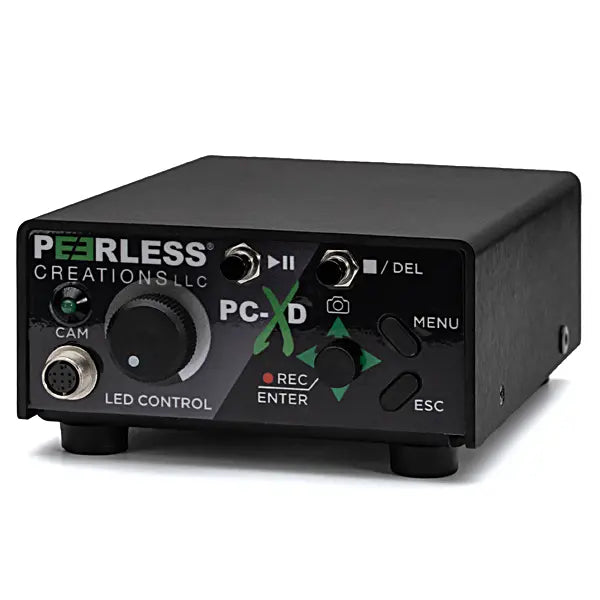

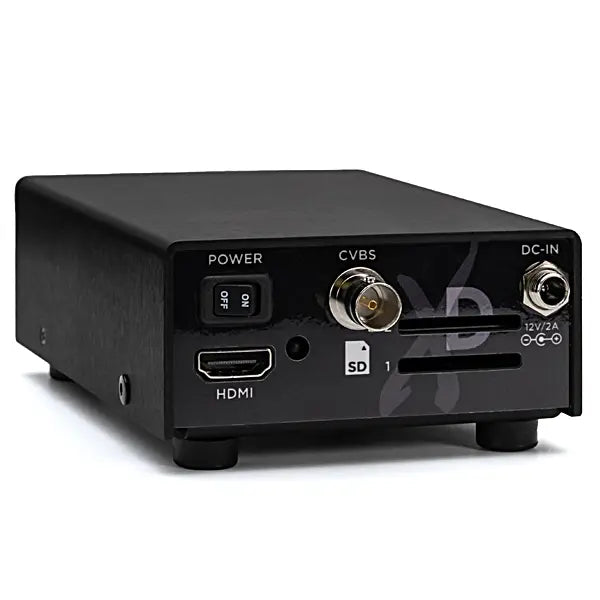

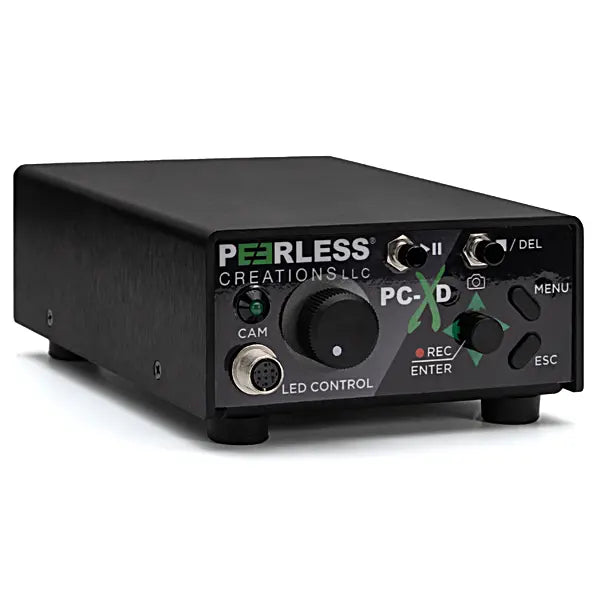

Introducing the PC-XD Series Desktop Controller with LED Control for use with the complete line of PC-XD series cameras. These control units have a built-in DVR for recording, image capture, and playback to viewing devices via HDMI or CVBS output. Onboard memory slots on the rear panel allow up to 1TB of storage. The front panel features a joystick and playback controls as well as an LED adjustment knob.

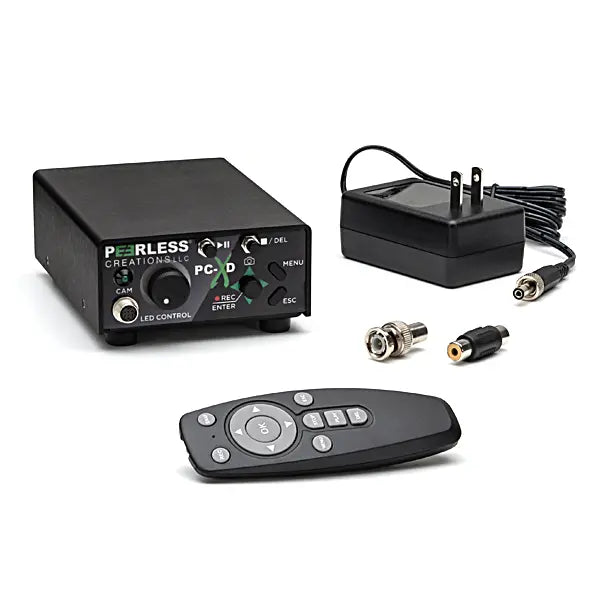

The enclosure is constructed of rugged anodized black aluminum with non-slip rubber feet. Additional features include a locking power connector and remote control. The controller comes ready to plug in any of the PC-XD series cameras. With the ability to be placed up to 60 meters (200 feet) from the camera head, this device is a highly capable solution for remote viewing.




Illumination Control


Data Storage

Dual SD cards up to 512GB each

Compression Format


Recording Mode

Power On/Manual/Detection/Timed Recording

Video Format

MP4 (H265+AAC)

Frame Rate


Auto Overwrite

Option to override

Photo Format


Image Resolution

Up to 8MP

Snap a Photo

Remote option only

HDMI Video Resolution

1280 X 720

CVBS Video Resolution

720 X 576

Operating Temperature


Power Supply

DC IN 12V < 1.5 A

System Language


Enclosure Dimensions

1.59"H x 3.49"W x 4.90" L


Peerless PC-XD Series Brochure
