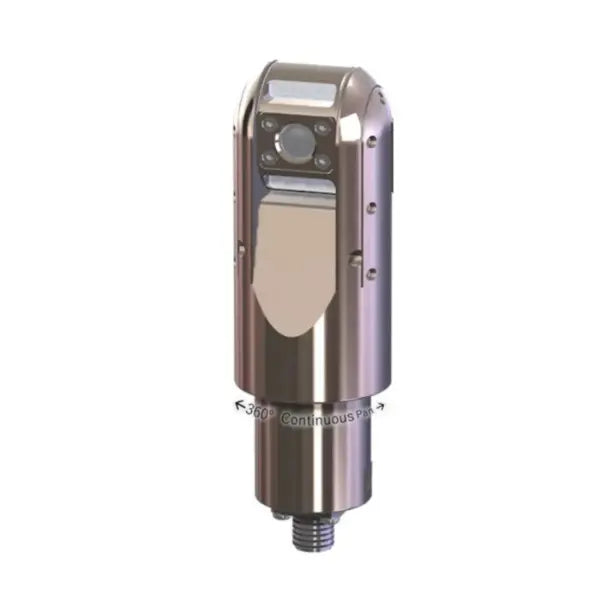

Peerless PTZ-45 45 mm Pan Tilt Zoom Camera Head

Peerless Vendor Logo SKU: EM10113MFG: PTZ-45

• 45mm x 130mm long
• 1080p HD camera
• LED illumination
• Nickel plated
• Aluminum housing Waterproof
• 360º pan & 270º tilt
• 4X Digital zoom

Description

Details

The PTZ-45 is a Full 1080p HD camera system built for monitoring and inspection in tight, confined spaces. It features 360º continuous panning and 270º tilt range with a 110º lens, providing the user ultimate control within a large viewing area.

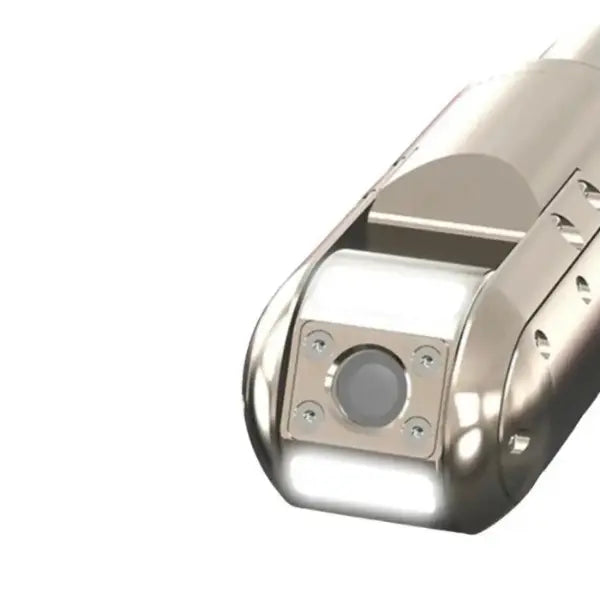

The camera housing is lightweight, corrosion-resistant, nickel-plated aluminum, which is waterproof up to the entire length of the cable. It also features a sapphire window and eight super-bright LEDs for shadowless illumination.


The PTZ-XD Controller features a joystick for pan and tilt functions, light control, 4x digital zoom, a built-in viewing device, and much more. (Controller Sold Separately)

Specifications

CAMERA SPECIFICATIONS


Image Sensor

1/2.8 Color HD CMOS

Effective Image Area

12mm X 9.3mm

Effective Pixel Array

1945H X 1097V

Pixel Size

2.8µm X 2.8µm

Signal/Noise Ratio

>30dB

Back Light Compensation

Auto

White Balance

Auto

Min Illumination

.0001Lux/1.2F

Wide Dynamic Range

Auto WDR

LED Illumination

Yes

Operating Temperature

-30ºC~85ºC

Cable Length

Up to 60 meters [200']


Downloads

Peerless PTZ-45 PTZ Camera Head Specification Sheet
