Description
Details

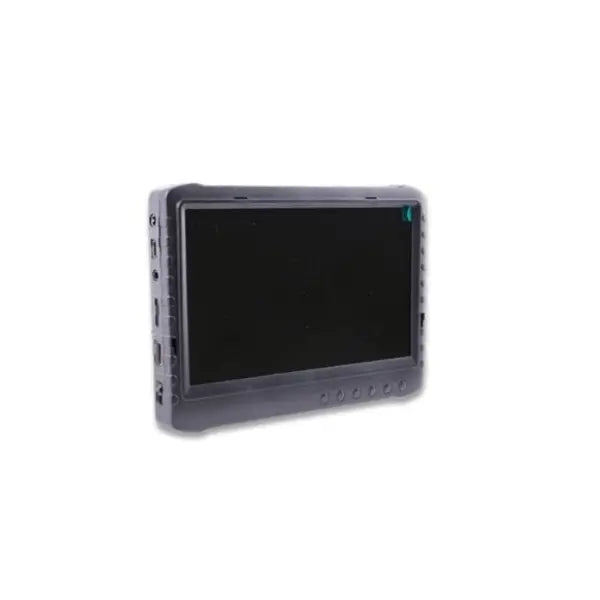

The PC-XD Series DVR Monitor Controller can record and display images up to 1920 x 1080. Use for real-time viewing, video recording, still image capture, loop recording, and playback on up to 128GB memory storage.
Additional features include external video output, power-save mode, USB connectivity, built-in speakers, and up to 6 hours of battery life.
Specifications
|
Illumination Control |
Yes |
|
Data Storage |
MicroSD Card 128GB |
|
Compression Format |
H.264/H.265 |
|
Recording Mode |
Manual |
|
Frame Rate |
60fps |
|
Auto Overwrite |
Option to overwrite |
|
Photo Format |
JPG/JPEG |
|
Image Resolution |
5MP, 3MP, 2MP, 1.3MP, VGA |
|
Image Capture |
Yes |
|
Operating Temperature |
0ºC~40ºC |
|
Power Supply |
DC IN 12V 2A |
|
System Language |
Multiple |
|
Aspect Ratio |
16:9 |
|
64GB Recording Time |
24-64 hours |
|

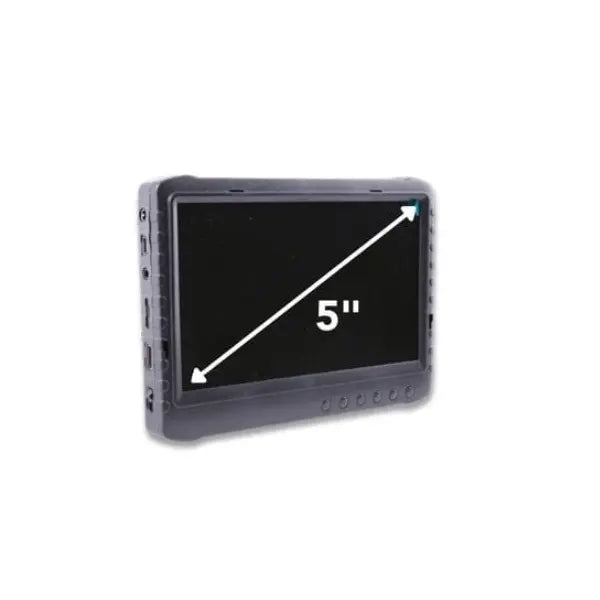

Screen Size |
PC-XDVR5: 107mm W x 64mm H |
|
Screen Brightness |
400 cd/m² |
|
Audio Frequency Range |
Audio Frequency Range 20Hz-20KHz |
|
Audio Compression Format |
AAC |
|
Built-in Speaker |
1W |
|
Video Resolution |
1280x720 and 1920x1080 for PC-XD25 only |
|
Phono Output |
Analog Video |
|
Mini USB Output |
Digital File Transfer, USB 2.0 |
|
Operating System |
Windows and Mac OS |
|
Current Consumption |
<900mA |
|
Built-in Battery |
PC-XDVR5: Li-battery 4.5Ah |
|
Battery Working Time |
≈ 4-6 hours |
|
Dimensions |
PC-XDVR5: 139mm x 90mm x 19mm |
|
Weight |
PC-XDVR5: 216g [.48lbs] |
