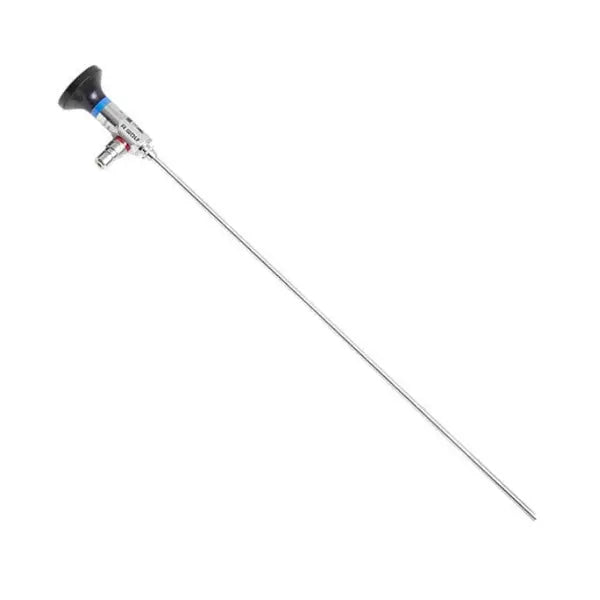

Richard Wolf Rigid UV Borescope 4 mm OD x 300 mm in Length

SeeUV Brand Logo SKU: EM90175MFG: 8650.514

• Meets UV output specifications
• 4 mm Outer Diameter
• ~300 mm Length
• 0º, 30º, or 70º Direction of View selection
• 70º Field of View

Direction of View (DOV):

Description

Details

The high-quality Richard Wolf Rigid UV Borescopes are used for Fluorescent Particle Inspection (FPI) or Magnetic Particle Inspection (MPI) of turbines, pipes, and castings, among other parts types.  This selection of rigid borescopes measure 4 mm in diameter and  298/299/300 mm in working lengths. The rugged medical-grade rigid borescope features a choice of 0º, 30º, or 70º direction-of-view (DOV) and 70º field of view (FOV). Richard Wolf Medical borescope model 8650.505T.



Specifications

Diameter 4 mm
Length 298 mm , 299 mm or 300 mm (~11.8 inches)
Direction of View (DOV) 0º, 30º, or 70º
Field of View (FOV) 70º
The distance where UV intensity = 2000 μW/cm^2 2.25 inches from tip to target


UV Output Data

The data below represents typical results as seen from new units of the 70º DOV Scope. Results are intended as a general informational benchmark and may vary based on the light guide and UV light source used.

Distance to Target (inches) UV Intensity (μW/cm2)*
0.500 40,000
1.00 10,000
1.50 4500
2.00 2500
2.25 2000
2.40 1700

Light Source used for the test: EM14325 - iShot UV/White LED Light Source Kit w/ Machida Adapter



Distance to Target (inches) UV Intensity (μW/cm2)*
0.500 32,400
1.00 8,100
1.50 3,600
2.00 2,025
2.125 2,000
2.40 1,400

Light Source used for the test: EM18333 - Lumatec Superlite Ultraviolet UV and White Light Source
