SeeUV® Free Standing WebViewer® (FSWV) System

SeeUV Brand Logo SKU: FSWV-S Formerly EM14110

• UV camera
• Manual control
• FPI and MT inspection
• Meets or exceeds aviation industry requirements

SeeUV

Description

Details

SeeUV® Free Standing WebViewer® (FSWV) System

Formerly InterTest EM14110, the SeeUV® Free Standing WebViewer® (FSWV) System is a table or benchtop-mounted stand and boom remote visual inspection (RVI) system that includes manual or motorized vertical and horizontal travel. It is a UV camera inspection tool used with fluorescent penetrant inspection (FPI) and magnetic particle inspection testing methods typically performed on the internals of combustion turbine drums, shafts, and spools. Encoded elevation, horizontal travel, and radial reach values are displayed on-screen.

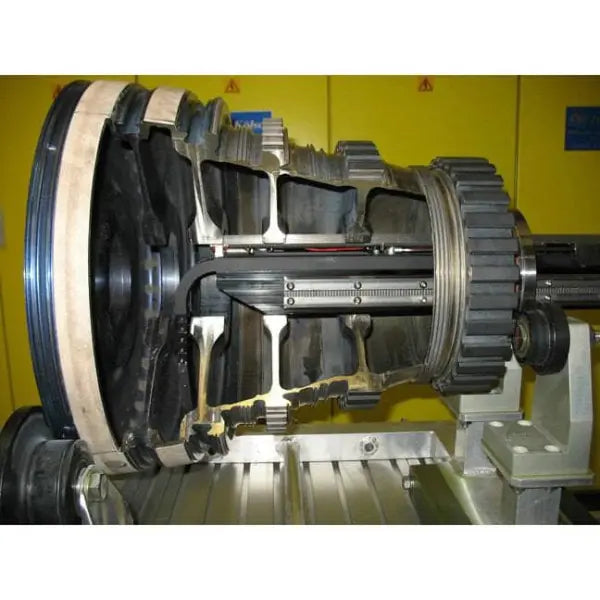

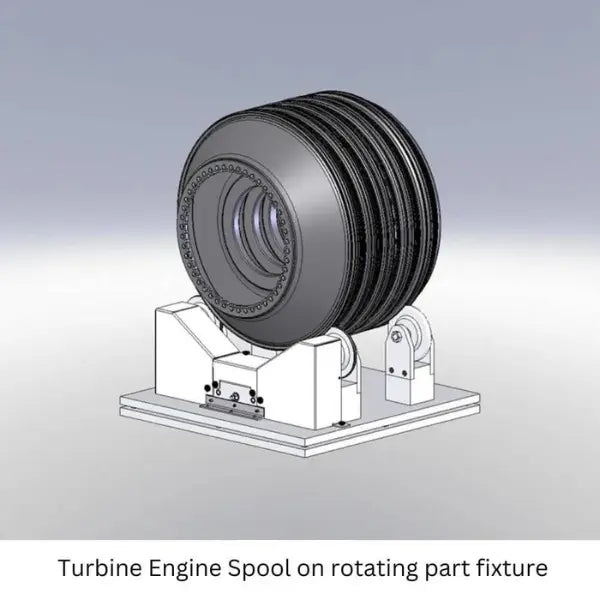

Common applications for the SeeUV® Free Standing WebViewer® System include FPI or MPI inside the internal components of combustion turbine drums, shafts, and spools for aircraft maintenance, repair, and overhaul (MRO) shops.

The system allows for 3-axis motorized movement (horizontal, vertical, and radial insertion), with encoded location values displayed on the screen, to ensure 100% coverage, repeatability, and record of the inspection.

Changeable optical adapters allow the user to change direction-of-view in 5 different directions 0º, 60º (forward and aft), and 90º (forward and aft).  This allows areas within the complex geometry to be viewed at appropriate angles, complying with common inspection requirements.

The system meets or exceeds aviation industry requirements for visual acuity, quality of UV light, and mechanical repeatability to assure can overlap.

The system meets or exceeds aviation industry requirements for visual acuity, quality of UV light, and mechanical repeatability to assure scan overlap.

 Specifications

 Camera Specifications
 Image Sensor
1/6" CMOS 2 Megapixel
 Video Format  DVI
 Resolution  1920 x 1080 effective pixels
 Shutter  Automatic
 Operation Temperature  0°C to 40°C (32°F to 104°F)
Illumination System
UV Transmission   6.5 meter x 5.5 mm (OD) liquid light guide
White Light Transmission  6.5 meter x 4 mm (OD) light guide
UV Light Output Peak  365 nm
UV Intensity  UV intensity > 2000 µW/cm2 at 76 mm (3.00”) from the target
Light Control White and UV full range variable intensity; simultaneous and independent operation
Camera Head Features
Dimensions 1.25" x 3" ( Minimal access is 102mm Bore)
Focus  Motorized, remote control
Viewing Direction   0º, 60º & 90º
Optical Adapter Specification
Forward (0º) 18 x 25 deg FOV  at 25mm distance
 (60º) 18 x 25 deg FOV at 50mm distance (forward & aft)
 (90º) 30 x 40 deg FOV at 25mm distance (forward & aft)
Mechanical Specifications
Axis of movement  X-axis (insertion), Y-axis (elevation), and radial
Insertion Range (X-axis)  500mm
Elevation Range (Y-axis)  950mm
Radial Range  250mm
Encoding   X-axis, Y-axis & Radial
Encoding Resolution  ± 0.1 cm
Cart (Height)  Stainless Steel (34")
Display
Model  Sony LMD-B170
Controller Power 110VAC (220VAC) optional
