SeeUV® MZ6™ Medium Bore Inspection System

SeeUV Brand Logo SKU: EM13240

• Identify surface flaws in bore diameters of 25, 30, 40, 60, and 81 mm
• 0.75" camera head diameter
• White and UV LED simultaneous and independently controlled illumination
• Ideal for FPI & MPI high-contrast imaging
• Pair with DocuView software for display, control, capture, measurement, and annotation

SeeUV

Description

Details

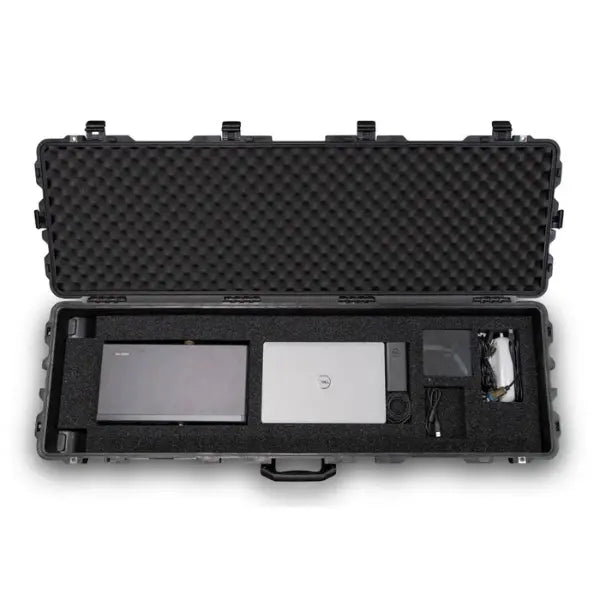

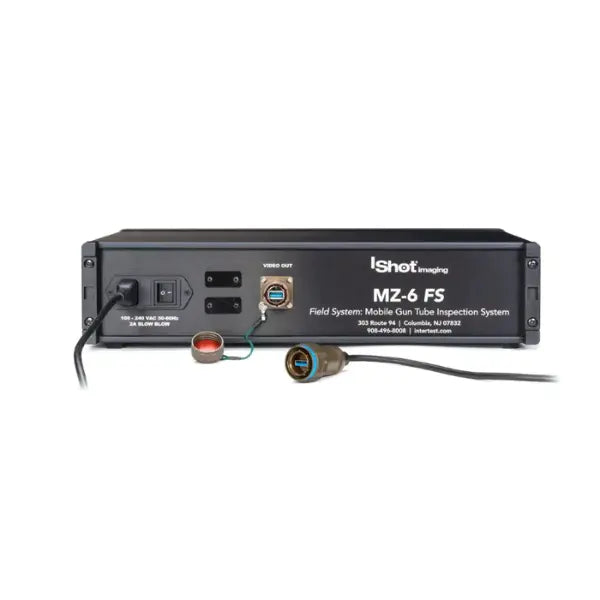

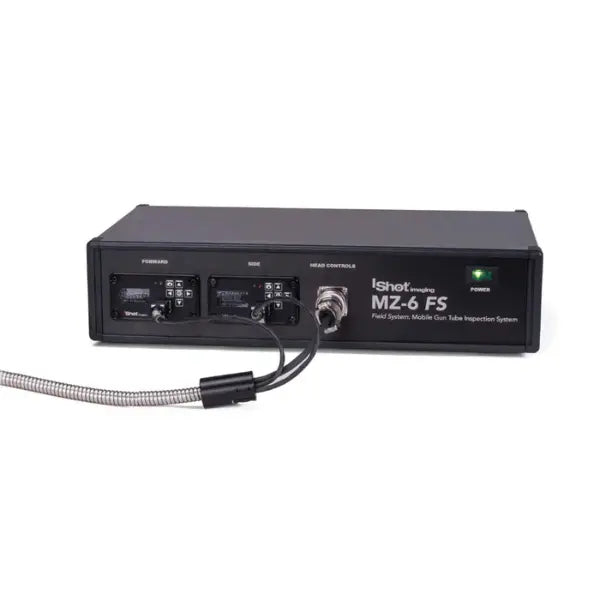

SeeUV® MZ6™ Medium Bore Inspection System

The SeeUV® MZ6™ Medium Bore Inspection System supports visual examinations of medium bore inner diameters during general white light visual and/or UV fluorescent inspections. Independent white and UV LEDs illuminate bore or tube surfaces, and two high-performance HD camera sensors display brilliant pictures to a PC with an auxiliary monitor for easy viewing. This produces high-contrast images when used with fluorescent penetrant inspection (FPI) & magnetic particle inspection (MPI) non-destructive testing (NDT) methods.

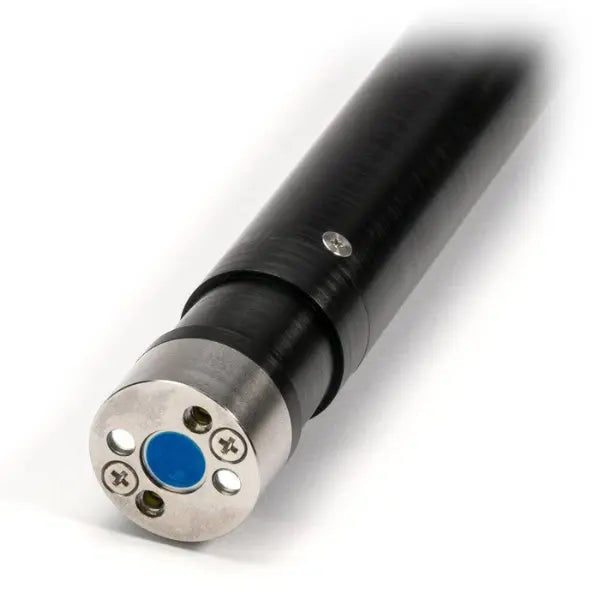

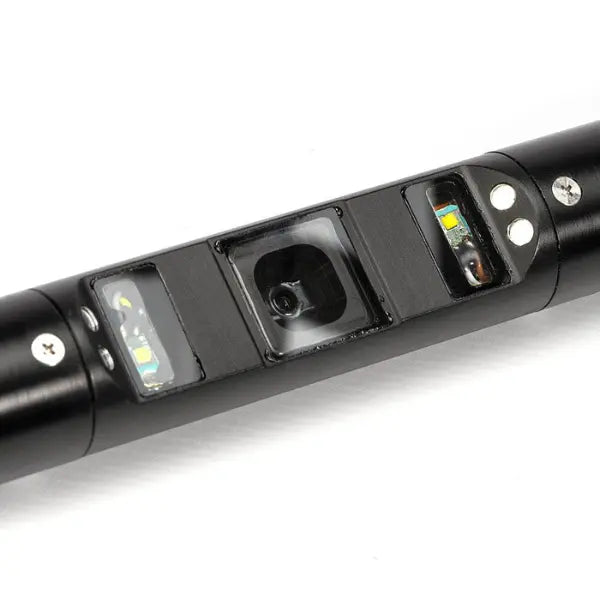

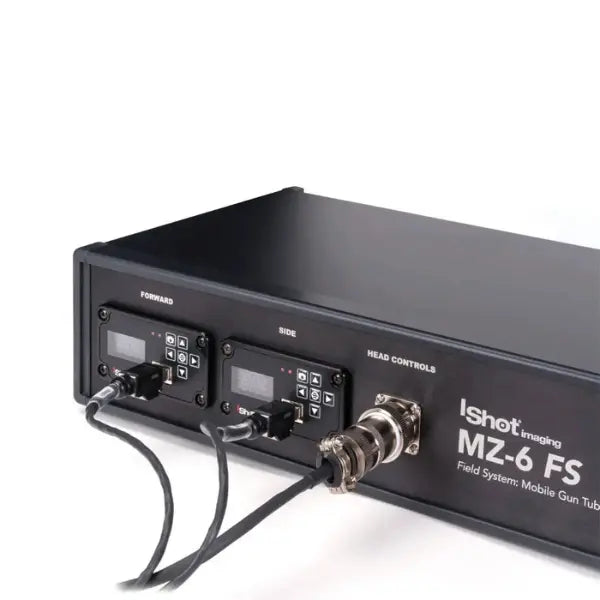

The MZ6™ innovative camera head design uses bore/tube centering fixtures, UV/white LEDs, and two HD camera sensors to achieve quality inspection images. The forward-facing camera looks down the bore or line to identify the location of flaws. The side-facing camera with remote control focus looks at the side walls for documentation and analysis.

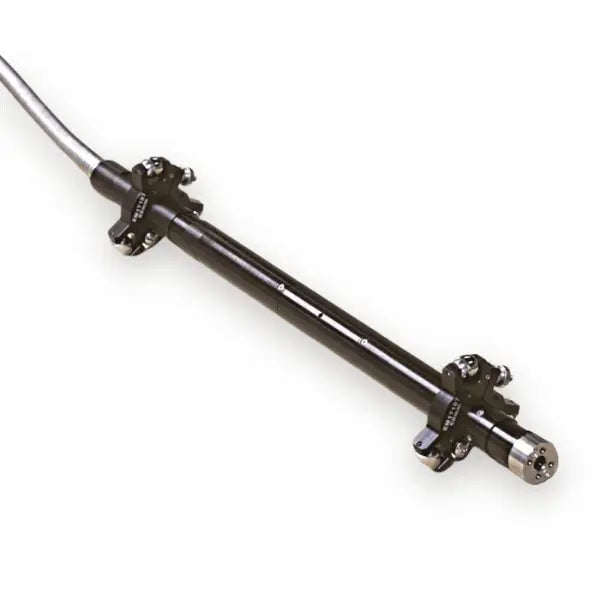

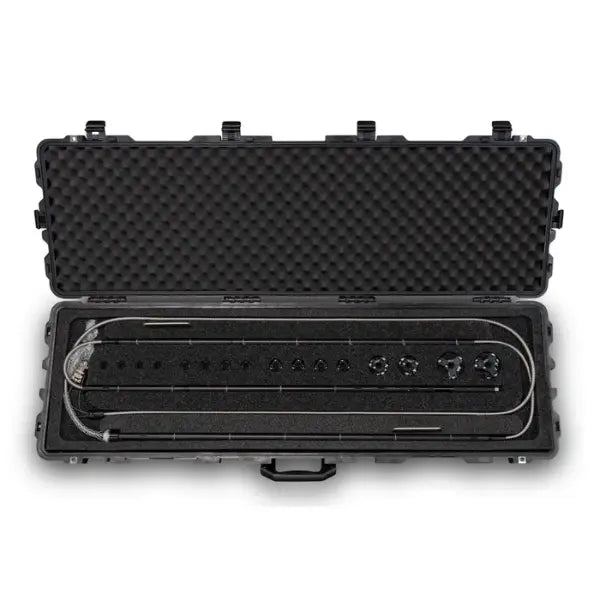

MZ6™ is designed for each bore/tube diameters 25, 30, 40, 60, and 81 mm. Centering fixtures keep the camera head inconsistent position for repeatable and reliable documentation.

Specifications

Camera Sensors

1/6" CMOS, 2 MP (1920 x 1080 pixels) for forward view and side view

Video Resolution

1080p/30fps

Down Bore Lens

0º DOV, 90º HFOV, manual focus adjustment

Side Bore Lens

90º DOV, 60º HFOV, remote motorized focus adjustment

Camera Head Diameter

0.75" (19 mm)

Insertion Pole Length

10.0' (30.5 cm)

Camera Head Material

Anodized aluminum

Insertion Pole Material single-piece, carbon composite
Centering Fixtures 25, 30, 40, 60, 81 mm
Illumination LEDs White and UV LEDs (10,000-hour life), independently controlled
UV Wavelength 365 nm @ > 2000 µW/cm2 with < 2 FC white light
Video Storage PC hard drive with 1 TB RAID
1200+ hours video, 400,000+ still HD images
Control/Display Interface DocuView software for display, capture, annotation, measurement
