SeeUV® MZ5™ HD-UV Inspection System for Gun Tube & Large Bores

SeeUV Brand Logo SKU: EM14809

• High Definition Dual Camera View
• UV & White Light
• Linear, angle, & radius measurement capability
• Designed for MPI & FPI Inspection of Gun Tubes

Accessories

InterTest UV LED Conformance Certificate for ASTM E3022
InterTest UV LED Conformance Certificate for ASTM E3022

Description

Details

SeeUV® MZ5™ HD-UV Inspection System for Gun Tube & Large Bore

The SeeUV® MZ5™ HD-UV Inspection System for Gun Tubes & Large Bores is a dual-view camera system that uses white and UV illumination, insertion poles with centering fixtures, and recording/annotation software to visually examine bore internals. The MZ5™ HD-UV is designed to locate, identify, and record high-contrast surface flaws of bore inner diameters common in gun tube components but may be used in any fluorescent penetrant inspection (FPI) and magnetic particle inspection (MPI) inspection method. The SeeUV® MZ5™ builds on the successful SeeUV® MZ4® HD by utilizing higher-performance sensors matched to display and capture hardware.

The independent white and UV illumination light sources provide an inspector to illuminate and detect high-contrast flaw indications. These include surface cracks, pitting, and deterioration on bore IDs over time and use.

MZ5™ supports HD video and 13-megapixel still image control, capture, and annotation through InterTest's DocuView 2 software.

The MZ5 Inspection System is designed for gun tube inspection but may be utilized in other applications where inner diameter surface inspection may occur. This includes bores in aerospace/aviation, power generation, or other industries with high-value parts with bore internals. MZ-5™ is designed for benchtop and indoor inspections.

See the SeeUV® MZ5™ Field System (FS) for Gun Tube & Large Bores for the portable, field service version of the MZ5™

Gun Tube Application:

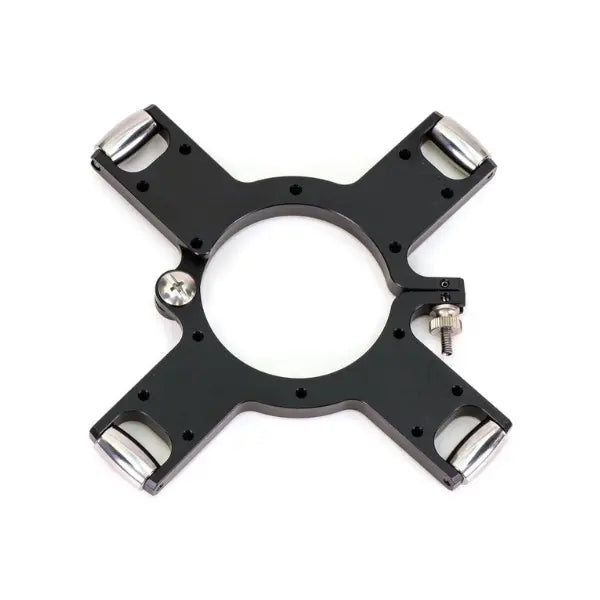

MZ5™ standard centering fixtures and extension poles support the visual examinations of 105, 120, and 155 mm diameter tubes at lengths up to 40’. Lighting and camera resolution support the inspection of tubes from 80 to 230 mm in diameter and lengths up to 60’ with the addition of optional hardware. The head contains two cameras that may be switched between a wide field down-tube view and a right-angle view. Both cameras operate in HD video or 13 MP still capture modes, each with independent white and UV illumination controls.



Specifications

 Camera Specifications
 Image Sensor    1/2.45"-type Exmor CMOS
 Video Resolution  1600 x 1200 (UXGA) (Forward) 1980 x 1020 (Side)
 Still Image  up to 13 Megapixel (4192 x 3104)
 Forward View (FOV)  127º x 95º (H x V)
 Side View (FOV)   53º X 29º (H x V )
 Mechanical Specifications
 Diameter   2.25"
 Length  Base 28' (5' Sectional Poles), 43' max length
 Centering Fixtures  105 mm, 120 mm, 155 mm

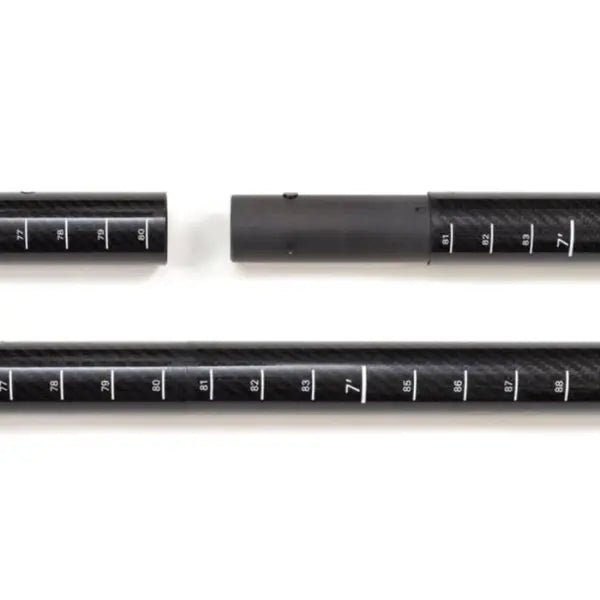

 Pole Markings  1" increments with 6" callouts
 Illumination System
Forward LEDs  UV, 365nm (4), Visible (4)
Side View LEDs  UV, 365nm (4), Visible (4)
Intensity Control   Fore & Aft for UV & Visible
 System Features



*Specifications are Subject to Change Without Notice
