15.6" SUNLIGHT READABLE MONITOR

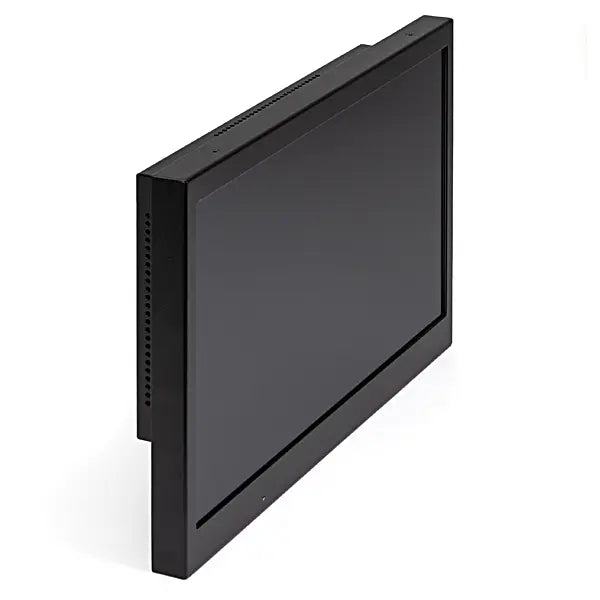

The SRMH-15.6Z-36 is a 15.6" monitor rated at 1,500 nits of brightness, built for direct sunlight and other high ambient-light environments. A 16:9 Full HD panel (1920 x 1080) pairs with HDMI, HD-SDI, VGA, and composite BNC video inputs for broad system compatibility. An ambient light sensor adjusts screen brightness automatically, and the monitor restarts automatically after a power loss.
The painted steel enclosure receives TRU-Vu's TRU-Tuff treatment, which secures connections and components for shock and vibration resistance. The monitor operates across an extended temperature range and carries a 3-year warranty. The monitor is TAA compliant.

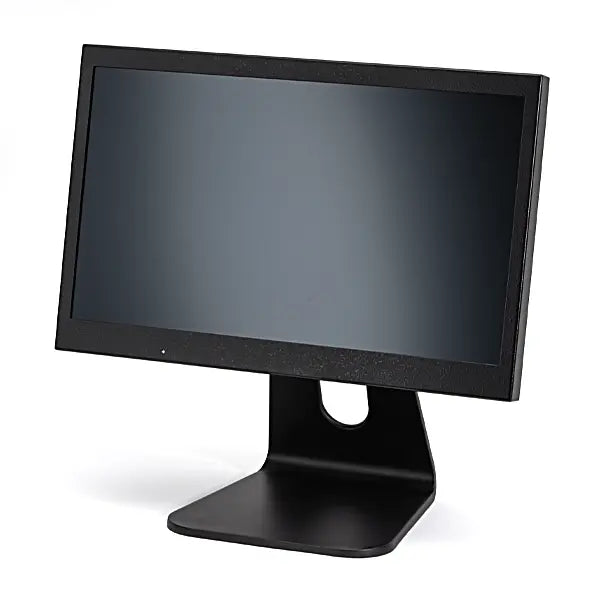

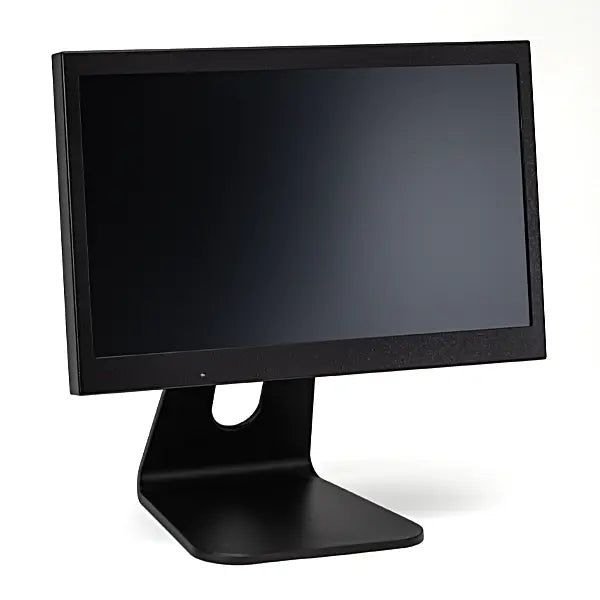

The monitor includes a compatible monitor stand and power supply with locking connector.
Specifications
|
LCD Panel |
15.6" a-Si TFT-LCD, LED Backlights |
|
Display Resolution |
1920 x 1080 (1080P/60 Full HD) |
|
Viewable Area |
13.55" (W) x 8.5" (H) (344.16 x 215.98 mm) |
|
Pixel Pitch |
0.17925 x 0.17925 mm (H x V) [141 PPI] |
|
Display Colors |
16.2 Million |
|
Aspect Ratio |
16:9 |
|
Brightness |
1,500 nits |
|
Contrast Ratio |
800:1 |
|
Viewing Angle |
170° (H) x 170° (V) |
|
Response Time |
13/12 ms (Typ.) (Tr/Td) |
|
Control |

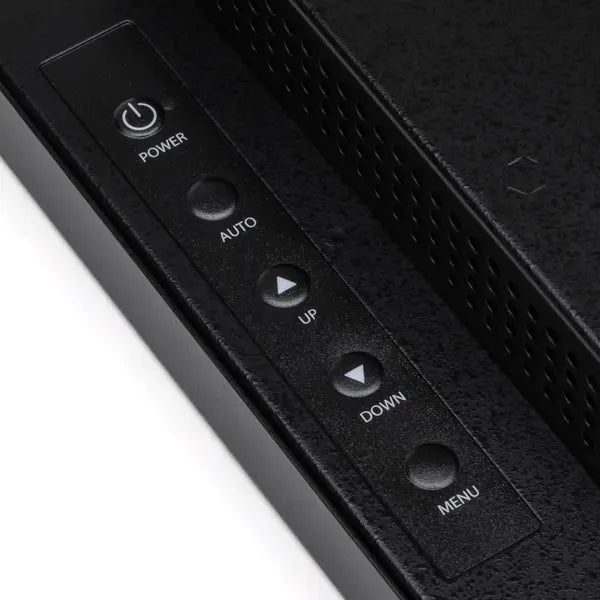

OSD (On-Screen Display) via Rear Panel Pushbuttons |
|
Video Inputs |

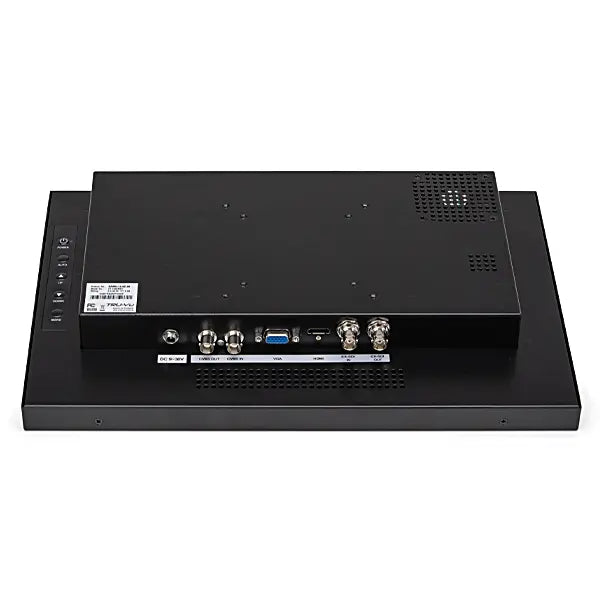

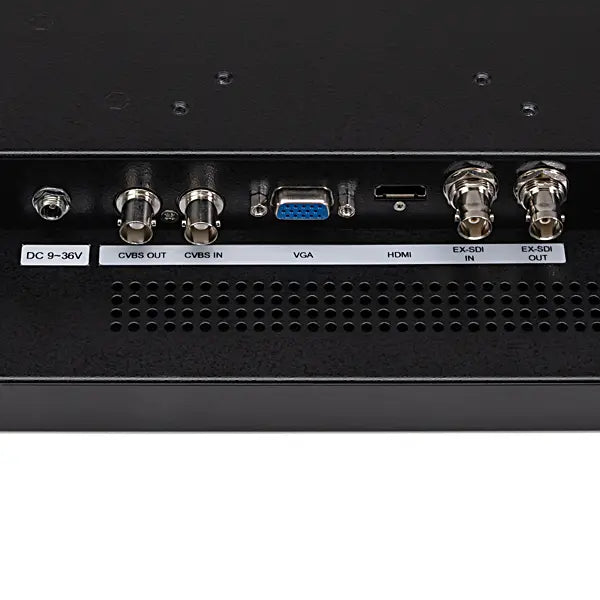

VGA, HDMI, HD-SDI (Loop-Thru), Composite (BNC Loop-Thru) |
|
Power Requirement |
9-36 VDC (2.5mm Plug) |
|
Enclosure |
Painted Steel |
|
Mounting |
75 x 75mm & 100 x 100mm Rear VESA Mount Holes (M4 x 6mm Screws) |
|
Operating Temperature |
-22° to 185° F (-30° to +85° C) |
|
Humidity |
5-90% RH |
|
Shock |
50 G (20 msec, 1/2 sine) |
|
Vibration |
1.5 G RMS, 10-200 Hz |
|
Dimensions |
14.52" (W) x 9.36" (H) x 2.07" (D) (368.8 x 237.7 x 51.5 mm) |
|
Warranty |
3 Years |
Specifications subject to change without notice.
Items Included
- EM12154 TRU-VU Monitor, SRMH-15.6Z-36

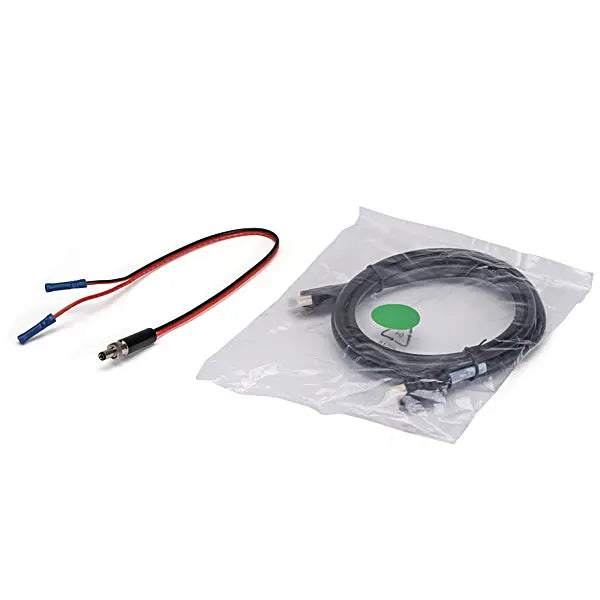

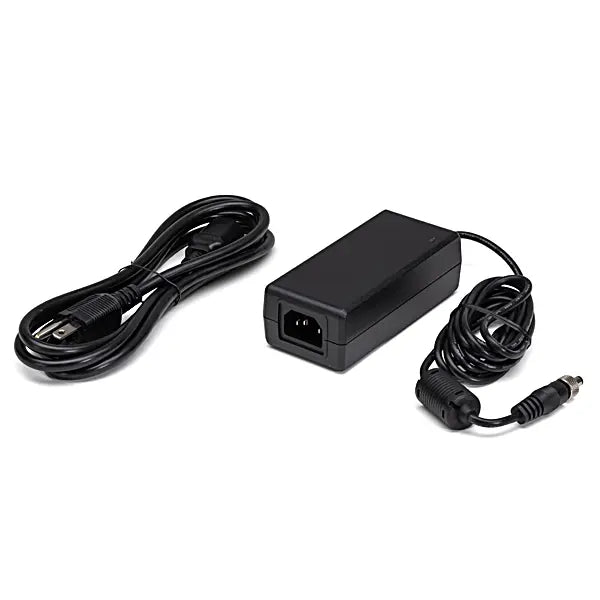

- EM12586 PS-12-LC: Power Supply w/ Locking Connector

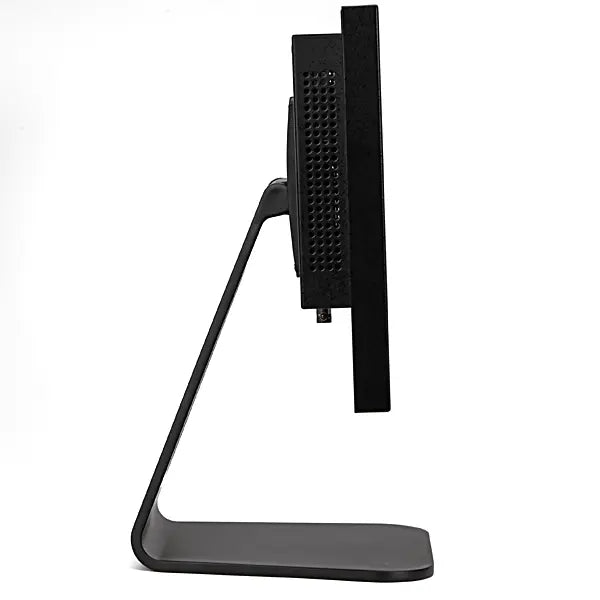

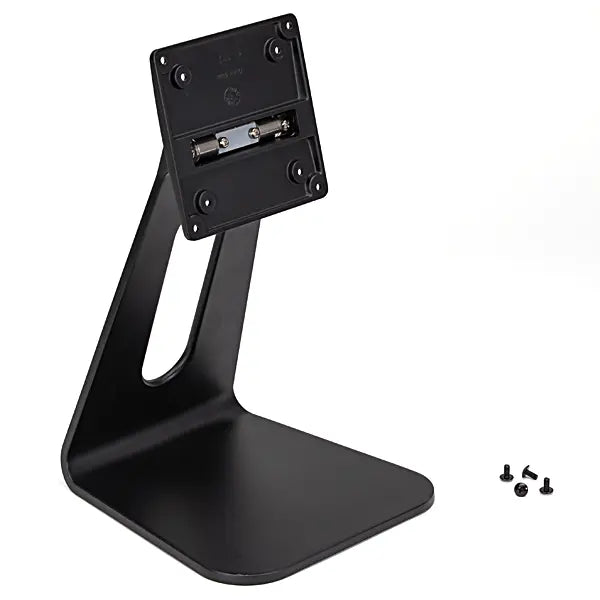

- EM12155 TRU-VU Monitor Stand, 15.6" SRMH-15.6Z-36 (VT270BASE)
