Twiga TV10 0090 3G/HD-SDI Premium Interface Board - BNC

Twiga Vendor Logo SKU: EM19057 MFG: TV10 0090 BNC

• 3G/HD-SDI video output via BNC
• Analog video outputs: CVBS, Y/C, YPbPr
• Full HD video resolution up to 1080p60
• Automatic LVDS & format camera recognition
• Serial communication TTL or RS232
• Power Supply 7 - 12 VDC

REQUIRES CABLE SET FOR OPERATION

Choose A Cable Set

Twiga

Description

Details

Twiga TV10 0090 3G/HD-SDI Premium Interface Board - BNC

The Twiga TV10 0090 3G/HD-SDI Premium Interface Board with BNC connection is ideal for any video broadcasting, defense, security, or transportation application. It combines a digital and analog video output in Full HD resolution, allowing the user to transmit up to 100 meters over coaxial cable.

High-Quality SDI Interface

The broadcast quality SDI interface allows video transmission over 100 meters through coaxial cable and up to 300 meters with equalization add-ons on the video receiver. The dual 3G-SDI and analog output reduce the boards needed, allowing for a less complicated vision system.

3G-SDI Core

The 3G-SDI premium TV10 0090 interface board is based on a Field Programmable Gate Array (FPGA), giving the board core complex imaging processing functionality. These can be embedded in real-time video streaming to allow calorimetry tests, measurements, reticules, contrast enhancement, ROI extraction, and OSD functions.

Add-on Connector for Custom Functionality

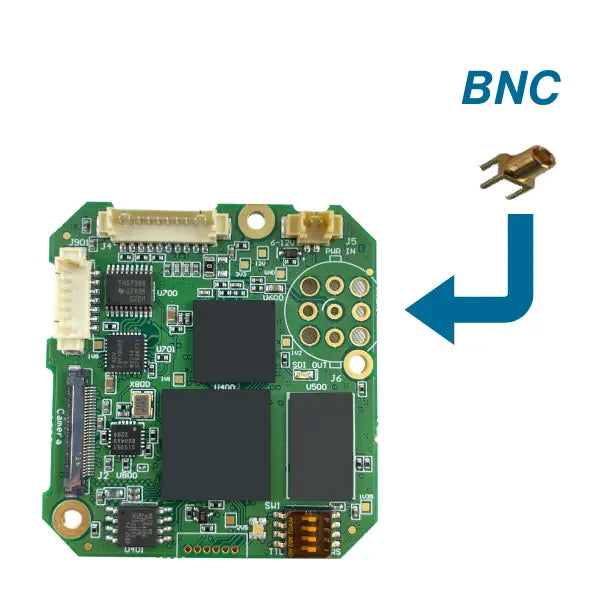

This specific board comes with an added BNC connector allowing a user to directly mount the Twiga TV10 0090 on the back of any LVDS/CVBS zoom block camera or connected to a custom-designed add-on board.

Specifications

Digital video output

3G-SDI SMPTE 424 M, HD-SDI 292 M

Analog video output

CVBS, YPbPr, Y/C - PAL/NTSC compliant

Video output standard configuration

DIP switches
Camera control VISCA - RS232 / TTL level (selectable via DIP switches)

Camera power supply

7 to 12 VDC

Power consumption

X W (including camera)

Operation temperature range

0°C to 60°C

Storage temperature range

-20°C to 60°C

Regulation

CE EMC compliant, PCB: UL 94 V0

Dimensions (mm)

48 (H) x 45 (W) x 13 (D)

Downloads

Twiga TV10 0090 3G/HD-SDI Premium Interface Board BNC Product Brief

Twiga TV10 0090 3G/HD-SDI Premium Interface Board BNC Technical Manual
